Gcsseriesthree Phase Low Pressure Draw out Type Switch Box
| Price: |
US $ 2000-3500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
| Prod Model: |
GCS |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Indoor |
| Effect: |
Transformer |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

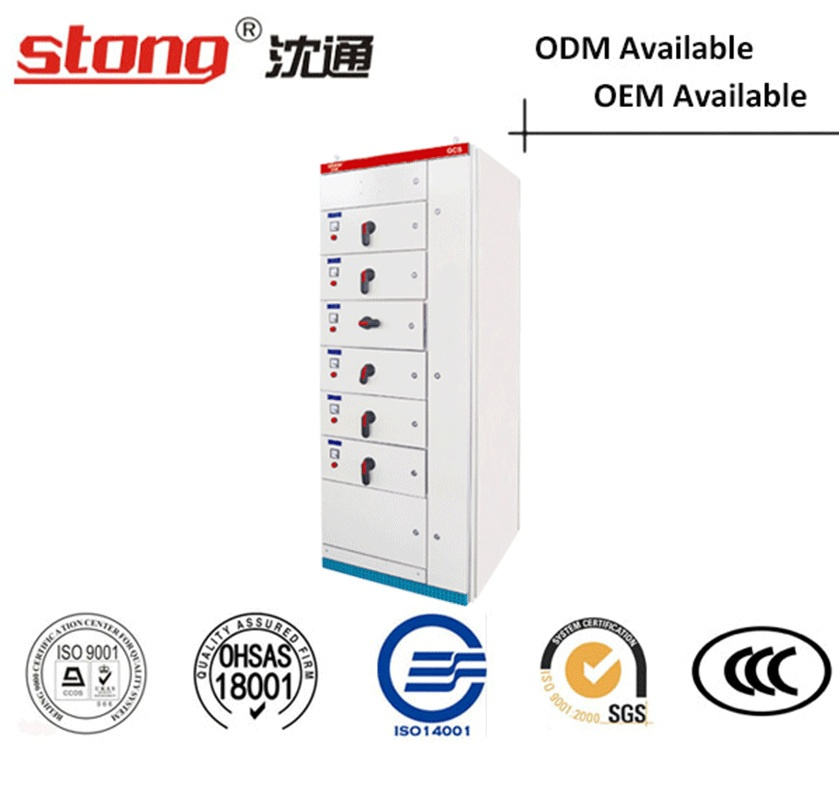

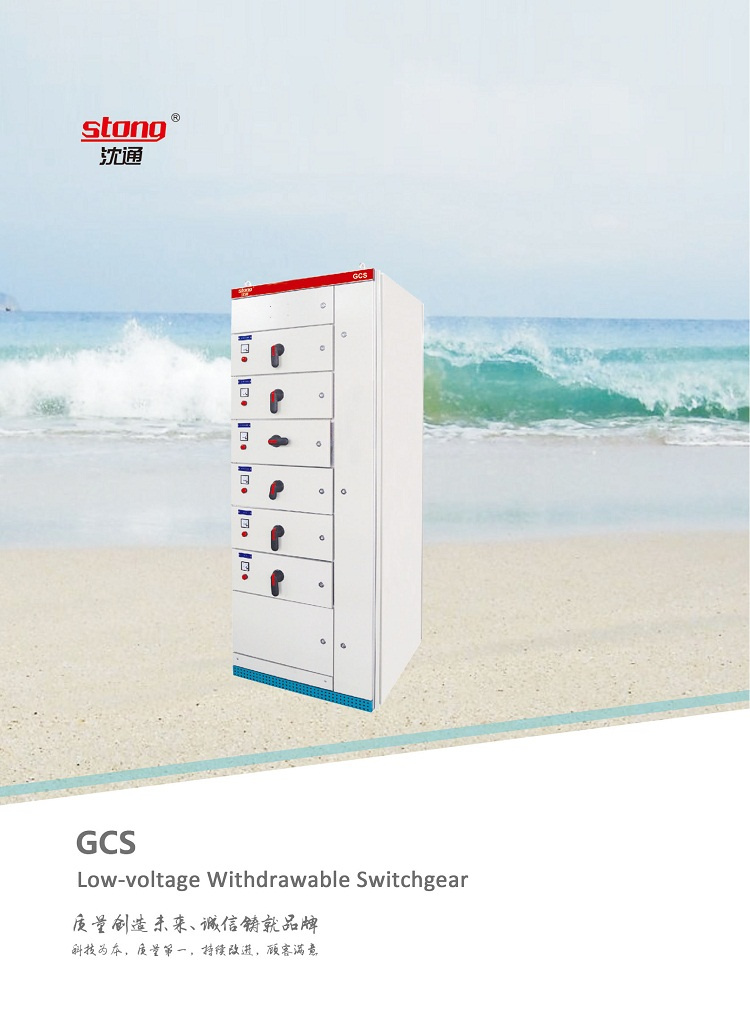

GCS
Low-voltage Withdrawable Switchgear

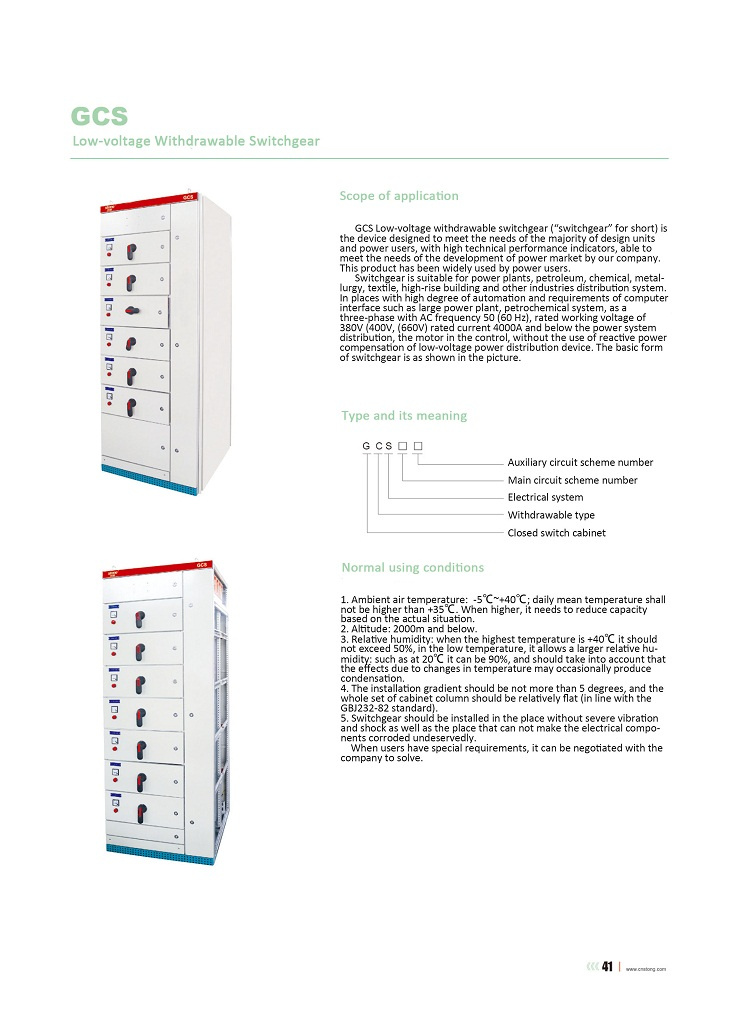

Scope of application
GCS Low-voltage withdrawable switchgear ("switchgear" for short) is the device designed to meet the needs of the majority of design units and power users, with high technical performance indicators, able to meet the needs of the development of power market by our company. This product has been widely used by power users.
Switchgear is suitable for power plants, petroleum, chemical, metallurgy, textile, high-rise building and other industries distribution system. In places with high degree of automation and requirements of computer interface such as large power plant, petrochemical system, as a three-phase with AC frequency 50 (60 Hz), rated working voltage of 380V (400V, (660V) rated current 4000A and below the power system distribution, the motor in the control, without the use of reactive power compensation of low-voltage power distribution device. The basic form of switchgear is as shown in the picture.
Type and its meaning
G C S G - Closed switch cabinet
C - Withdrawable type
S - Electrical system
- Main circuit scheme number
- Auxiliary circuit scheme number
Normal using conditions
Ambient air temperature: -5ºC~+40ºC; daily mean temperature shall not be higher than +35ºC. When higher, it needs to reduce capacity based on the actual situation.
Altitude: 2000m and below.
Relative humidity: when the highest temperature is +40ºC it should not exceed 50%, in the low temperature, it allows a larger relative humidity: such as at 20ºC it can be 90%, and should take into account that the effects due to changes in temperature may occasionally produce condensation.
The installation gradient should be not more than 5 degrees, and the whole set of cabinet column should be relatively flat (in line with the GBJ232-82 standard).
Switchgear should be installed in the place without severe vibration and shock as well as the place that can not make the electrical components corroded undeservedly.
When users have special requirements, it can be negotiated with the company to solve.

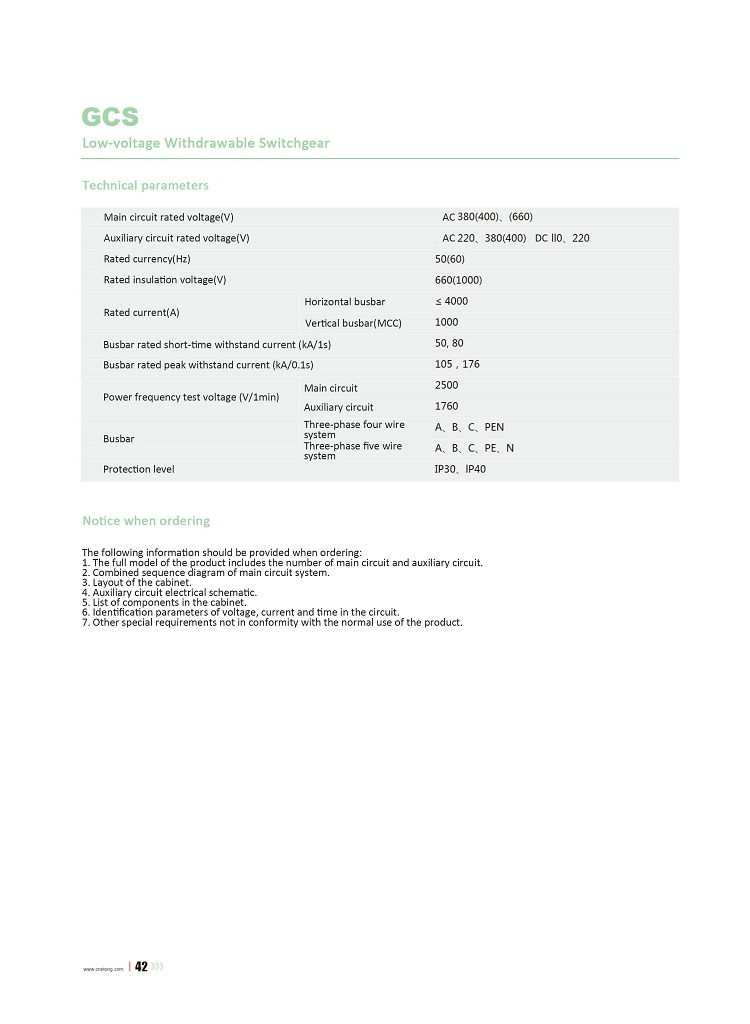

Main technical parameters
| Main circuit rated voltage(V) | AC380(400),(660) |
| Auxiliary circuit rated voltage(V) | AC220,380(400) DC110,220 |
| Rated currency(Hz) | 50(60) |
| Rated insulation voltage(V) | 660(1000) |
Rated current(A) | Horizontal busbar | ≤4000 |
| Vertical busbar(MCC) | 1000 |
| Busbar rated short-time withstand current (kA/1s) | 50,80 |
| Busbar rated peak withstand current (kA/0.1s) | 105,176 |
| Power frequency test voltage (V/1min) | Main circuit | 2500 |
| Auxiliary circuit | 1760 |
Busbar | Three-phase four wire system | A,B,C,PEN |
| Three-phase five wire system | A,B,C,PE,N |
| Protection level | IP30,IP40 |
| | | | |
Notice when ordering
The following information should be provided when ordering:
The full model of the product includes the number of main circuit and auxiliary circuit.
Combined sequence diagram of main circuit system.
Layout of the cabinet.
Auxiliary circuit electrical schematic.
List of components in the cabinet.
Identification parameters of voltage, current and time in the circuit.
Other special requirements not in conformity with the normal use of the product.
*Please Provide Us The Wiring Diagram for Our quotation for the switchgear*Please follow us on LinkedIn
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
