Gear 50A Rotary Switch Motor Control 75A Switch

Prod Model:	LW31
Max. Current:	75A
Max. Voltage:	690V
Specifications:	54*54,72*72,105*105
Rated Thermal Currentlth:	20;25;32;50;75A
Quality:	AAA
Protection Levvel:	IP65
Export Market:	World
Rotary Number:	Three Buttons
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	CE
Condition:	New

Product Description

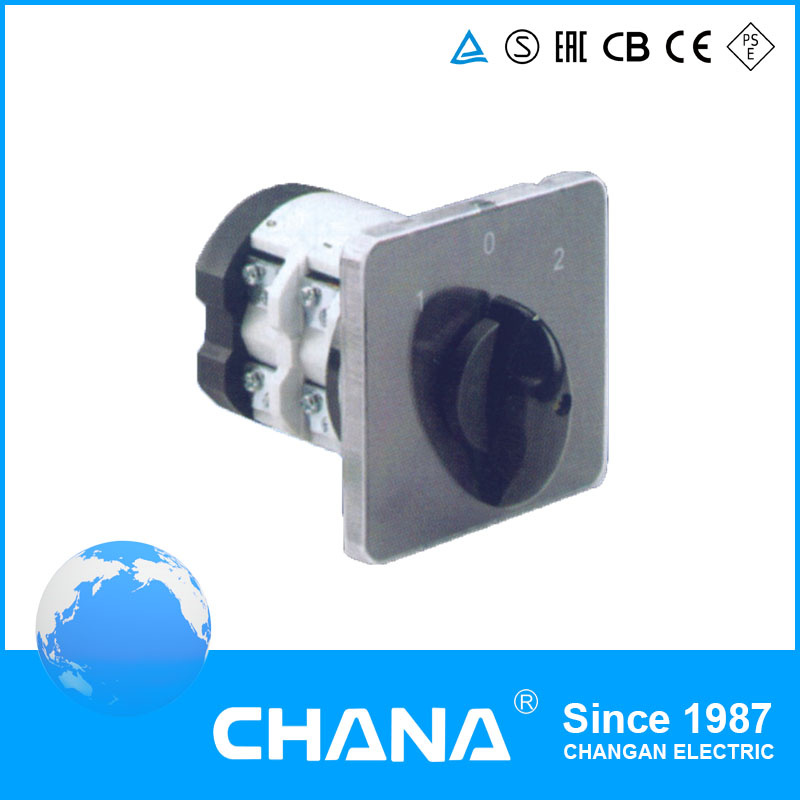

LW31 Rotary Switch

1. Description

Lw31 series Rotary Switches applied to switchgear and control of electric motors as well as to change over of electric circuits, it's a good substitution for other cam switches.

Mechanical life of rotary switch
Mechanical life without load: 0.3X10 times, operation frequency is 120 times/h.
Mechanical life with load: 0.6X10 times operation frequency is 120 times/h.


Description	LW31-20	LW31-25	LW31-32	LW31-50
Rated thermal current A	20	25	32	50
Rated working voltage Ue	110 220 440	110 220 440 690	110 220 440 690	110 220 440 690
AC-21A	20	25	32	50
AC-22A	16	20	32	40
DC-20	20	25	32	50
AC-23A	5   7.5	7.5  11  15	11 18.5  22	45  22  30
AC-3	4   5.5	5.5  7.5  11	7.5 15 18.5	11 18.5 22
AC-4	2.2   3	2.2  4	3  5.5	5.5  7.5
DC-23	0.77 1.2	2  2.2	2  2.2	3   6

2. Feature Product



3. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

4. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
