| Prod Model: |
GS-DC030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Rating: |
3000W |
| Power Dynamic Range: |
300-3000W |
| Beam Mode: |
Fundamental Mode |
| Beam Diameter: |
20mm-25mm |
| Super Intensity Pulse: |
8-5000Hz |
| Laser Gas: |
He,N2,CO2 |
| Max Power Consumption: |
45kVA |
Product Description

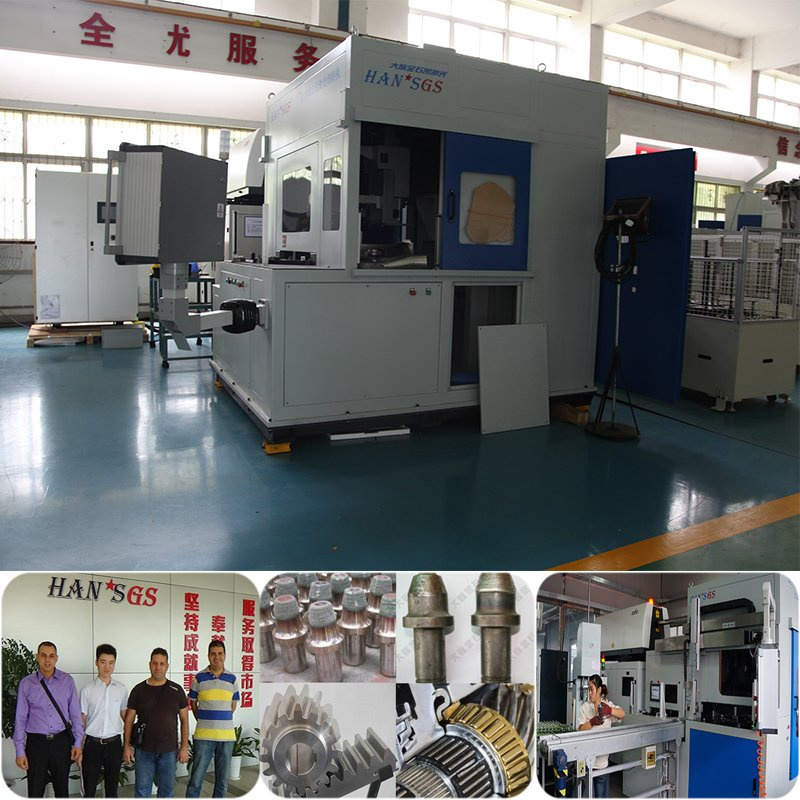

Gear laser welding complete sets of equipment
HANSGS-DC030 laser welding & cutting equipment is a large integrated equipment with light, machine, electricity, control technology, refrigeration and material processing technology, mainly consists of laser source, light system, light path switching system, cooling system, machine bed, gas supply system, bed control system, etc. The device can be used for welding and cutting stainless steel, titanium, zirconium alloys, nickel base alloy, aluminum alloy materials, which can realize the tablet docking, Angle joint, lap and shaft parts, tubular parts of annular welding, etc.
DC030 laser parameters | Power | Power rating | 3000W |
| Power dynamic range | 300-3000W(Adjustable) |
| Power stabilit | <±2% |
| Light beam | Beam mode | Fundamental mode (00 mode) |
| Divergence angle | <0.15 mrad (Full-shaped) |
| Beam diameter | 20mm-25mm( <10m) |
| Directivity stability <0.2 mrad |
| Polarized light | 45º or vertical polarization |
| Pulse | Super intensity pulse | 8-5000Hz |
| Pulse width | 26μs-Continuous Wave |
| oblique wave generator | 8-5000Hz |
| Gas | Laser gas | He,N2,CO2 |
| Laser gas consumption | Total≤0.2L/per hour |
| Electric quantity | Max Power consumption | 45KVA(380V,50Hz) |
| Cooling liquid | Heat load | 39KW(environmental temp 40ºC) |
| Coolant temperature | 20ºC |
| Coolant temperature stability | Max±1ºC |
| Coolant flow | Min 42L/per minute |
| Inlet pressure | Min 5.7bar, Max 10bar |
| In and out water pressure | 5bar(When the Min flow) |
| Environment | Temp | Environmental temp 0-40ºC |
| Relative humidity | <85% |
Cooling system:Adopting DC030 matched LSJR-500BX cooling system :
| Model | LSJR-500BX(G) |
| Rated refrigerating | 50KW(Based on the ring temperature 35 ºC, water temperature 25 ºC) |
| Power system | 3P~380V/50Hz |
| Rated input power/current | 22.5KW /43.5A |
| Water flow range | 10m3/h |
| Water pressure adjusting range | 6bar |
| Water tank volume | 270L |
| Refrigerant | R22 |
| Default set | (Set temp 28 ºC, temp control precision ±1ºC)
(High temperature alarm temperature 35 ºC, low temperature alarm temperature 5 ºC) |
| Cooling medium | Distilled water, purified water |
| Overall dimensions(W*H*D) | 890×1820×1500(Unit: mm) |
| Operating environment | Environmental temp≤43ºC, Water inlet temp≤45ºC |
Gas supply systemIn order to guarantee the effect of laser welding and cutting, laser cutting and welding are configured with the independent gas supply system.Specific as follows:1 Nitrogen gas path (Cutting):Nitrogen pressure : 8-15 barNitrogen consumption:
2.5 m³/hNitrogen quality: 5.0-99.95% purity2 Helium gas path (soldering) Helium pressure: 2-5 barHelium consumption: 15 L/per minuteHelium quality:
3.5-99.95% purity

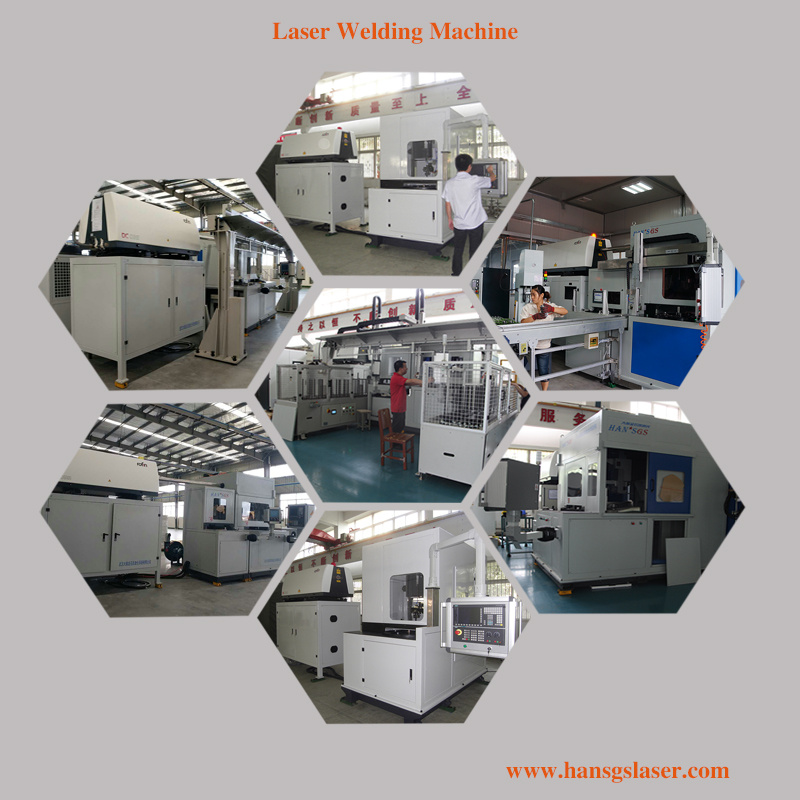

Laser welding application

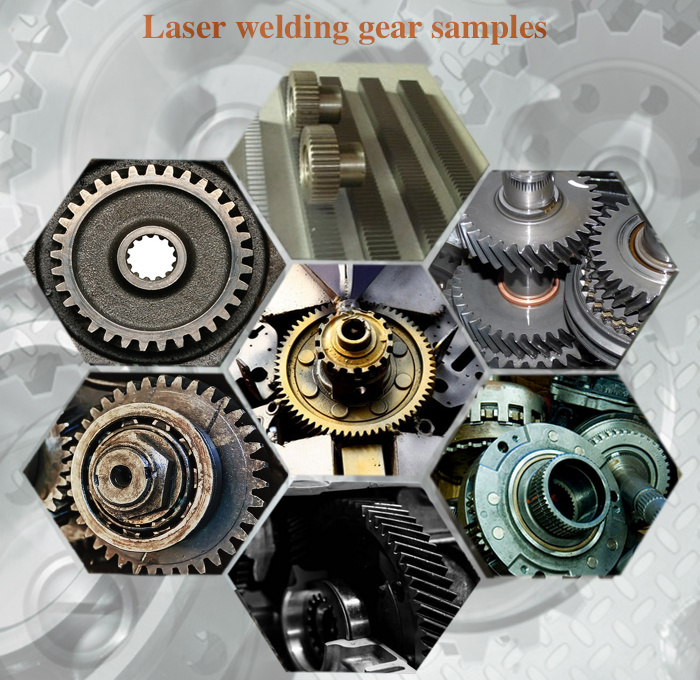

Laser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission,flying wheel,airbag,rock arm,muffler, silicon oil shock absorber, hydraulic torque converter, wood saw blade, diamond saw blade, radiator of water.
