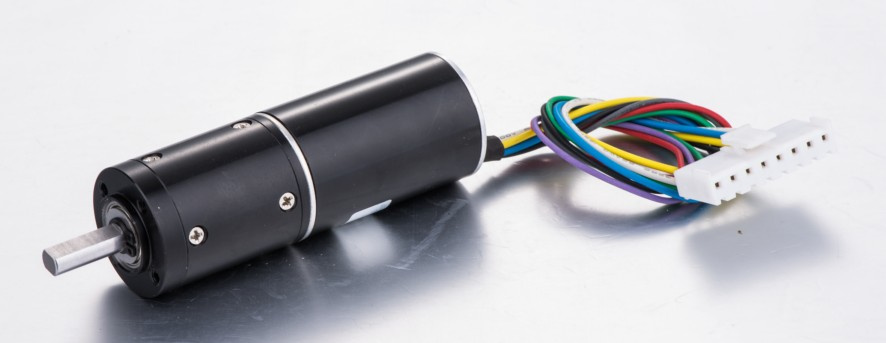

Gear Ratio 12 Volt DC Planetary Gear Motor Brushless 28mm

Prod Model:	WS2845PGZS1260
Efficiency:	Ie 3
Planetary Gearbox Gear Material:	Steel
Motor Housing:	Aluminum
Protect Feature:	Drip-Proof
Voltage:	12V 24V 36V 48V
Torque:	0.048~6 N.M
Power:	Under 50W
MOQ:	100PCS
Speed:	4000 /6000 Rpm
Bearing:	NMB Ball Bearing
Application:	Robet
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Other
Type:	Other
Certification:	Ce , RoHS

Product Description

Product Introduction:

NMB ball bearing guarantee long life;
Hobbing process for all steal Gears .
Low Noise and big torque.
Can Choose wonsmart External driver controller.
External driver controller can change speed by PWM or 0~5v signal and change shaft running direction from CW to CCW.
Mainly used onto medical equipment, conveyor, air cushion machine and many other auto machines;

Gearbox Motor Performance:


Part  No	Gear Ratio		1:3.7	1:5	1:14	1:19	1:27	1:51	1:71	1:100	1:139	1:189	1:264	1:369	1:516	1:720
WS2845PGZS24 WS2845PGZS12   (6000rpm)	rated torque	N.m	0.048	0.065	0.14	0.2	0.28	0.48	0.67	0.96	1.32	1.76	2.43	3.43	4.38	5.76
	Rated Speed	rpm	1216	900	320	237	167	88	63	45	32	24	17	12	9	6

 Motor Performance:


Part No	Noload Speed (r/min)	Noload Current (A)	Rated Torque (N.m)	Rated Speed (r/min)	Rated Current (A)	Rated Output power (W)	Rated Input Power (W)
WS2845-24-60-V200	6000	0.2	0.015	4500	0.48	7	11.5
WS2845-12-60-V200	6000	0.4	0.015	4500	0.95	7	11.5

Gearbox performance:


Gear Ratio	Lenght (mm)	Weight (g)	Stage
1:37~5	30		1
1:14~1:27	38		2
1:51~1:139	45		3
1:189~1:720	52		4


Packaging & Shipping

Item:WS2845PG
Unit size:  Diameter:28mm
Qty per Carton: 40pcs;
Gross WT: 8.0 KGS
Net WT:  7.6KGS
Size:40X31X30CM

Payment&Delivery

Sample Payment preference:  paypal /  bank account;
Sample delivery time:  3-5 days;
Sample delivery method: Fedex, UPS, DHL;
Sample delivery cost: 20-45 USD for 1 kg;
Mass Production payment:  Bank account;
Mass production delivery time: 15-30 days;
Mass production delivery method:  Fedex, UPS, DHL, Ocean shipping;

Company Information

Ningbo WONSMART Co., Ltd. is a manufacturer focused on BLDC Motor in Ningbo city, China. Covering an area of 2000 square meters, we were founded by a group of men who are professional in this field. We mainly design, manufacture, and sell small DC brushless motors.
Our  CEO is good at "Western" &"Chinese style" management, regards "people" as the most important factor in the development of our enterprise, and believes that details decide the success or lose.We guarantees you that you only need to input an order, and it will output quality products.

Our Services

We are able to provide you SAMPLES and CUSTOMIZATION SERVICE. If you have any special requirements or demands,Please feel free to contact us. We are glad to offer you our best service!
