| Prod Model: |
86HSG78-5504 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
86mm*86mm |
| Current: |
5.5A |
| Resistance: |
0.45ohm |
| Inductance: |
4.0mh |
| Holding Torque: |
45kg.Cm |
| Motor Body Length: |
78mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Driver |
| Application: |
Automatic Machine |
| Brand: |
Jss |
| Certification: |
CE |
Product Description

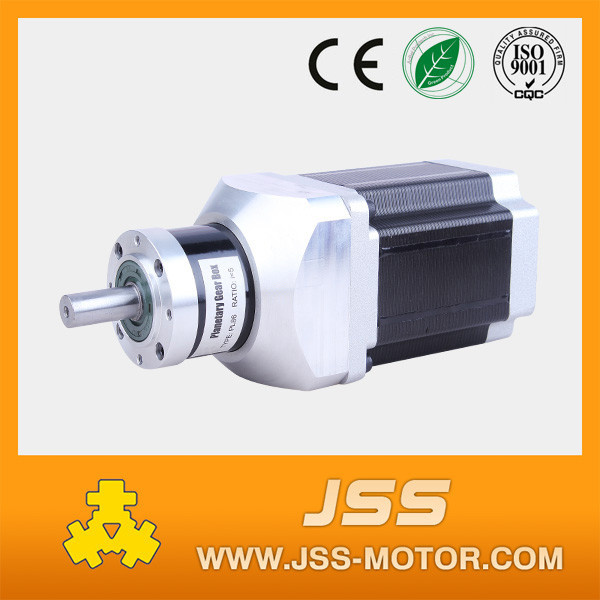

Geared NEMA 34 Reducer Stepper Motor with gearbox
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
Product Description:
Technique Parameter
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step,no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80°CMax.(rated current,2 phase on) |
Ambient Temperature |
-10°C-+50°C |
Insulation Resistance |
100MΩMin. 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.06Max.(450 g-load) |
Shaft Axial Play |
0.08Max.(450 g-load) |

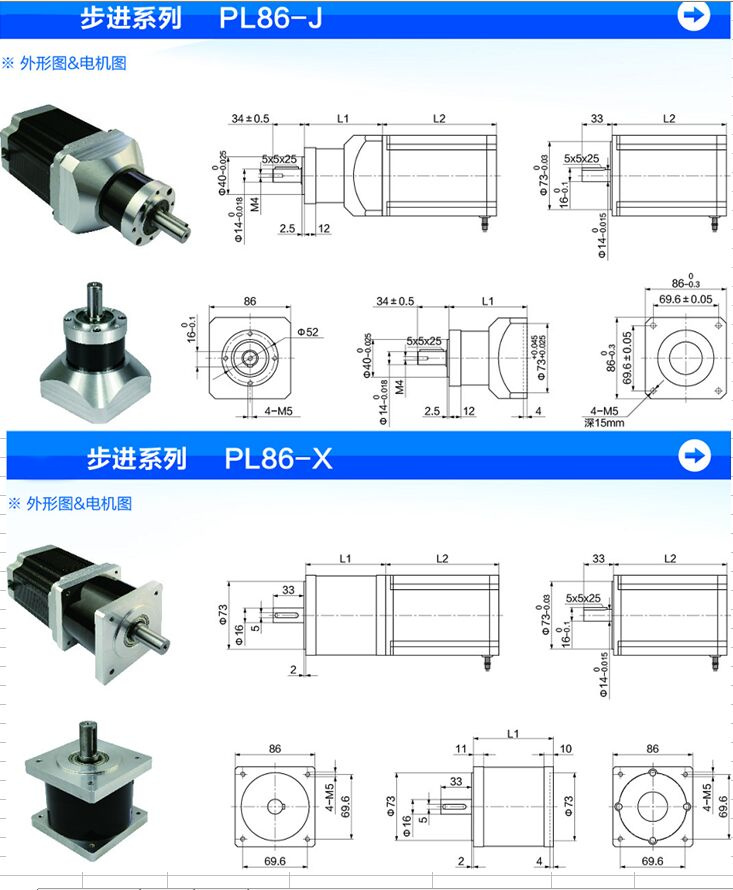

gearbox for nema 34 stepper motor |
| TYPE | gear ratio first grade | gear ratio second grade |
| PL86-J | 4;5;7;9;10 | 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 |
| PL86-X | 4;5;7;9;10 | 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100
|
86HS Motor Name List(High Torque)
Type | Phase No. | Step Angle | Current
(A) | Resistance
(ohm±10%) | Inductance
(mH±20%) | Holding Torque
(kg.cm) | Wires No. | Weight
(kg) | Body Length
(mm) |
| 86HS78-2004 | 2 | 1.8° | 2 | 1.2 | 10 | 28 | 4 | 1.7 | 78 |
| 86HS78-3004A | 2 | 1.8° | 3 | 2 | 16 | 35 | 4 | 1.7 | 78 |
| 86HS78-3504(4004) | 2 | 1.8° | 3.5/4.0 | 0.4 | 3 | 30 | 4 | 1.7 | 78 |
| 86HS78-4206 | 3 | 1.8° | 4.2 | 0.9 | 4 | 45 | 6 | 1.7 | 78 |
| 86HS78-5504 | 2 | 1.8° | 5.5 | 0.45 | 4 | 45 | 4 | 1.7 | 78 |
| 86HS78-5608 | 4 | 1.8° | 5.6 | 0.9 | 4 | 45 | 8 | 1.7 | 78 |
| 86HS82-4504 | 2 | 1.8° | 4.5 | 0.33 | 3 | 35 | 4 | 2.1 | 82 |
| 86HS82-5608 | 4 | 1.8° | 4.5 | 0.6 | 3 | 35 | 8 | 2.1 | 82 |
| 86HS100-5004 | 2 | 1.8° | 5 | 0.5 | 4 | 52 | 4 | 3 | 100 |
| 86HS100-5008 | 4 | 1.8° | 5 | 1 | 4 | 50 | 8 | 3 | 100 |
| 86HS118-2004 | 2 | 1.8° | 2 | 1.8 | 14 | 50 | 4 | 3.8 | 118 |
| 86HS118-4006 | 3 | 1.8° | 4 | 1.1 | 6 | 50 | 6 | 3.8 | 118 |
| 86HS118-4208 | 4 | 1.8° | 4 | 0.9 | 6 | 60 | 8 | 3.8 | 118 |
| 86HS118-5004 | 2 | 1.8° | 5 | 0.6 | 2.8 | 60 | 4 | 3.8 | 118 |
| 86HS118-6004 | 2 | 1.8° | 5.0/6.0 | 0.55 | 6 | 85 | 4 | 3.8 | 118 |
| 86HS118-6008 | 4 | 1.8° | 6 | 1.1 | 6 | 85 | 8 | 3.8 | 118 |
| 86HS118-7004 | 2 | 1.8° | 7 | 0.35 | 4 | 85 | 4 | 3.8 | 118 |
| 86HS128-5608 | 4 | 1.8° | 5.6 | 1 | 8.5 | 75 | 8 | 3.8 | 128 |
| 86HS156-5004 | 2 | 1.8° | 5 | 0.5 | 5.5 | 90 | 4 | 5.4 | 156 |
| 86HS156-5504 | 2 | 1.8° | 5.5/6.2 | 0.7 | 9 | 120 | 4 | 5.4 | 156 |
| 86HS156-5608 | 4 | 1.8° | 5.6 | 1.4 | 9 | 85 | 8 | 5.4 | 156 |
