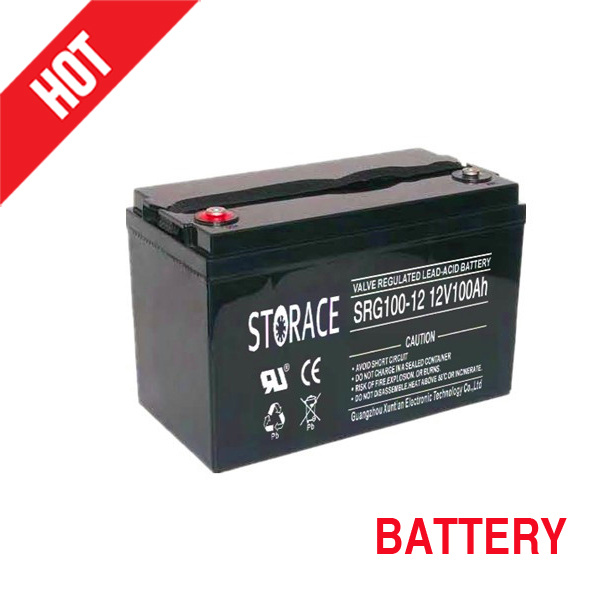

Gel Battery 12V 100ah Backup Systems Battery

Prod Model:	SRG100-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	331*173*233 Mm
Color:	Black
Cells:	6
Sealing:	Glue Sealing
Terminal Type:	Copper
Separator:	AGM
Battery Case:	ABS
Plate:	Flat Plate
Accessory:	Screws
Customs Code:	8507200000
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

Gel battery 12V 100ah backup systems battery(SRG100-12)

Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications. Such as broadband, PVs etc through up-to-date gel technologies. Our gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application

UPS, Broadband, Electric powered vehicles, Electric powered toys, Vacuum cleaners, Medical Equipments, Goof cars and buggies, Wheel chairs, PVs, solar systems, control systems, power systems, wind energy systems, telecommunication /communication systems & etc.

Characteristics

· Gel condition: The effect of sealed reaction is over 99.9%.
· Minor self-discharge.
· Low rate of loss of coolant.
· Long service life.
· Good deep charge cycle performance.
· Good over-discharging recovery performance.
· Widely working environment.

Data sheet

Capacity                                   77°F(25ºC)		100 hours rate(1.2A 11.1V)				120Ah
		20 hours rate ( 5.3A 10.8V)				106Ah
		10 hours rate(10A 10.8V)				100Ah
		1 hour rate(68A 9.6V)				68Ah
Internal Resistance		Full charged battery 77°F(25ºC):8.5mΩ
Operating Temperature Range		Discharge:-20 to 60 ºC
		Charge:-10 to 60 ºC
		Storage:-20 to 60 ºC
Self-Discharge
3% of capacity declined per month at 20ºC(average)
Max discharge current77°F(25ºC):800A(5S)
Charge                           (Constant Voltage)		Float:13.38 to 13.68V/77°F(25ºC)
		Cycle:14.28 to 14.52V/77°F(25ºC)
		Max Current:25A
