| Prod Model: |
DC Series |
| Size: |
2V/4V/6V/12V DC Voltage |
| Lifetime: |
5-7years |
| Voltage: |
12V,2V,6V |
| Color: |
Black or White |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |

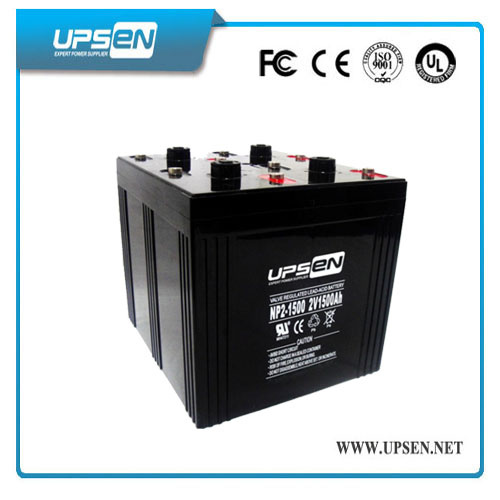

Product Description
Gel battery for Portable electric appliances and mining systemKey Features High Reliability and Quality
Good deep discharge cycle capability
Excellent Recovery from Deep Discharge
Longer Service Life
Living Up to Prevailing Standards
Low self-discharge: lower than 3% of rated capacity per month under normal operating temperature
ABS case (can be made with flame retardant V0)
No memory effect after repetitious usage or discharges
Maintenance-free operation
Sealed construction and leak proof
Safety valve regulated system
Operating in any position
The operating ambient temperature -40ºC to +65ºC
Applications Solar/Wind Power System
Telephone switchboard, electric equipments, medical equipments, instruments, and meters
Computer, uninterrupted power source (UPS)
Power transmission and transformer station, switch control, and accident lighting
Fire fighting, safety device, and alarm monitoring
Aviation, spaceflight, and power storage
Automatic office system
Radio communication system
Emergency lighting and car/ship starting system
Portable electric appliances and mining system
Traffic and navigation signal lamp
Golf Car, wheelchair, electric bike, electric car etc
Technical Specification| Model | Nominal | Capacity | External Dimension | Weight | Terminal |
| Voltage | (Ah) | Length | Width | Height | Total Height | Approx | Type |
| (V) | 10Hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound | |
| GL12310 | 12 | 31 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.69 | 11 | 24.31 | T64/T16 |
| GL12400 | 12 | 40 | 196 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | 14 | 30.94 | T9/T16 |
| GL12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.13 | 17.5 | 38.55 | T9/T16 |
| GL12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | 23 | 50.8 | T9/T16 |
| GL12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.01 | 24 | 53 | T33B/T16 |
| GL12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | 26 | 57.4 | T33B/T16 |
| GL12850 | 12 | 85 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | 29 | 64.1 | T10B/T16 |
| GL12950 | 12 | 95 | 394 | 15.51 | 109 | 4.29 | 285 | 11.22 | 285 | 11.2 | 34 | 74.96 | T46 |
| GL12950(II) | 12 | 95 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.41 | 33 | 72.75 | T46 |
| GL121000 | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.25 | 32 | 71 | T10,T16 |
| GL121000(II) | 12 | 100 | 330 | 12.99 | 173 | 6.81 | 214 | 8.43 | 219 | 8.62 | 32 | 70.4 | T16 |
| GL121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | 39.5 | 87.3 | T11D/T16 |
| GL121340 | 12 | 134 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.1 | 42.5 | 93.7 | T19 |
| GL121350 | 12 | 135 | 484 | 19.06 | 177 | 6.97 | 241 | 9.49 | 241 | 9.49 | 46 | 101.4 | T12/T50 |
| GL121500 | 12 | 150 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 49 | 108 | T12/T50 |
| GL121500(II) | 12 | 150 | 551 | 21.69 | 109 | 4.29 | 228 | 8.98 | 228 | 8.98 | 51 | 112.4 | T46 |
| GL121550 | 12 | 155 | 547 | 21.54 | 125 | 4.92 | 317 | 12.48 | 317 | 12.5 | 56 | 123.5 | T46 |
| GL121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 53 | 117 | T11/T60 |
| GL121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 57 | 126 | T11/T60 |
| GL122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 67 | 148 | T11/T19 |
| GL122300 | 12 | 230 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.44 | 76 | 168 | T12/T19 |
| GL122500 | 12 | 250 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 241 | 9.29 | 79 | 175 | T12/T19 |
| GL61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 246 | 9.69 | 251 | 9.89 | 30 | 66.1 | T19 |
| GL62000 | 6 | 200 | 323 | 12.7 | 178 | 7.01 | 224 | 8.81 | 248 | 9.77 | 31 | 38.3 | T19 |
| GL62200 | 6 | 220 | 243 | 9.57 | 188 | 7.41 | 275 | 10.83 | 275 | 10.8 | 34.5 | 75.9 | T19 |
| GL2500 | 2 | 50 | 160 | 6.3 | 50 | 1.97 | 166 | 6.54 | 176 | 6.93 | 3.2 | 7.1 | T16 |
| GL21000 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | 6.4 | 14.11 | T16 |
| GL21500 | 2 | 150 | 172 | 6.8 | 102 | 4.02 | 206 | 8.11 | 227 | 8.92 | 9 | 19.8 | T94 |
| GL22000 | 2 | 200 | 172 | 6.8 | 111 | 4.37 | 329 | 12.96 | 365 | 14.4 | 14 | 30.9 | T20 |
| GL23000 | 2 | 300 | 171 | 6.7 | 151 | 5.94 | 330 | 13 | 365 | 14.4 | 20.5 | 45.2 | T20 |
| GL24000 | 2 | 400 | 211 | 8.3 | 176 | 6.93 | 330 | 13 | 366 | 14.4 | 27.5 | 60.6 | T20 |
| GL25000 | 2 | 500 | 242 | 9.5 | 172 | 6.8 | 331 | 13 | 356 | 14 | 33.5 | 73.9 | T20 |
| GL26000 | 2 | 600 | 301 | 11.9 | 175 | 6.89 | 331 | 13 | 356 | 14 | 41 | 90.4 | T20 |
| GL28000 | 2 | 800 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | 55 | 121.3 | T20 |
| GL210000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14 | 66.5 | 146.6 | T20 |
| GL215000 | 2 | 1500 | 401 | 15.8 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 103.5 | 228.2 | T20 |
| GL220000 | 2 | 2000 | 491 | 19.3 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 136 | 299.8 | T20 |
| GL230000 | 2 | 3000 | 712 | 28 | 353 | 13.9 | 343 | 13.5 | 369 | 14.5 | 203.5 | 448.6 | T20 |
| *Specification are subject to change without prior notice |
UPSEN Competitive Advantages1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products

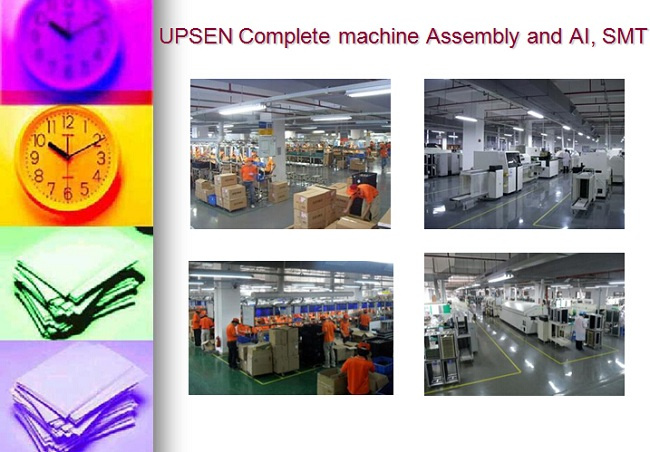

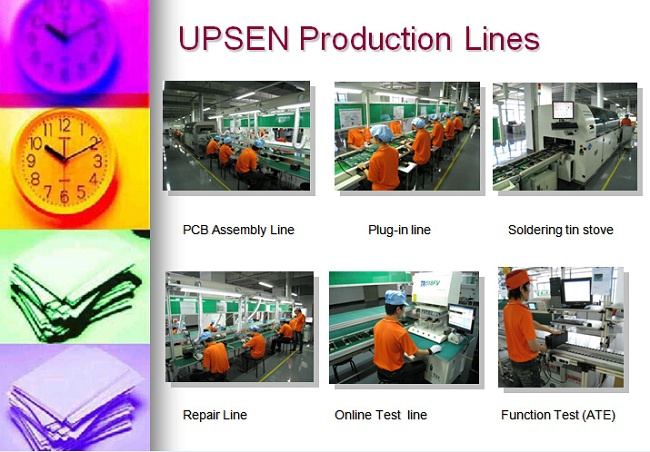

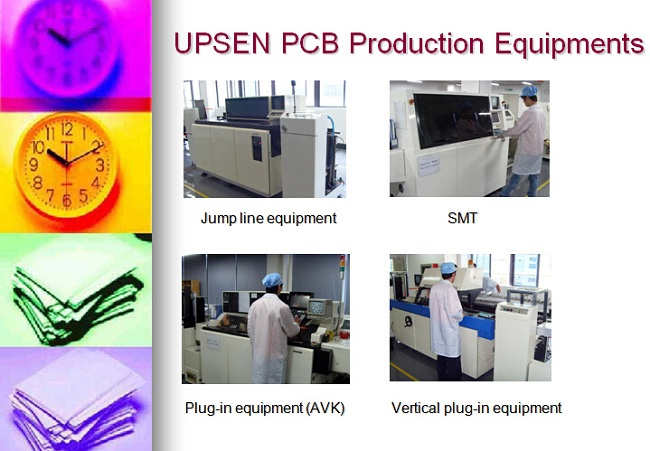

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
