| Prod Model: |
Gel Battery CG12-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gel Battery |
| Size: |
331*173*213mm |
| Voltage: |
Gel Battery 12V |
| Capacity: |
100ah |
| Weight: |
30kg Gel Battery |
| Warranty: |
3 Years Gel Battery |
| Expected Cycle Time: |
15-20years |
| Delivery Time: |
7days |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Type: |
Gel Battery |
| Shape: |
Gel |
Product Description

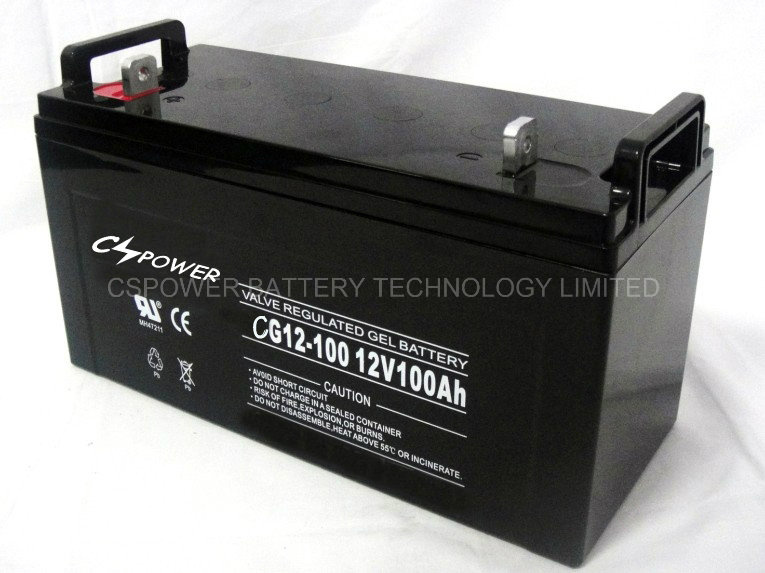

Gel Battery Long Cycle Life Battery for Solar System-12V100Ah Detailed Product Description
CSPOWER GEL battery is manufactured with special sheet separator and colloidal or foamed silica.
The Gel battery use silica gel to immobilize the electrolyte inside the battery.
The proven silica gel technology improves battery cycle life and performance at extremely cold ambient temperatures.
The deep discharge cycles of Gel Battery is increased by 50% as compared with the AGM battery.
Solar Gel Battery with 15years Life 12V100ah Characteristics
1. Sealed free maintenance deep cycle Gel battery 12V200Ah 250Ah 300Ah
2. Solar GEL battery
3. OEM/ODM free charge
4. Warranty 3years free replacement
GEL Battery Long Cycle Life Battery 12V100Ah 3years warranty Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
12V100ah Solar Accumulator Solar Gel Battery Applicition
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems
Notice
Don't near the hot source and don't under the sunshine.
Don't charge in the sealed container.
No short circuit. It should be addition charge if you don't use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don't store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don't work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don't put the battery in the fire, or it will explode.
Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
Don't clean the battery by using the organic solution. (e. G. Petrol)
Why choose us:
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CG2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
