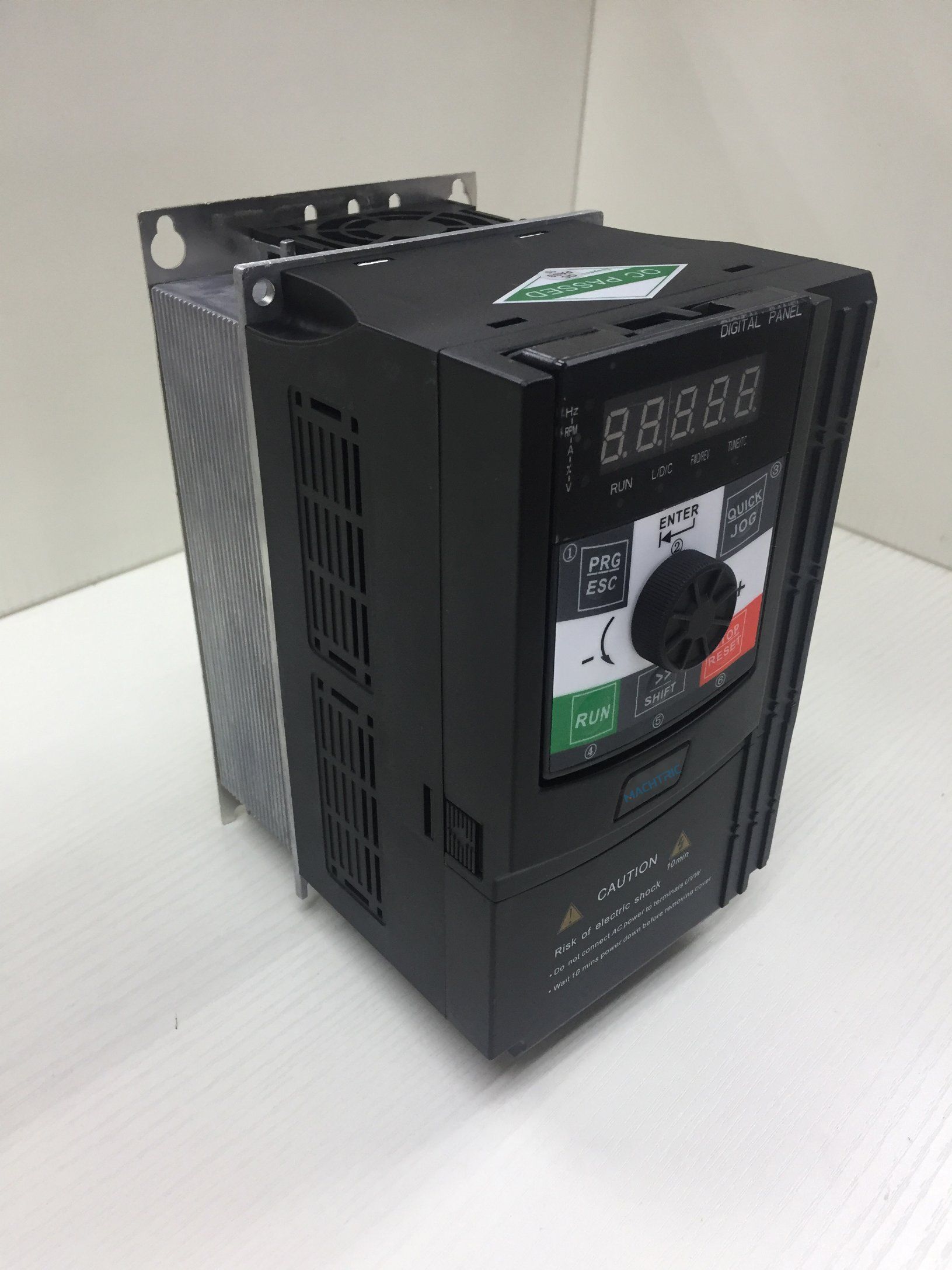

General Purpose Large Torque Adjustable Frequency Drives AC Frequency Inverter
| Price: |
US $ 89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S1100VG |
| Item Name: |
Large Torque Adjustable Frequency Drives |
| Color: |
Black |
| Protection: |
Voltage |
| Efficiency: |
85% |
| Warranty: |
12 Months |
| Display: |
LED+LCD |
| Pid Control: |
Built-in |
| Interface RS-485: |
Standard RS485 Communication Function (Modbus) |
| Altitude: |
Lower Than 1000m |
| Output Waveform: |
Pure Sine Wave Output |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
General Purpose Large Torque Adjustable Frequency Drives AC Frequency Inverter
1.Product Specification:
| Item | Specifications |
| | Maximum frequency | 400Hz |
| | Input frequency | Digital setting: 0.01Hz |
| | resolution | Analog setting: maximum frequency ×0.1% |
| | Control mode | V/F control |
| | Vector flux control 1 |
| | Vector flux control 2 |
| | Startup torque | G modle: 0.5Hz/180%(Open loop Vector flux control) |
| | P model: 0.5Hz/120%(Open loop Vector flux control) |
| | Speed adjustment | 1:200(Open loop Vector flux control) |
| | range |
| | Speed stabilization | Open loop Vector flux control:≤±0.5% |
| | precision |
| Basic function | Speed stabilization | Open loop Vector flux control:≤±0.3% |
| | precision |
| | Torque response | ≤40ms(Open magnetic flux vector control) |
| | Overload capacity | G model: 150% rated current 60s; 180% rated current 3s |
| | P model: 130% rated current 60s; 150% rated current 3s |
| | Torque hoist | Automatic torque hoist; manual torque hoist 0.1% to |
| | 30.00% |
| | V/F curve | Linear V/F, Multi-point V/F, and Square V/F |
| | Speed-up and | Straight line or S curve speed-up and speed-down |
| | Speed-down curve | mode;Two kinds of speed-up and speed-down |
| | | time;Speed-up and speed-down time ranges between 0.0s |
| | | to 3000.0min. |
| | DC brake | DC brake frequency:0.00Hz to maximum frequency; brake time:0.0s to 36.0s,and brake current value: 0.0% to 100.0%. |
| | Jog control | Jog frequency range:0.00Hz to 50.00Hz;jog |
| | speed-up/speed-down time: 0.0s to 3000.0s. |
| | Simple PLC and MS speed running | It can realize a maximum of 16 segments speed running |
| | via the built-in PLC or control terminal. |
| | Built-in PID | It is easy to realize process-controlled close loop control |
| | system. |
| | (AVR)Auto | It can keep constant output voltage automatically in case of change of mains voltage. |
| | voltage regulation |
| | Torque limit and control | "Shovel" characteristics, the runtime automatic torquelimit, prevent frequent over-current trip; closed loop vectormodel can realize the torque control |
| Individua-lized function | Peripherals self-detection upon | It can conduct safety detections on the peripherals upon power-on, including earth and short circuit detections. |
| power-on |
| Shared DC bus | It can realize the function that multiple inverters share the DC bus. |
| function |
| JOG key | Programmable key: Select the command channel switching/forward and reverse rotations/jog operation. |
| Display | LED display | The machine has the LED keyboard,and realize parameter settings,status monitoring function. |
| and |
| Keyboard | LCD display | Optional, / English prompts content |
| Operation | Parameter Copy | Keyboard can be copied using the parameters to achive the rapid replication parameter. |

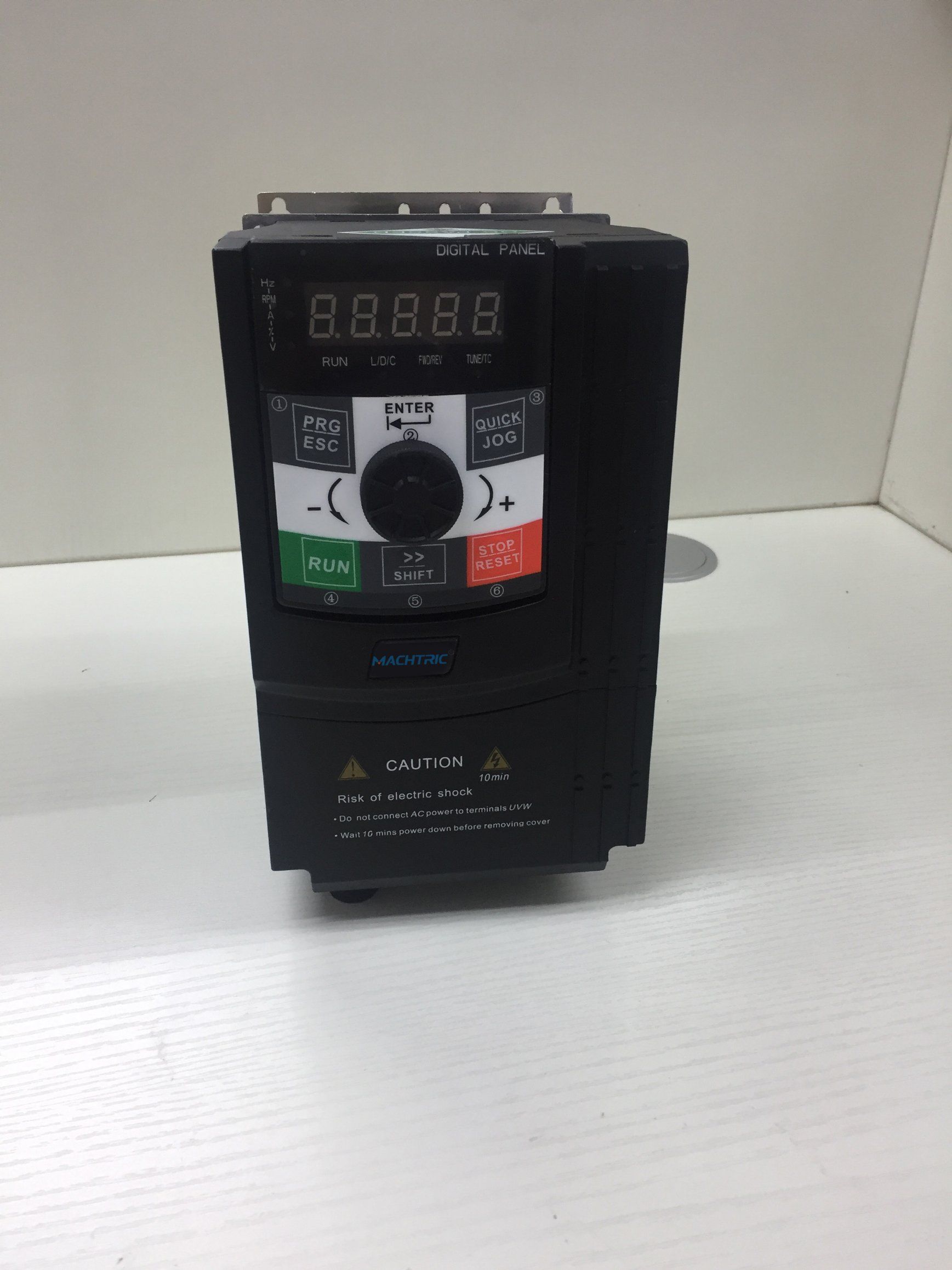

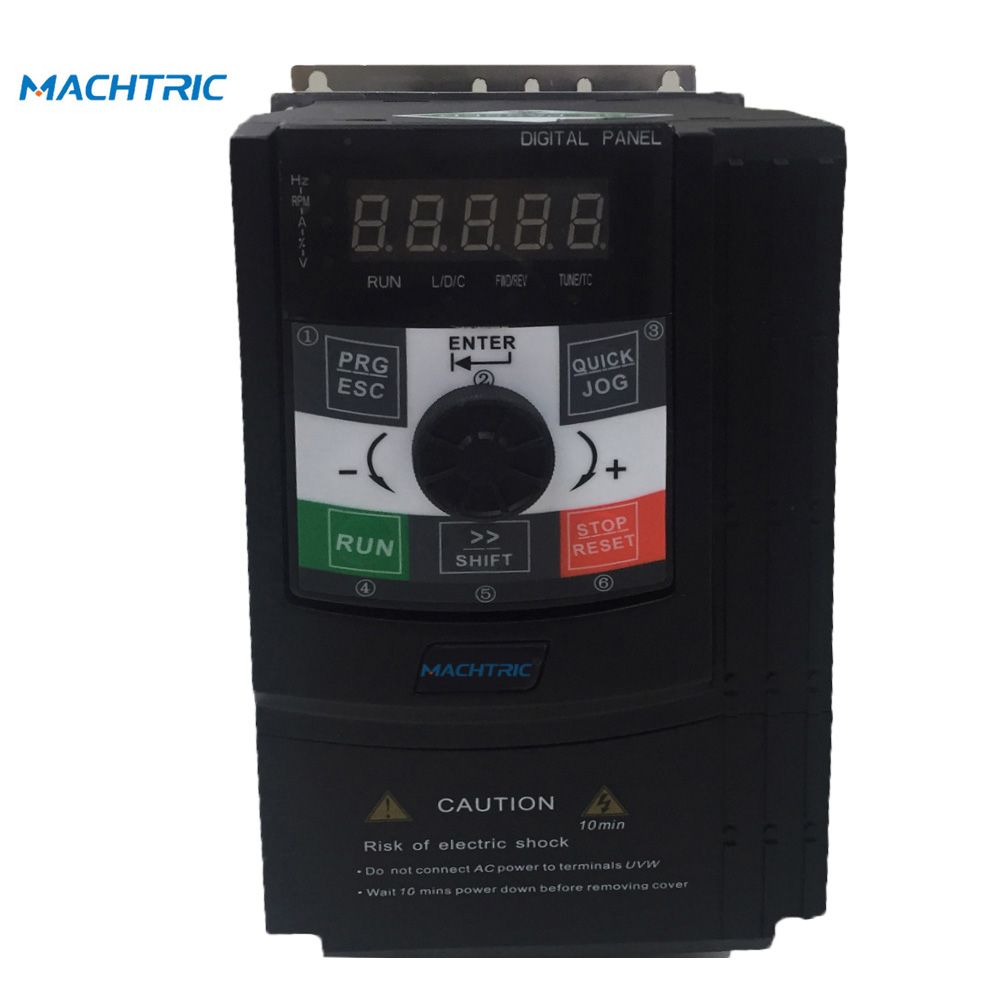

2.Product Details:
3.Product application:

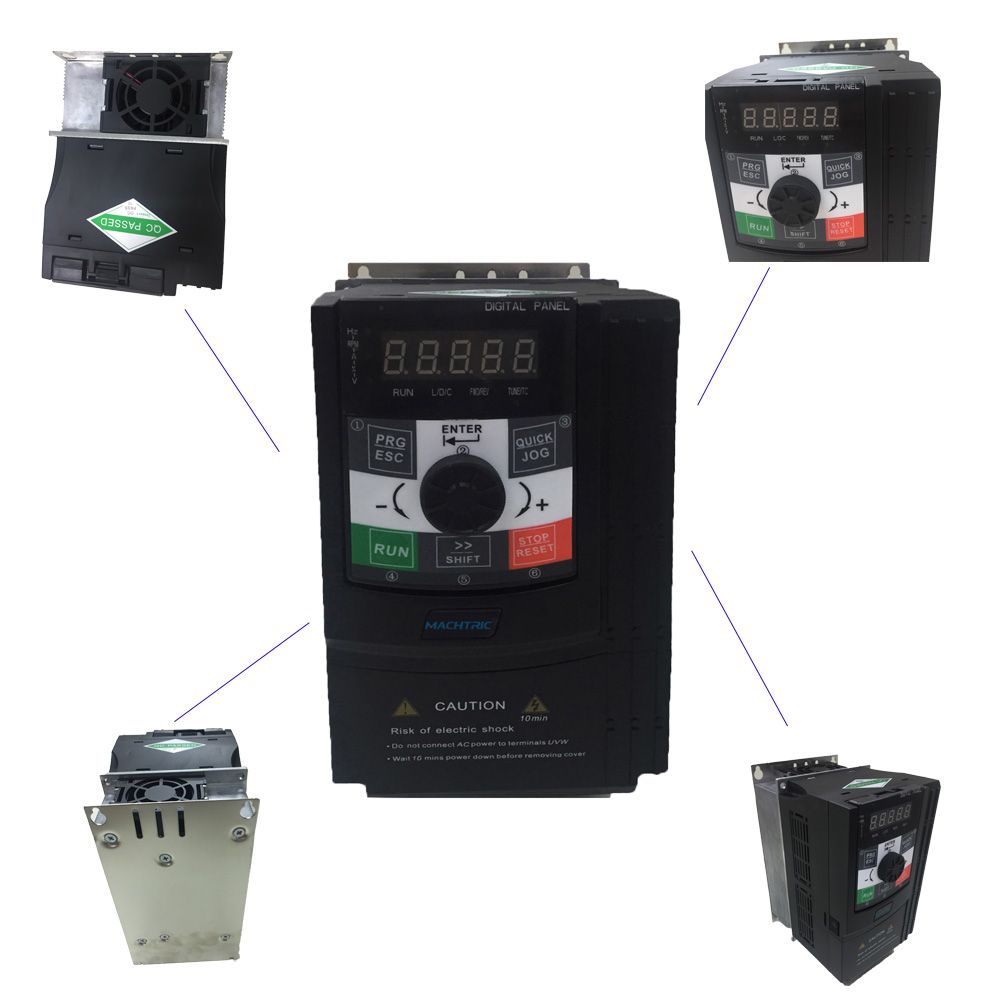

4.Product Show:
5.Contact Us:
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
