Morning Sun Electric Co., Ltd.
Morning Sun Electric Co., Ltd. >> General Purpose Relay 60.12/13

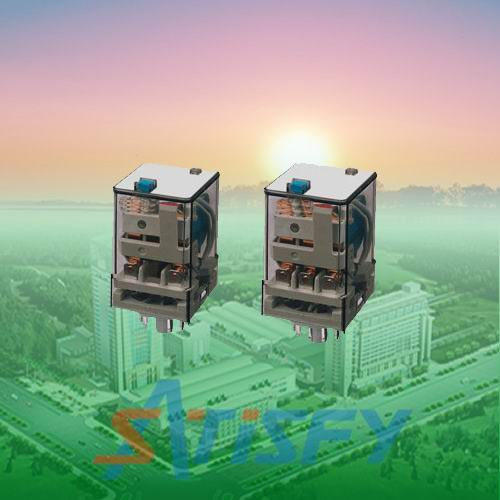

General Purpose Relay 60.12/13

General Purpose Relay 60.12/13
Price: Negotiable
Trade Terms: by sea
Min Order: 100/Piece
Contact Supplier
Showroom Product Company Profile
Prod Model: 60.12 60.13
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Type 60.12, 60.13 General Relay:
Terminal layout: 2Z
Contact capacity:
AC 10A 220V
DC 10A 28V
Contact resistance(m1/2) d50m1/2
Insulation resistance(M1/2) e100M1/2
Dielectric strength:
BOC 2000VAC
BCC 2000VAC
Coil nominal voltage:
AC 6 to 240V
DC 6 to 110V
Coil nominal power:
AC d3.5VA
DC d2W
Electrical life(OPS): 3200000
Mechanical life(OPS): 1280000000
Operating temperature: -40~+70
Weight(g) d125
Mounting methods: Outlet

HS Code: 85364900
Model: Type 60.12, 60.13
Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
