Prod Model:	JQX-10F-2Z/JTX-2C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Jqx-10f-2z
Description:	10A 2poles
Contact Material:	Silver Alloy
Terminal Type:	Plug
Nominal Coil Power:	2W / 3.5va

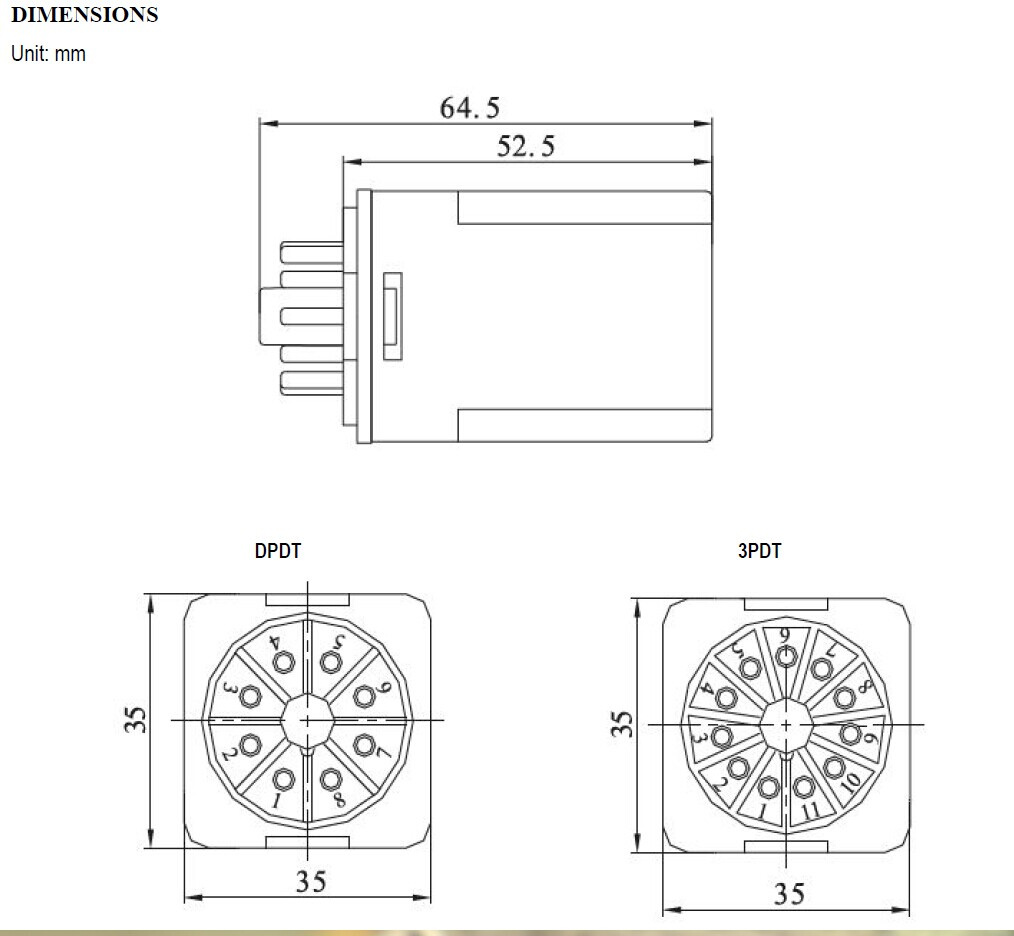

Dimension(Mm):	35X35X64.5

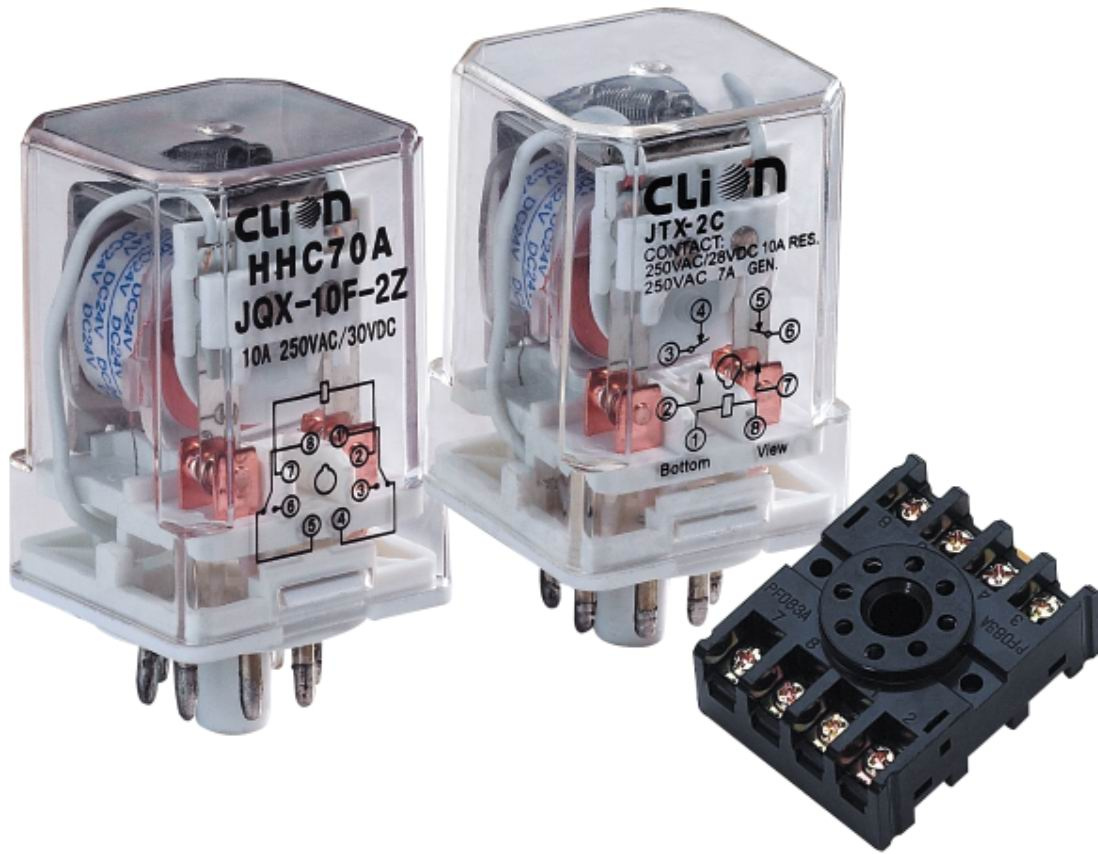

Product Description

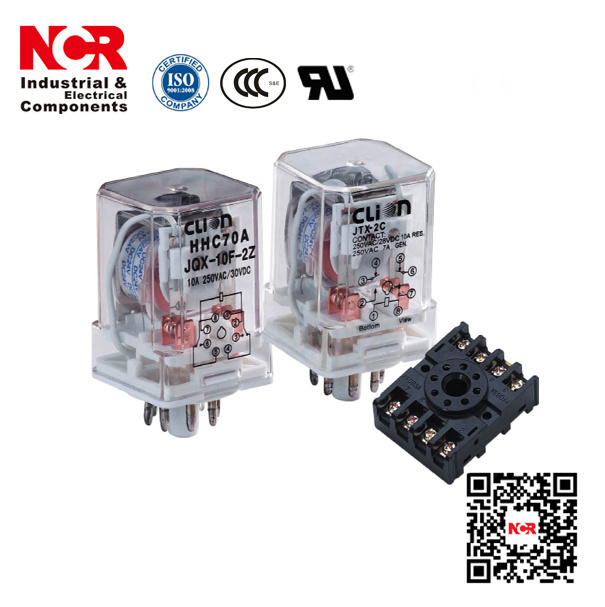

General-Purpose Relay/Industrial Relay (JQX-10F-2Z/JTX2C)

General:

Relay is a kind of automatic switching component with isolation function, which is widely used in
remote control, remote measuring, telecom, automatic control, integration of machinery and
electrification, electric and electronic equipments. It's one of the most important controlling
components.

Generally, relays have the inductive organ (input part) that can reflect the input value (such as
current, voltage, power, impedance, frequency, temperature, pressure, speed, light etc.); have
the executive organ (output part) that has the capability of switching the controlled circuit "on" or
"off"; between the input and output parts, there is the medium organ (actuator) that can make
input value coupling-isolation and drive the output part.

As a kind of controlling component, generally, relay mainly has the following functions
1) To enlarge the range of control. E.g., when the controlling signal of a multi-contacts relay
reaches a certain value, according to the different forms of the contacts, it can synchronously
change over, close or open several circuits.
2) Enlargement. E.g., sensitive relays and medium relays can control a high-power circuit with
minute controlling power.
3) To integrate signals. E.g., when several controlling signals are put into a multi-winding relay in
the stated form, the relay can realize the expectant controlling function by analyzing the different
signals.
4) Automatization, remote control and monitoring. E.g., in automatic equipments, the relays and
other electronic components can constitute program-controlled circuit, realizing the automatic
operation

Applications:

Prepayment energy meter
Smart meter
Concentrated meter reading system
Street lamp control system
Compound switch, Combination switch
Automatic control device/ system
AMR system
Elevator control

Why NCR?
1. We Are an electronics components manufacturer, researcher, developer and exporter.
2. We have fourteen years experience of manufacturing Relays and other electronic components.
3. Based on ISO 9001 & ISO14000 quality control system as our production standard;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Department.

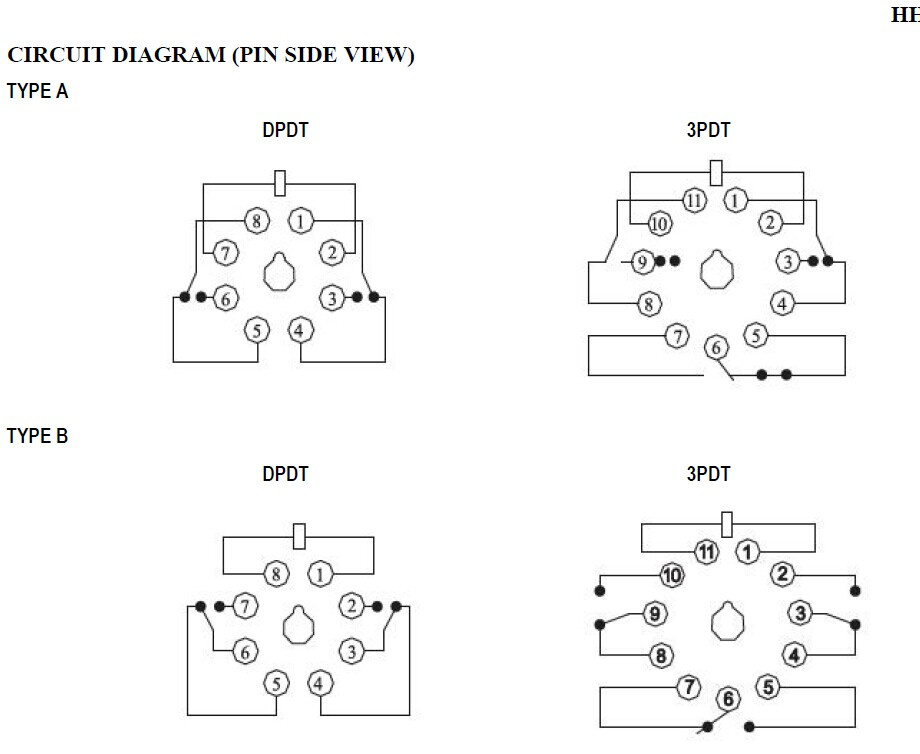

Contact	Form		2A, 2B, 2C 3A, 3B, 3C
	Load (Resistive Leakage)		10A/240VAC 28VDC
	Contact resistance (initial)		≤ 100mΩ
	Material		Silver alloy
	Electric life		≥ 10 5
	Machine life (300 times/min)		≥ 10 7
Pick-up voltage (25deg. )			DC: ≤ 75%× rated voltage AC: ≤ 80%× rated voltage
Release voltage (25deg. )			DC: ≥ 10%× rated voltage AC: ≥ 30%× rated voltage
Maximum voltage (25deg. )			110%× rated voltage
Specifications of coils		DC	6-220V (Customizable Voltage )
		AC	6-380V (Customizable Voltage )
Coil power	DC		2.0W
	AC		3.5VA
Pick-up time (rated voltage)			≤ 30ms
Release time (rated voltage)			≤ 20ms
Initial withstand	Between same-pole contacts		1200VAC/1min(leakage current: 1mA)
	Between different-pole contacts		1500VAC/1min(leakage current: 1mA)
	Between contact and coil		1000VAC/1min(leakage current: 1mA)
Insulation resistance			≥ 500mΩ (500VDC)
Ambient temperature			-55-70deg.
Ambient humidity			35%-80%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			Socket
Packing	Inner box		10 relays each carton, 20 each bubble box
	Outer case		200 relays each case;
	Dimension of outer case		carton: 395× 198× 318MM; bubble box: 375× 240× 480MM
	Weight		Approx. 75g each relay;
