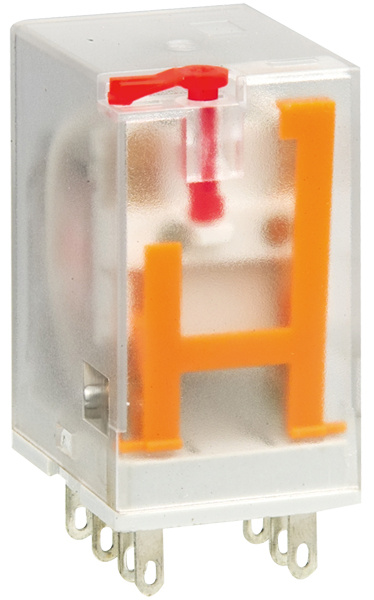

General Purpose Relay with CE, UL Approval (HH52PZ)

Name: General Purpose Relay with CE, UL Approval (HH52PZ)
Brand: all-electronics-online.com
SKU: 694631005
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HH52PZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	27L21W35h
Contact Form:	2A. 2b. 2c
Coil Voltage:	DC6-220V; AC6-380V
Coil Power:	DC: 0.9W; AC: 1.2va
Rated Load:	5A/240VAC 28VDC

Product Description

Miniature Electromagnetic Relay/General Purpose Relay(HH52P):

Contact Form: 2A. 2B. 2C
Rated load: 10A/240VAC 28VDC
Coil power: DC: 0.9W; AC: 1.2VA
Dimension: 27L*21W*35H

Miniature electromagnetic relay is a type of electrical switch controlled by an electromagnet.

The core of the miniature electromagnetic relay is an electromagnet, formed by winding a coil around an iron core. When the coil is energised, by passing current through it, the core becomes magnetised temporarily.

Miniature electromagnetic relay is capable of controlling an output of higher power than the input, and as a result, it is often used as a buffer to isolate circuits of varying energy potentials.

Miniature electromagnetic relay is used in a variety of applications, including signal switching, alarms and sensors, and the detection and control of faults on electrical distribution lines.

Part No		HHC68BZ(HH52PZ)
Dimension		272135
Contact Feature	Form	2A,2B,2C
	Rated load	5A/240VAC 28VDC
	Contact resistance	less than or equal to 100mΩ
	Material	silver alloy
	Electrical life	equal to or greater than 1*105
	Mechanical life	equal to or greater than 1*107
operate voltage(23 centigrade)		DC:less than or equal to 75%*rated voltage
		AC:less than or equal to 80%*rated voltage
release voltage(23centigrade)		DC:equal to or greater than 10%*rated voltage
		AC:equal to or greater than 30%*Rated voltage
Maximum voltage(23 centigrade)		110%*rated voltage
Normal coil voltage	DC	6-220V
	AC	6-380V
Normal coil power	DC	0.9W
	AC	1.2VA
Pick-up time		less than or equal to 20ms
Release time		less than or equal to 20ms
Dielectrical strength	Between Same-pole contacts	1000VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts	1000VAC/1min(leakage current 1mA)
	Between contacts and coil	1500VAC/1min(leakage current 1mA)
Insulation resistance		equal to or greater than 100mΩ(500VDC)
Ambient temperature		minus 25 centigrade to 55 centigrade
Ambient humidity		45%-75%RH
Atmospheric pressure		86-106KPa
Shock resistance		10G(sinusoidal half-wave pulse:11ms)
Vibration resistance		10-55Hz(double amplitude:1.0mm)
Installation		PCB, SOCKET

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
