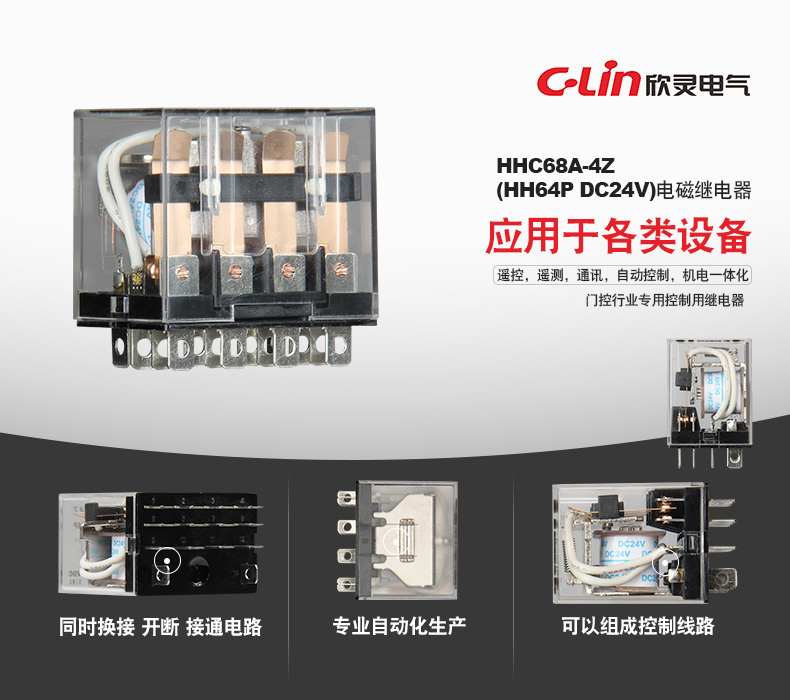

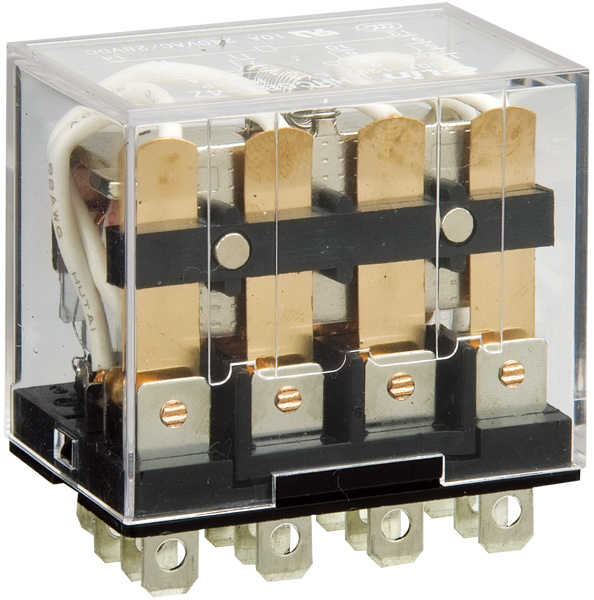

General Purpose Relay with CE, UL Approval (LY4)

Name: General Purpose Relay with CE, UL Approval (LY4)
Brand: all-electronics-online.com
SKU: 694630495
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHC68A-4Z(LY4)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	About 65g
Rated Load:	10A
Contact Form:	4z
Max Switching Voltage:	28VDC/240VAC
Coil Voltage:	DC6V-220V; AC6V-380V
Coil Power:	1.5W/3.0va

Product Description

Miniature Electromagnetic Relay/General Purpose Relay / Miniature RelayLY4

Part No		HHC68A-4Z(LY4)
Dimension		284136
Contact Feature	Form	4A, 4B, 4C
	Rated load	10A/240VAC 28VDC
	Contact resistance	less than or equal to 100mΩ
	Material	silver alloy
	Electrical life	equal to or greater than 1*105
	Mechanical life	equal to or greater than 1*107
operate voltage(23 centigrade)		DC: less than or equal to 75%*rated voltage
		AC: less than or equal to 80%*rated voltage
release voltage(23centigrade)		DC: equal to or greater than 10%*rated voltage
		AC: equal to or greater than 30%*Rated voltage
Maximum voltage(23 centigrade)		110%*rated voltage
Normal coil voltage	DC	6-220V
	AC	6-380V
Normal coil power	DC	1.5W
	AC	3.0VA
Pick-up time		less than or equal to 20ms
Release time		less than or equal to 20ms
Dielectrical strength	Between Same-pole contacts	1000VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts	1500VAC/1min(leakage current 1mA)
	Between contacts and coil	1500VAC/1min(leakage current 1mA)
Insulation resistance		equal to or greater than 100mΩ (500VDC)
Ambient temperature		minus 25 centigrade to 55 centigrade
Ambient humidity		45%-75%RH
Atmospheric pressure		86-106KPa
Shock resistance		10G(sinusoidal half-wave pulse: 11ms)
Vibration resistance		10-55Hz(double amplitude: 1.5mm)
Installation		PCB, Socket, Screw

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
