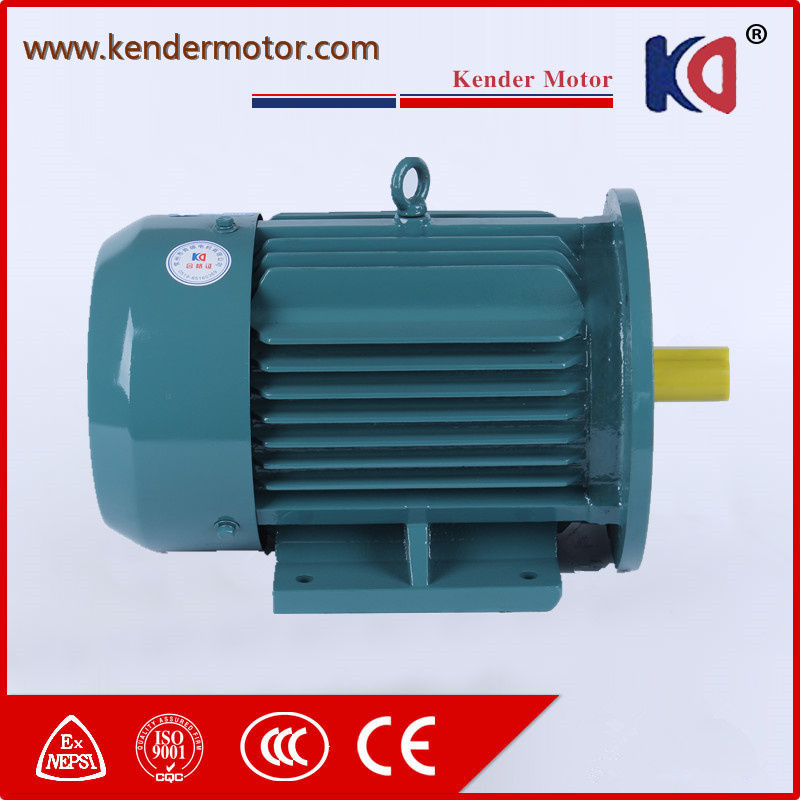

General Purpose Y2-100L1-4 2.2kw 4 Pole Induction Motor
| Price: |
US $ 60/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Y2-100L1-4 |
| Model: |
Y2-100L1-4 |
| Power: |
2.2kw |
| Voltage: |
380V |
| Efficiency: |
86.7% |
| Power Factor: |
0.81 Cos |
| Output Speed: |
1410rpm |
| Noise: |
64dB |
| Insulation Class: |
F |
| Frequency: |
50Hz |
| Temputer: |
-15 to 40 |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Brand: |
Kd |
Product Description
Technical parameter| Rated voltage | 220V/415/380/660V |
| Rated Frequency | 50HZ/60HZ |
| Protection class | IP54/IP55 |
| work mode | S1 |
| Insulation class | B,F |
| pole | 2-6 |
| Rotor | Squirrel cage rotor |
Advantage and Application | Advantage | Application |
| 1,High efficiency and torque | 1,Pack-aging machinery |
| 2,Energy saving | 2,Woodworker machinery |
| 3,Little vibration, | 3,Food processing machinery |
| 4,Low noise | 4,Chemical engineering machinery |
| 5,safe and reliable operation | 5,Textile machinery |
| 6,Low loss | 6.Construction machinery |
Technical Data of Electrical three-phase Blower AC Motor | Model | Power | Speed | Voltage | Effi. | Power
Factor | Stall/Rated
Current (A) | Stall/Rated
Torque | Max/Rated
Torque | Static braking
torque | No Load
Brake Time | Exciting
Power |
| (kW) | (r/min) | (380V) | (%) | (cos) | N.m | s | W |
| 80M1-2 | 0.75 | 2830 | 1.81 | 75 | 0.84 | 6.5 | 2.2 | 2.3 | 7.5 | 0.2 | 50 |
| 80M2-2 | 1.1 | 2.52 | 77 | 0.86 | 7.5 | 0.2 | 50 |
| 90S-2 | 1.5 | 2840 | 3.44 | 78 | 0.85 | 7 | 15 | 0.2 | 60 |
| 90L-2 | 2.2 | 4.83 | 80.5 | 0.86 | 15 | 0.2 | 60 |
| 100L-2 | 3 | 2880 | 6.39 | 82 | 0.87 | 30 | 0.2 | 80 |
| 112M-2 | 4 | 2890 | 8.17 | 85.5 | 0.87 | 40 | 0.25 | 110 |
| 132S1-2 | 5.5 | 2900 | 11.1 | 85.5 | 0.88 | 7 | 2 | 75 | 0.25 | 130 |
| 132S2-2 | 7.5 | 15.02 | 86.2 | 75 | 0.25 | 130 |
| 160M1-2 | 11 | 2930 | 21.78 | 87.2 | 0.88 | 150 | 0.35 | 150 |
| 160M2-2 | 15 | 29.36 | 88.2 | 2.2 | 150 | 0.35 | 150 |
| 160L-2 | 18.5 | 2930 | 35.49 | 89 | 0.89 | 150 | 0.35 | 150 |
| 180M-2 | 22 | 2940 | 42.2 | 89 | 200 | 0.35 | 150 |
| 200L1-2 | 30 | 2950 | 56.9 | 90 | 300 | 0.45 | 200 |
| 200L2-2 | 37 | 69.79 | 90.5 | 300 | 0.45 | 200 |
| 225M-2 | 45 | 2970 | 83.96 | 91.5 | 450 | 0.45 | 200 |
| 801-4 | 0.55 | 1390 | 1.51 | 73 | 0.76 | 6 | 2.4 | 2.3 | 7.5 | 0.2 | 50 |
| 802-4 | 0.75 | 2.01 | 74.5 | 0.76 | 2.3 | 7.5 | 0.2 | 50 |
| 90S-4 | 1.1 | 1400 | 2.75 | 78 | 0.78 | 6.5 | 15 | 0.2 | 60 |
| 90L-4 | 1.5 | 3.65 | 79 | 0.79 | 15 | 0.2 | 60 |
| 100L1-4 | 2.2 | 1430 | 5.03 | 81 | 0.82 | 7 | 2.2 | 30 | 0.2 | 80 |
| 100L2-4 | 3 | 6.82 | 82.5 | 0.81 | 30 | 0.2 | 80 |
| 112M-4 | 4 | 1440 | 8.77 | 84.5 | 0.82 | 40 | 0.25 | 110 |
| 132S-4 | 5.5 | 11.64 | 85.5 | 0.84 | 75 | 0.25 | 130 |
| 132M-4 | 7.5 | 15.41 | 87 | 0.85 | 75 | 0.25 | 130 |
| 160M-4 | 11 | 1460 | 22.61 | 88 | 0.84 | 150 | 0.35 | 150 |
| 160L-4 | 15 | 30.3 | 88.5 | 0.85 | 2.2 | 150 | 0.35 | 150 |
| 180M-4 | 18.5 | 1470 | 35.9 | 91 | 0.86 | 2 | 200 | 0.35 | 150 |
| 180L-4 | 22 | 42.48 | 91.5 | 200 | 0.35 | 150 |
| 200L-4 | 30 | 56.82 | 92.2 | 0.87 | 300 | 0.45 | 200 |
| 225S-4 | 37 | 1480 | 70.39 | 91.8 | 0.87 | 1.9 | 450 | 0.45 | 200 |
| 225M-4 | 45 | 84.17 | 92.3 | 0.88 | 450 | 0.45 | 200 |
| 90S-6 | 0.75 | 940 | 2.25 | 72.5 | 0.7 | 5.5 | 2 | 2.2 | 15 | 0.2 | 60 |
| 90L-6 | 1.1 | 3.16 | 73.5 | 0.72 | 5.5 | 15 | 0.2 | 60 |
| 100L-6 | 1.5 | 3.97 | 77.5 | 0.74 | 6 | 30 | 0.2 | 80 |
| 112M-6 | 2.2 | 5.61 | 80.5 | 0.74 | 40 | 0.25 | 110 |
| 132S-6 | 3 | 960 | 7.23 | 83 | 0.76 | 6.5 | 75 | 0.25 | 130 |
| 132M1-6 | 4 | 9.4 | 84 | 0.77 | 75 | 0.25 | 130 |
| 132M2-6 | 5.5 | 12.56 | 85.3 | 0.78 | 2 | 75 | 0.25 | 130 |
| 160M-6 | 7.5 | 970 | 16.99 | 86 | 150 | 0.35 | 150 |
| 160L-6 | 11 | 24.63 | 87 | 0.78 | 150 | 0.35 | 150 |
| 180L-6 | 15 | 31.44 | 89.5 | 0.81 | 1.8 | 200 | 0.35 | 150 |
| 200L1-6 | 18.5 | 37.71 | 89.8 | 0.83 | 300 | 0.45 | 200 |
| 200L2-6 | 22 | 44.65 | 90.2 | 0.83 | 300 | 0.45 | 200 |
| 225M-6 | 30 | 980 | 59.45 | 0.85 | 1.7 | 450 | 0.45 | 200 |
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
FAQ
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 50% T/T in advance,50% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
Name Card:Jiangsu Kender Motor CO., LTD
Contact Person:Lynn Zhu
Tel:86-519-69655640
Fax:86-519-85160023
Address:No.19 Wenya Road Qianhuang Town Wujin District Changzhou City,Jiangsu Province,China
Kender Main Product YB3 series explosion proof motor, YBX3 series energy-efficient explosion proof motor, Y2, YX3, YE3 series normal motor, YEJ series Electromagnetic braking motor, YVF2 series variable-frequency and variable-speed motor, cycloidal pin gear speed reducer Special long axis motor. At the same time for the customer customization of all kinds of different voltage and non-standard motor.
The company has professional testing instruments(The stator test system, Fully automatic intelligent factory test term) and sophisticated technology and equipment(vertical CNC lathe, CNC grinding machine, disposable porous drill and so on). Our products are manufactured and control in strict accordance with the IS09001 quality system. And successively obtained CCC certification, CE certification and explosion-proof motor industrial products production license.
The company has been adhering to the "total quality control, keep improving, perfect quality, customer satisfaction" concept of the camp, Continue to strengthen management innovation, overall raise modern quality management level, Insist on brand strategy, pay attention to product quality, Based on the market at home and abroad with Sophisticated technology and equipment perfect detection means, good after-sales service strict and efficient management system.
