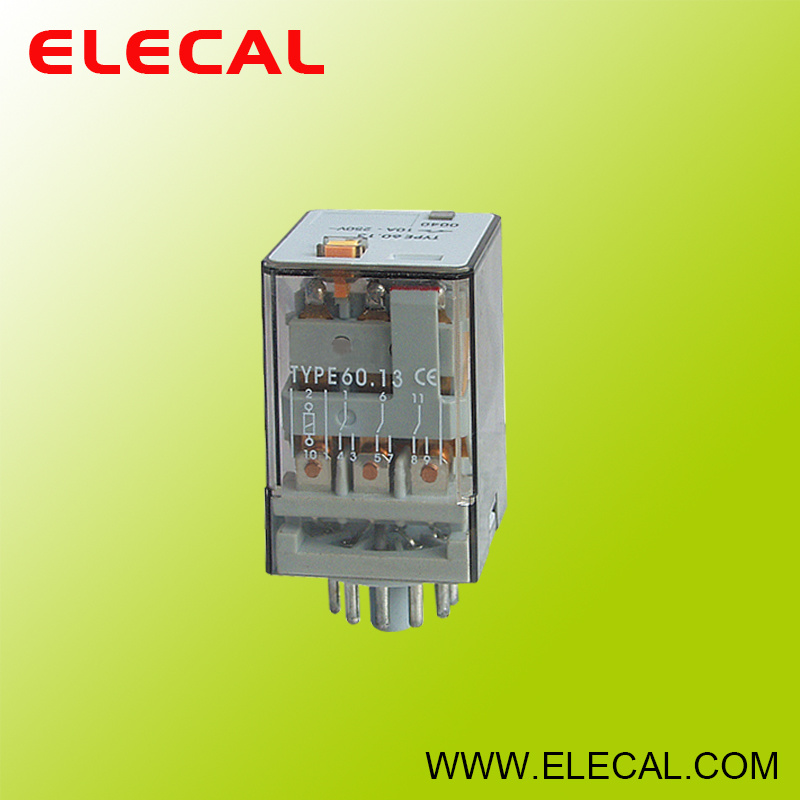

General Relay 60.12, 60.13, 60.12-I

Name: General Relay 60.12, 60.13, 60.12-I
Brand: all-electronics-online.com
SKU: 765858665
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	60.12, 60.13, 60.12-I
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Specifications Model	60.12	60.13	60.12-I
Terminal layout	2Z	3Z	2Z
Contact capacity	AC	10A 220V	10A 220V	10A 250V
DC	10A 28V	10A 28V	10A 30V
Contact resistance(m)	≤50m	≤50m	≤50m
Insulation resistance(M)	≥500M	≥500M	≥500M
Dielectric strength	BOC	2000VAC	2000VAC	1500VAC
BCC	2000VAC	2000VAC	1500VAC
Coil nominal voltage	AC	6 to 240V	6 to 240V	6 to 380V
DC	6 to 125V	6 to 125V	6 to 220V
Coil nominal power	AC	≤3.5VA	≤3.5VA	2.0VA to 2.8VA
DC	≤2W	≤2W	≤1.5W
Electrical life(OPS)	205	205	105
Mechanical life(OPS)	207/507	207/507	107
Operating temperature(oC)	-40~+70	-40~+70	-40~+60
Weight(g)	≤125	≤125	≤80
Mounting methods	Outlet	Outlet	Outlet
