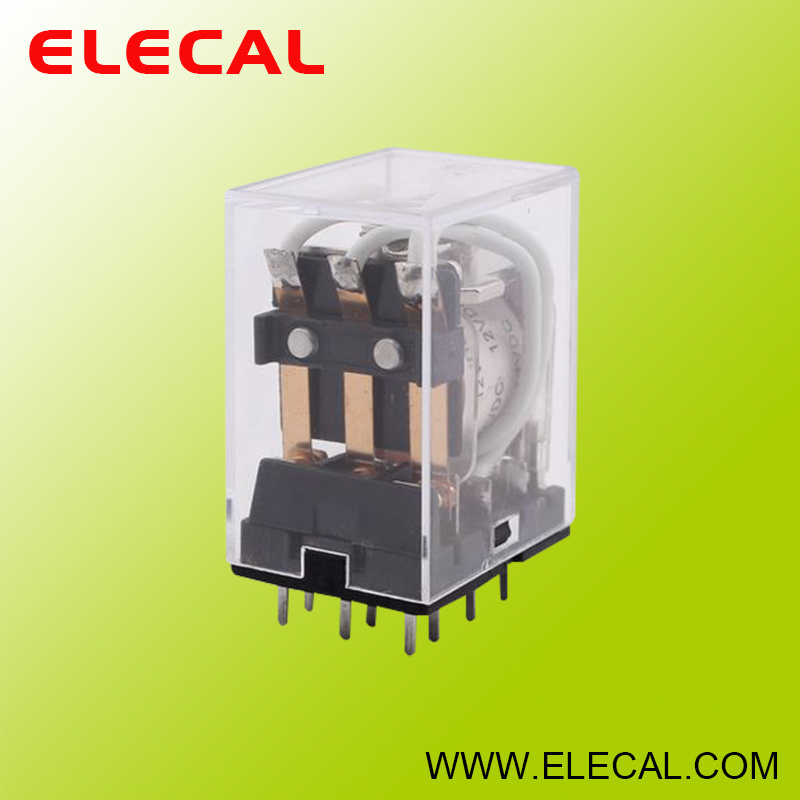

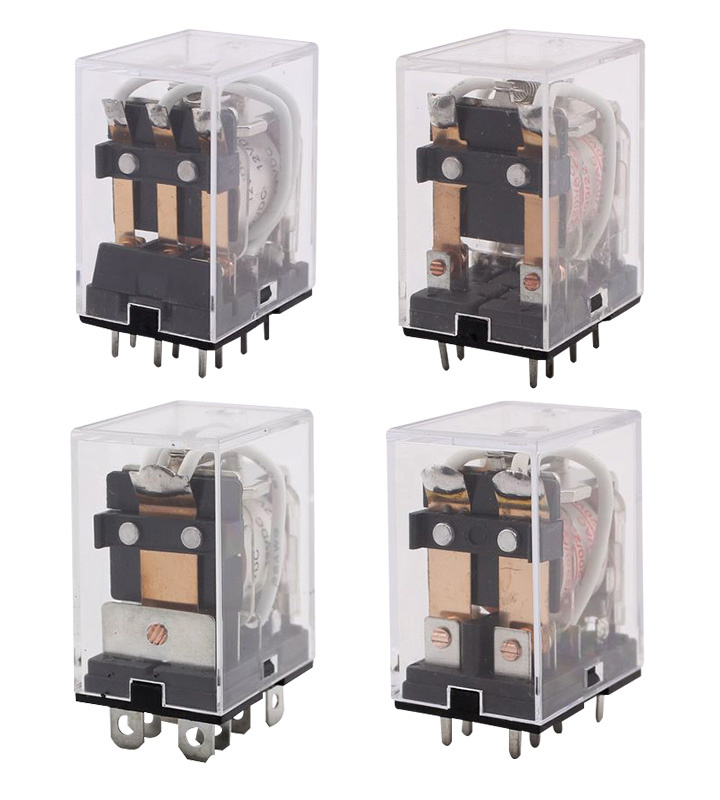

General Relay My4, Ly1, Ly2

Name: General Relay My4, Ly1, Ly2
Brand: all-electronics-online.com
SKU: 765859375
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY4, LY1, LY2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Specifications Model	MY4	LY1	LY2
Terminal layout	4Z	1Z	2Z
Contact capacity	AC	3A 250V	15A 250V	10A 250V
DC	3A 30V	15A 30V	10A 30V
Contact resistance(m)	≤50m	≤50m	≤50m
Insulation resistance(M)	≥100M	≥100M	≥100M
Dielectric strength	BOC	1000VAC	1000VAC	1000VAC
BCC	1500VAC	1500VAC	1500VAC
Coil nominal voltage	AC	6 to 240V	6 to 240V	6 to 240V
DC	6 to 220V	6 to 220V	6 to 220V
Coil nominal power	AC	0.9VA to 1.2VA	0.9VA to 1.2VA	0.9VA to 1.2VA
DC	≤0.9W	≤0.9W	≤0.9W
Electrical life(OPS)	105	105	105
Mechanical life(OPS)	107	107	107
Operating temperature(oC)	-40~+60	-40~+60	-40~+60
Weight(g)	≤35	≤35	≤35
Mounting methods	Printed-circuit board, Outlet	Printed-circuit board, Flange, Outlet	Printed-circuit board, Flange, Outlet

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
