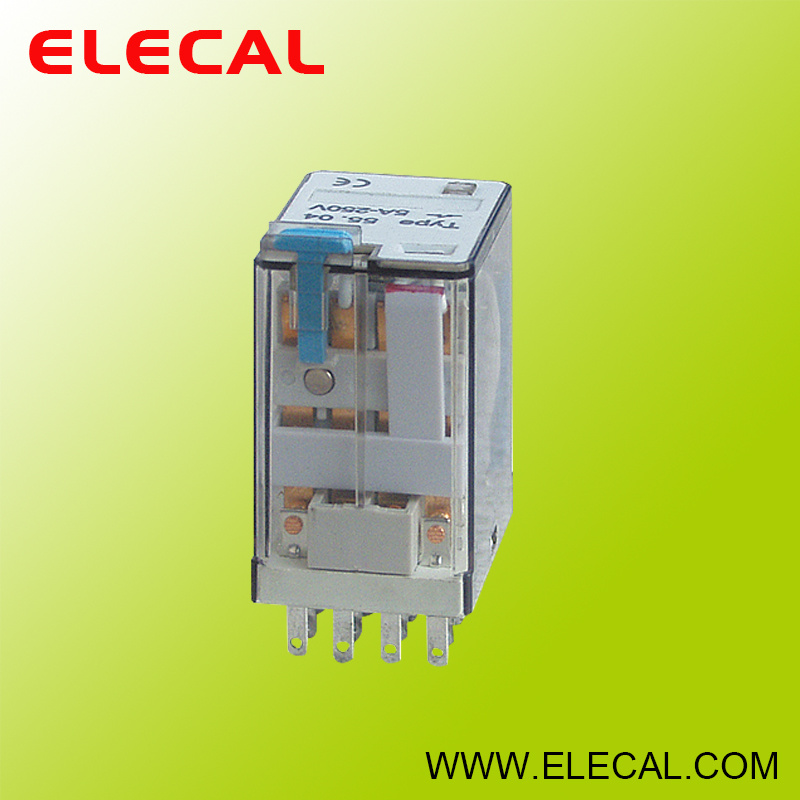

General Relay

General Relay
Price: US $ 10/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: General Relay
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The  series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

1.Main Technical Parameter

Specifications Model55.0255.0455.32
Terminal layout2Z4Z2Z
Contact capacityAC10A 250V5A 250V5A 250V
DC10A 30V5A 30V5A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥100M≥100M≥100M
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 240V
DC6 to 110V6 to 110V6 to 110V
Coil nominal powerAC0.9VA to 1.2VA0.9VA to 1.2VA0.9VA to 1.2VA
DC≤0.9W≤0.9W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-4~+60-40~+60
Weight(g)≤35≤35≤35
Mounting methodsPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, Outlet

Specifications Model55.3457.0257.04
Terminal layout4Z2Z4Z
Contact capacityAC5A 250V10A 250V5A 250V
DC5A 30V10A 30V5A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥100M≥100M≥100M
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 240V
DC6 to 110V6 to 110V6 to 110V
Coil nominal powerAC0.9VA to 1.2VA0.9VA to 1.2VA0.9VA to 1.2VA
DC≤0.9W≤0.9W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-40~+60-40~+60
Weight(g)≤35≤35≤35
Mounting methodsPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, Outlet

Specifications Model56.0256.0458.02
Terminal layout2Z4Z2Z
Contact capacityAC10A 250V10A 250V10A 250V
DC10A 28V10A 28V10A 28V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥100M≥100M≥100M
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 240V
DC6 to 110V6 to 110V6 to 110V
Coil nominal powerAC0.9VA to 1.2VA≤2.5VA0.9VA to 1.2VA
DC≤0.9W≤1.6W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+70-40~+70-40~+70
Weight(g)≤35≤70≤35
Mounting methodsPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, Outlet

Specifications Model60.1260.1360.12-I
Terminal layout2Z3Z2Z
Contact capacityAC10A 220V10A 220V10A 250V
DC10A 28V10A 28V10A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥500M≥500M≥500M
Dielectric strengthBOC2000VAC2000VAC1500VAC
BCC2000VAC2000VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 380V
DC6 to 125V6 to 125V6 to 220V
Coil nominal powerAC≤3.5VA≤3.5VA2.0VA to 2.8VA
DC≤2W≤2W≤1.5W
Electrical life(OPS)205205105
Mechanical life(OPS)207/507207/507107
Operating temperature(oC)-40~+70-40~+70-40~+60
Weight(g)≤125≤125≤80
Mounting methodsOutletOutletOutlet

Specifications Model60.13-I70.270.3
Terminal layout3Z2Z3Z
Contact capacityAC10A 250V10A 250V10A 250V
DC10A 30V10A 30V10A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥500M≥500M≥500M
Dielectric strengthBOC1500VAC1500VAC1500VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 380V6 to 380V6 to 380V
DC6 to 220V6 to 220V6 to 220V
Coil nominal powerAC2.0VA to 2.8VA2.0VA to 2.8VA2.0VA to 2.8VA
DC≤1.5W≤1.5W≤0.5W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-40~+60-40~+60
Weight(g)≤80≤85≤85
Mounting methodsOutletOutletOutlet

Specifications ModelJJDZ3-33MY2MY3
Terminal layout3Z2Z3Z
Contact capacityAC3A/28VDC 3A/220VAC5A 250V5A 250V
DC 5A 30V5A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥500M≥100M≥100M
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC5000VAC1500VAC1500VAC
Coil nominal voltageAC6 to 220V6 to 240V6 to 240V
DC 6 to 220V6 to 220V
Coil nominal powerAC≤3W0.9VA to 1.2VA0.9VA to 1.2VA
DC ≤0.9W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-30~+40-40~+60-40~+60
Weight(g)85≤35≤35
Mounting methodsOutletPrinted-circuit board, OutletPrinted-circuit board, Outlet

Specifications ModelMY4LY1LY2
Terminal layout4Z1Z2Z
Contact capacityAC3A 250V15A 250V10A 250V
DC3A 30V15A 30V10A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥100M≥100M≥100M
Dielectric strengthBOC1000VAC1000VAC1000VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 240V6 to 240V
DC6 to 220V6 to 220V6 to 220V
Coil nominal powerAC0.9VA to 1.2VA0.9VA to 1.2VA0.9VA to 1.2VA
DC≤0.9W≤0.9W≤0.9W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-40~+60-40~+60
Weight(g)≤35≤35≤35
Mounting methodsPrinted-circuit board, OutletPrinted-circuit board, Flange, OutletPrinted-circuit board, Flange, Outlet

Specifications ModelLY3LY4MK2P-I
Terminal layout4Z2Z3Z
Contact capacityAC10A 250V10A 250V10A 250V
DC10A 28V10A 30V10A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥100M≥500M≥500M
Dielectric strengthBOC1000VAC1500VAC1500VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 240V6 to 380V6 to 380V
DC6 to 110V6 to 220V6 to 220V
Coil nominal powerAC≤2.5VA≤2.8VA≤2.8VA
DC≤1.6W≤1.6W≤1.6W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+70-40~+60-40~+60
Weight(g)≤70≤80≤80
Mounting methodsPrinted-circuit board, Flange, OutletOutletOutlet

Specifications ModelMK3P-IMK2PN-IMK3PN-I
Terminal layout3Z2Z3Z
Contact capacityAC10A 250V10A 250V10A 250V
DC10A 30V10A 30V10A 30V
Contact resistance(m)≤50m≤50m≤50m
Insulation resistance(M)≥500M≥500M≥500M
Dielectric strengthBOC1500VAC1500VAC1500VAC
BCC1500VAC1500VAC1500VAC
Coil nominal voltageAC6 to 380V6 to 380V6 to 380V
DC6 to 220V6 to 220V6 to 220V
Coil nominal powerAC≤2.8VA≤2.8VA≤2.8VA
DC≤1.6W≤1.6W≤1.6W
Electrical life(OPS)105105105
Mechanical life(OPS)107107107
Operating temperature(oC)-40~+60-40~+60-40~+60
Weight(g)≤80≤80≤80
Mounting methodsOutletOutletOutlet



Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
