| Prod Model: |
Z900 frequency inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
V/F Control Open Loop Vector Control |
| Frequency Range: |
0~320Hz, 0~3200Hz |
| Delivery Detail: |
5~7 Days Upon Receiption of Payment |
| Certificate: |
CE, ISO9000, ISO14001, Ohsas18000 |
| Output Current: |
2.4A-45A |
| The Output Power: |
0.4kw-22kw |
| Protective Structure: |
IP20 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

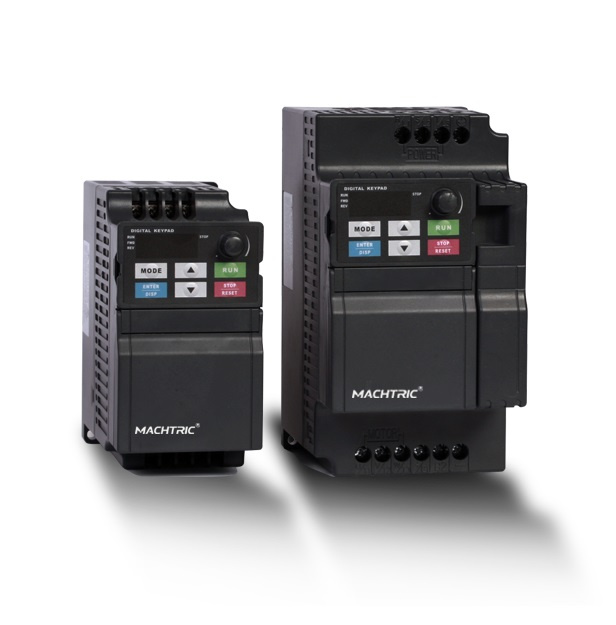

Z900---Compact size design frequency inverter VFD
1. Details
Control mode: Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control
Maximum frequency: Vector control: 0-300 Hz
V/F control: 0-3200Hz
Carrier frequency: 1 kHz-16 kHz
2. Why choose Sanch frequency inverter?
1. Easy operating system. --- easy but effective software, gentle touch achieve.
2. Stable performance--- best famous company ensure the quality all the time.
3. Excellent after sales service--- never leave you along.
4. Fast delivery --- safety delivery, we look after it all the time.
3. About us :
We are professional manufacturer under Sanch organization from Taiwan supplying with factory automation products like variable frequency inverter (AC drive),
Circular knitting machine controller, power controller and total solution for industrial electric control system as client's demands.
4. Additional information
Price list:
Could you pls tell me which power range of inverter are you interested in?
Delivery time required:
Normally in one week or two week, depend on quantity! .
Minimum order value:
MOQ: 1 PC
6. Specification
| Model No. | Input Voltage | Rated Output Power (KW) | Rated Input Current(A) | Rated Output Current (A) | Motor Power (KW) |
| Z900-2S0.4GE | 1PH AC
220V?50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | 1PH AC
220V?50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | 1PH AC
220V?50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S2.2GE | 1PH AC
220V?50/60Hz | 2.2 | 16 | 10.0 | 2.2 |
| Z900-2S3.7GE | 1PH AC
220V?50/60Hz | 3.7 | 23 | 16.0 | 3.7 |
| Z900-4T0.75GE | 3PH AC
380V@50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 3PH AC
380V@50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 3PH AC
380V@50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5GP | 3PH AC
380V@50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 3PH AC
380V@50/60Hz | 5.5 | 15.0 | 13.0 | 5.5 |
| Z900-4T7.5GE | 3PH AC
380V@50/60Hz | 7.5 | 14 | 17.5 | 7.5 |
| Z900-4T7.5GE/11GP | 3PH AC
380V@50/60Hz | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| Z900-11GE/15GP | 3PH AC
380V@50/60Hz | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
Z900-15GE/
18.5GP | 3PH AC
380V@50/60Hz | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Z900-18.5GE/
22GP | 3PH AC
380V@50/60Hz | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| Z900-22GE/30GP | 3PH AC
380V@50/60Hz | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business .
With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers.
At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers.
We try to provide wisdom, individual product solution.
Technical support:
We have a professional technical support group for all of our items selling.if you have any technical problem on our items.Pls feel free to contact with us.our technical support always beside you.
Warranty:
1.We offer 18 months guarantee. Within the warranty period, all exchanges of the products due to defects are free (Buyer is responsible for shipping charges).
2.If you do not receive the item(s) or item(s) suspecting to be lost in the delivery,please let us know and we would like to refund you full money as you paid us.
3.Please do check everything carefully when receiving the package. Failure to do so might result in damage to your own rights and interests;
4.If your item has any problems during the warranty period when you use it, please send us an e-mail with photos or video to show the problem.
5.Replacement parts also enjoy 18 months warranty.
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
