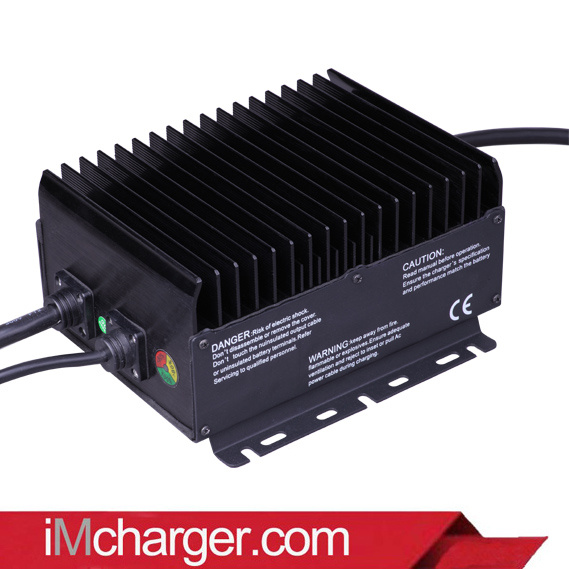

Genie Part No. 105739, 24V 25A on Board Battery Charger Replacement
| Price: |
US $ 150/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
iMcharger ISG 24v 25a |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Input Voltage Range: |
AC 85V - AC 265V |
| AC Input Frequency: |
45-65 Hz |
| AC Power Factor: |
More Than 0.98 |
| Efficiency: |
More Than 93% |
| Enclosure Class: |
IP65 |
| Vibration Resistance: |
Conform to Saej1378 |
| Charging Control: |
Temperature Compensation Control |
| Short Circuit Protection: |
Yes |
| Inverse Polarity Protection: |
Yes |
| Thermal Protection: |
Yes |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Half-Bridge Charger |
Product Description
Genie Part No.105739, 24V 25A on board battery charger replacement
This charger was specially designed for Hyster 36 volt electrical system trucks.it is used for Lead acid (Wet / AGM / GEL), Lithium Ion batteries, and It can be used worldwide as it operates at both 120 volts and 230 volts.
Feature:
Charge Lead acid (Wet / AGM / GEL), Lithium Ion batteries
Vibration Resistant
Fully sealed enclosure
Electronic protection with auto-reset
Short Circuit Protected
Designed for on- or off-board usage
Rugged Construction
CAN bus and Modbus communication
Specification:
DC Output Voltage | 24 V |
|
|
| DC Output Current | 25 A |
|
|
| Nominal AC input voltage | 110V/230 VAC |
|
|
| Nominal AC input frequency | 50 / 60 Hz |
|
|
| AC input connector | IEC320 / C14 (requires country-specific cord) |
| DC output connector | M6 threaded fasteners for ring terminals |
| Dimensions | 215x 183 x 117 mm (8.5 x 7.2 x 4.5") |
| Weight | 3.5kg (7.7 lbs) |
| Enclosure | IP65 |
|
|
| Operating temperature: | -40ºC to +65ºC (-40ºF to 149ºF) |
|
|
| Storage temperature | -40ºC to +85ºC (-40ºF to 185ºF) |
|
|
Other models:
24v
| Model | Voltage | Current | Battery | Dimensions |
| IDG 2415 | 24V | 15A | Lead acid(Flooded,AGM,GEL),Lithium | 280*243*104mm N.W.:4.8KG G.W: 5KG |
| IDG 2420 | 24V | 20A | Lead acid(Flooded,AGM,GEL),Lithium | 280*243*104mm N.W.:4.8KG G.W: 5KG |
| IDG 2430 | 24V | 30A | Lead acid(Flooded,AGM,GEL),Lithium | 280*243*104mm N.W.:4.8KG G.W: 5KG |
| IDG 2440 | 24V | 40A | Lead acid(Flooded,AGM,GEL),Lithium | 280*243*104mm N.W.:4.8KG G.W: 5KG |
| ISG 2415 | 24V | 15A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2420 | 24V | 20A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2425 | 24V | 25A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2430 | 24V | 30A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2435 | 24V | 35A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2440 | 24V | 40A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2450 | 24V | 50A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2460 | 24V | 60A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
| ISG 2480 | 24V | 80A | Lead acid(Flooded,AGM,GEL),Lithium | 280*154*115mm N.W.: 3.5KG G.W: 4KG |
|
|
|
|
|
Warranty: 1 year
