Genset Controller, Generator Set Controller Comap Amf25

Genset Controller, Generator Set Controller Comap Amf25
Price: US $ 120-180/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: AMF25
MOQ: 1
Task: Program
Structure: Combination
Mathematical Model: Linear
Signal: Continuous
Function: Measurement
Certification: CE
Condition: New
Customized: Customized
Material: Rubber

Product Description

Sunvision Digital Technology is professional manufacturer of Generator set and light towers. Also competitive supplier of Genset parts.

The controller series including Smartgen, ComAp, Deepsea, Harsen, Also Sunvision series. The control panel covers one year warranty, Free for replacement during warranty time.

Specification
Product Description

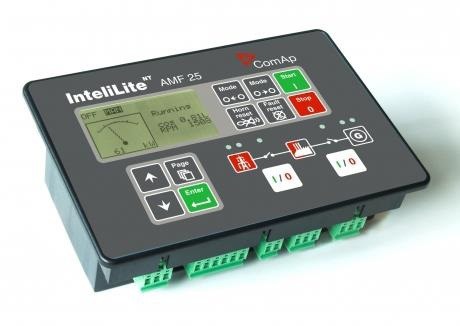

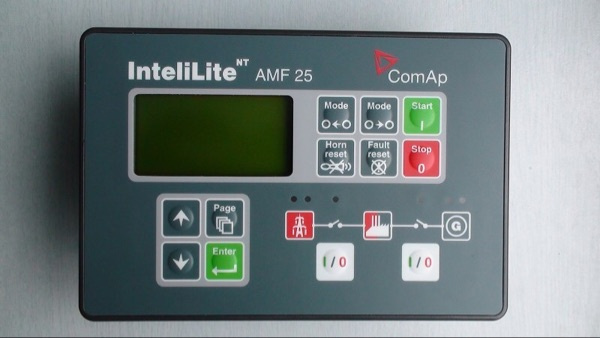

ComAp Automatic Mains Failure Controller AMF25

InteliLite AMF25 and InteliLite AMF25 are new integrated controllers for gen-sets operating in single standby mode.

ComAp Automatic Mains Failure Controller AMF25
ComAp Automatic Mains Failure Controller AMF25

Description:

InteliLite AMF25 and InteliLite AMF25 are new integrated controllers for gen-sets operating in single standby mode. They meet all possible requirements for AMF

Applications, including modem control, user configuration and full gen-set monitoring and protection.

InteliLite controller are equipped with a powerful graphic display. Ioons, symbols and bar graphs for intuitive operation together with high functionality set new standards

In gen-set control.

Special low temperature (IL-AMF 20-LT or IL AMF 25-LT) version is also available, allowing the display to work up to -300C.

Features:

Support of engines equipped with electronic control unit (J1939 interface);
Comprehensive diagnostic messages; SPN/FMI codes; KWP2000 support;
Automatic or manual start/stop of the gen-set.
Push buttons for simple control, lamp test
Graphic back-lit LCD display 128*64 pixels
6 LED indicators
Parameters adjustable vis keyboard or PC
Mains measurements (50/60 Hz): U1-U3, I1-I3, Hz, kW, kvar, kWh
Selectable protections alarm/shutdown
3 phase generator protections:
Over-/under voltage
Over-/under frequency
Current/voltage asymmetry
Over current/ overload
3 phase AMF function:
Over-/under frequency
Over-/under voltage
Voltage asymmetry
Configurable analog inputs
Battery voltage, engine speed(pick-up) measurement
Configurable programmable binary inputs and outputs
Warm-up and cooling functions
Generator C. B. And Mains C. B. Control with feedback and return timer
RS232 interface (AT-LINK CONV cable is necessary for IL-AMF 20) Perfect price/performance ratio Modem communication support (IL-AMF 25 only)
Demensions 180*120mm(front panel)
Sealed to IP85

Benefits:
Less wiring and components
Integrated solution
Less engineering and programming
Perfect price/performance ratio

We supply ComAp control panel series as the following:

ComAp control panel series

InteliLite NT
InteliLite NT AMF25
InteliLite NT AMF20
InteliLite NT MRS16
InteliLite NT MRS15
InteliLite NT AMF8
InteliLite NT AMF9
InteliLite NT AMF10
InteliLite NT AMF11
InteliCompact NT
InteliCompact NT SPtM
InteliCompact NT NT MINT
InteliGen NT
InteliGen NTC BaseBox
InteliGen NTC
InteliGen NT Marine
IG-NTC 400Hz LT GC
Accessories
IB-Lite IG-AVRi IG-AVRi-TRANS/LV
IL-NT RS232
IL-NT RS232-485
IL-NT S-USB

For details please do not hesitate to contact with us, thank you!
