| Prod Model: |
original car gps tracker GPS103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year Coban GPS |
| Certificate: |
Ce FCC |
| Weight: |
120g |
| OEM/ODM: |
Yes |
| Car Security Alarm: |
Stop Engine, Fuel Monitor, Geofence |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Arm Alarms: |
Acc, Door Open Alarm, Optional Shock Sensor Alarm |
| Sensitive: |
External GPS GSM Antennas |
| GPS Accuracy: |
5m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Get Position GSM Transmit |
| Port Number: |
20 |
| Model: |
Automotive GPS Car Tracker 103A |
| Brand: |
Coban GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

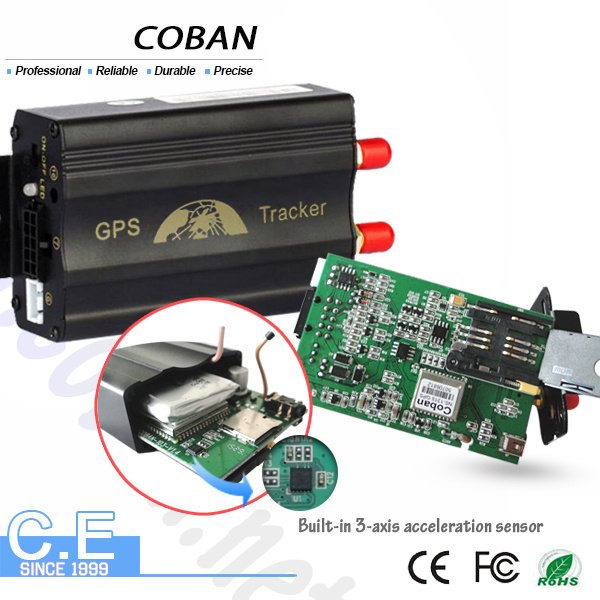

Geo Fence Coban Original Car gps tracking device with Stop Engine
How does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
The unit is powered by automotive battery, and should be installed inside a vehicle .
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Applying directions: Vehicle fleet/logistics/Vehicle rental
Technology parameter:
Content | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- optional android Ios APP tracking
- Optional web server www.gpstrackerxy.com
What is in the box :
1x GPS unit
1x GPS antenna
1x GSM antenna
1 x MIC
1 x Harness
1 x relay
1 x Manual
(Remote controller is optional )
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
