| Prod Model: |
GFJDZX1053-10 |
| Rated Voltage: |
10kv, 6kv |
| Rated Load: |
≤150va |
| Cosø: |
0.8 (Lag) |
| Key Words: |
High Voltage Potential Transformers |
| Key Word: |
High Voltage to Low Voltage Transformer |
| Model: |
High Voltage Transformer |
| Phase Number: |
Single |
| Rated Frequency: |
50Hz or 60Hz |
| Rated Insulation Level: |
12/42/75kv, 7.2/32/60kv |
| Class Of Pollution: |
II |
| Application: |
Audio |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

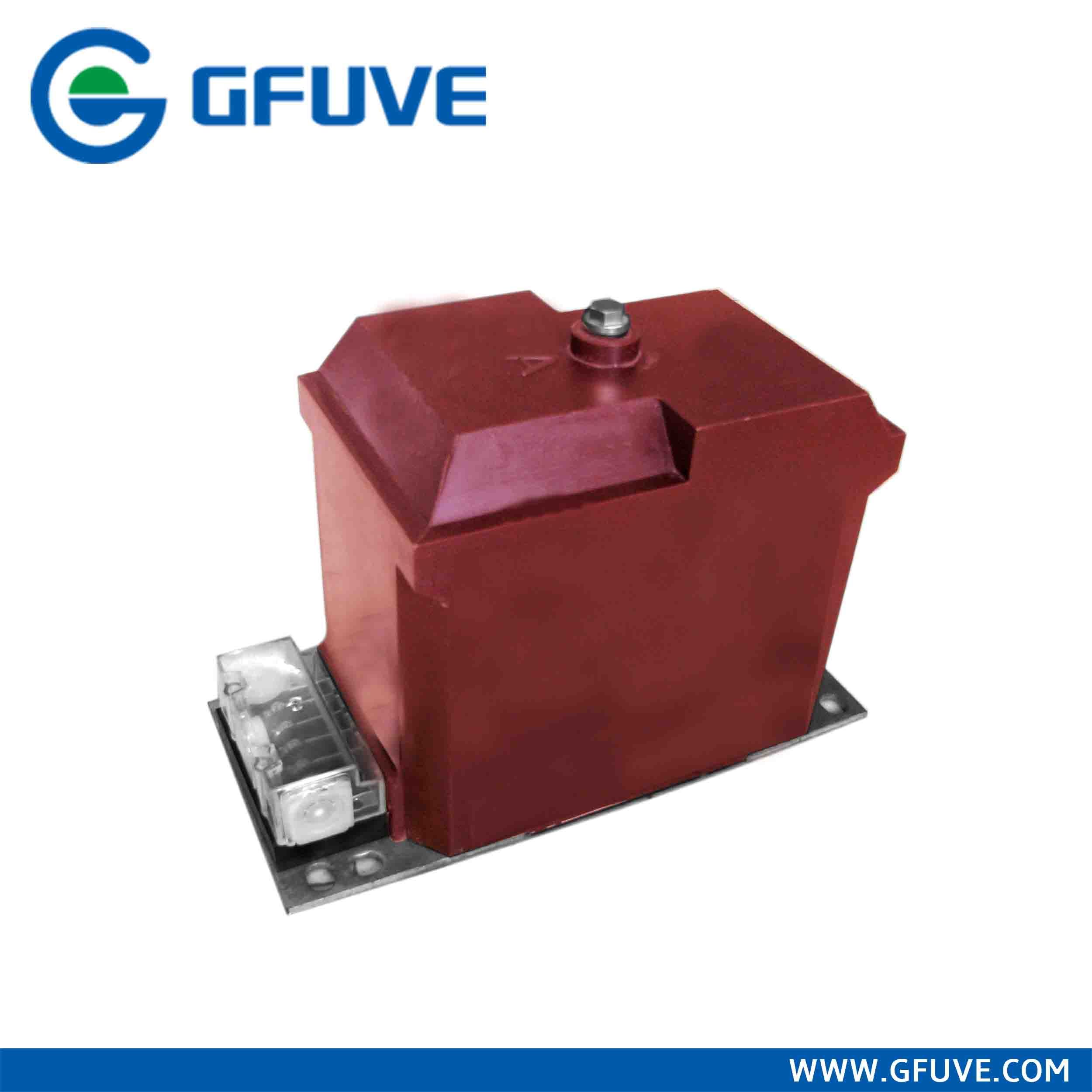

product descriptionThe Model GFJDZX1053-10 GFUVE High Voltage to low voltage Potential Transformers is single-phase multi-winding whole sealing epoxy pouring product. The high voltage to low voltage transformers is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
PARAMETERS| Technical parameters | |
|---|
| Standards | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated Voltage | 10KV, 6KV |
| Rated load | ≤150VA |
| Rated frequency | 50Hz or 60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Single |
| Rated insulation level | 12/42/75KV, 7.2/32/60KV |
| Class of pollution | II |
| Mechanicalparameters |
|---|
| Material | Epoxy resin |
| Weight (kg) | 22 |
| Operating conditions |
|---|
| Operating temperature | -25°C to +55°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Altitude | <1000 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
Ordering informationBe sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
