Gflxzk0656-200 200mm Clamp on Current Transformer Output Current 5A

Gflxzk0656-200 200mm Clamp on Current Transformer Output Current 5A
Price: US $ 50-300/Piece
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GFLXZK0656-200
Key Words: Clamp on Current Transformer Output Current
Rated Primary Current: 50-600A
Rated Load: ≤30va
Key Word: Clamp on Current Transformer 5A
Rated Secondary Current: 5A or 1A
Rated Dynamic Current: 63ka
Rated Insulation Level: 12/42/75kv
Model: Clamp on Current Transformer
Material: Epoxy Resin
Color: Red or Customized
Application: Audio
Type: Current Transformer
Phase: Single

Product Description

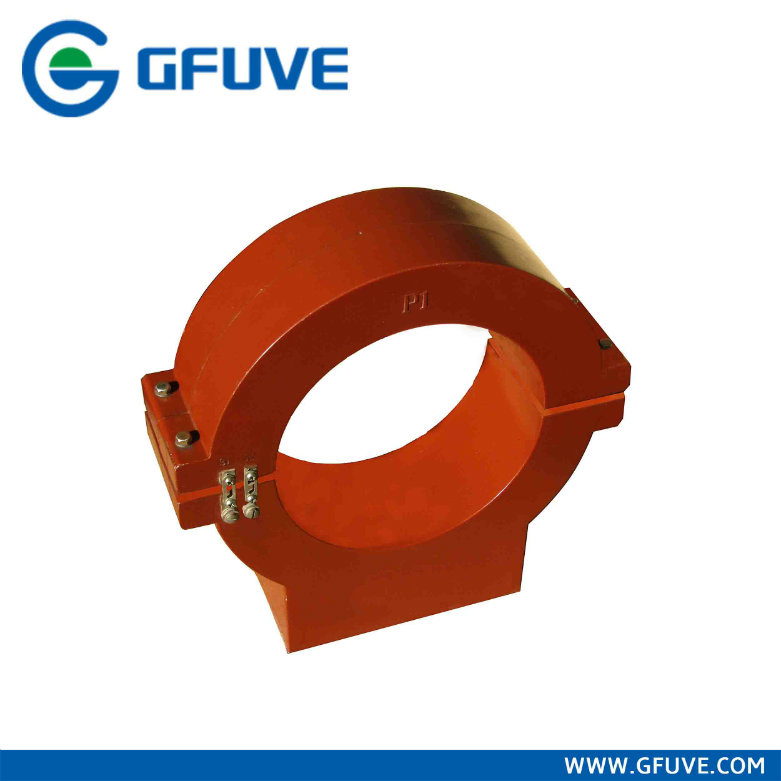

GFLXZK0656-Φ200 200mm  Clamp on Current Transformer Output current 5A

Product description
The 200mm dry type Clamp on current transformers GFLXZK0656-Φ200 are cast in epoxy resin insulated with large measuring range and are excellent in anti-pollution and humidity protection. With high grade accuracy, it is suitable for protection against large short-circuit current, secondary current output 1A or 5A. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13.
Parameters
Technical parameters
StandardsIEC60044; IEC 61869; ANSI/IEEE C57.13
Rated primary current50-600A
Rated load≤30VA
Rated frequency50Hz or 60Hz
Rated secondary current5A or 1A
Rated short-time thermal current140kA, 1S
Rated dynamic current63KA
Rated insulation level12/42/75KV
FS≤10
Mechanical parameters
MaterialEpoxy resin
Weight (kg)25
Operating conditions
Operating temperature-10°C to +55°C
Daily average temp<+40°C
Storage temperature-40°C to +70°C
Altitude<1000 meters
ConditionNo existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
Technical parameters
Rated Current RatioAccuracy ClassRated Output(VA)
50/110P52
60/12
75/12
100/12
150/110P102.5
200-300/12.5
400-600/12.5
50/510P55
75/5
100/510
150-300/510P1020
350-600/530
