Gflxzk0656-Φ 200 Split Core Toroidal Current Transformers

Name: Gflxzk0656-Φ 200 Split Core Toroidal Current Transformers
Brand: all-electronics-online.com
SKU: 722516492
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 100-300/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFLXZK0656-Φ 200
Key Words:	Toroidal Current Transformer
Model:	Toroid Current Transformer
Rated Primary Current:	50-600A
Rated Load:	≤30va
Rated Frequency:	50Hz or 60Hz
Key Word:	Toroidal Current Transformers
Rated Secondary Current:	5A or 1A
Material:	Epoxy Resin
Rated Dynamic Current:	63ka
Rated Short-Time Thermal Current:	40ka, 1s
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

Product Name

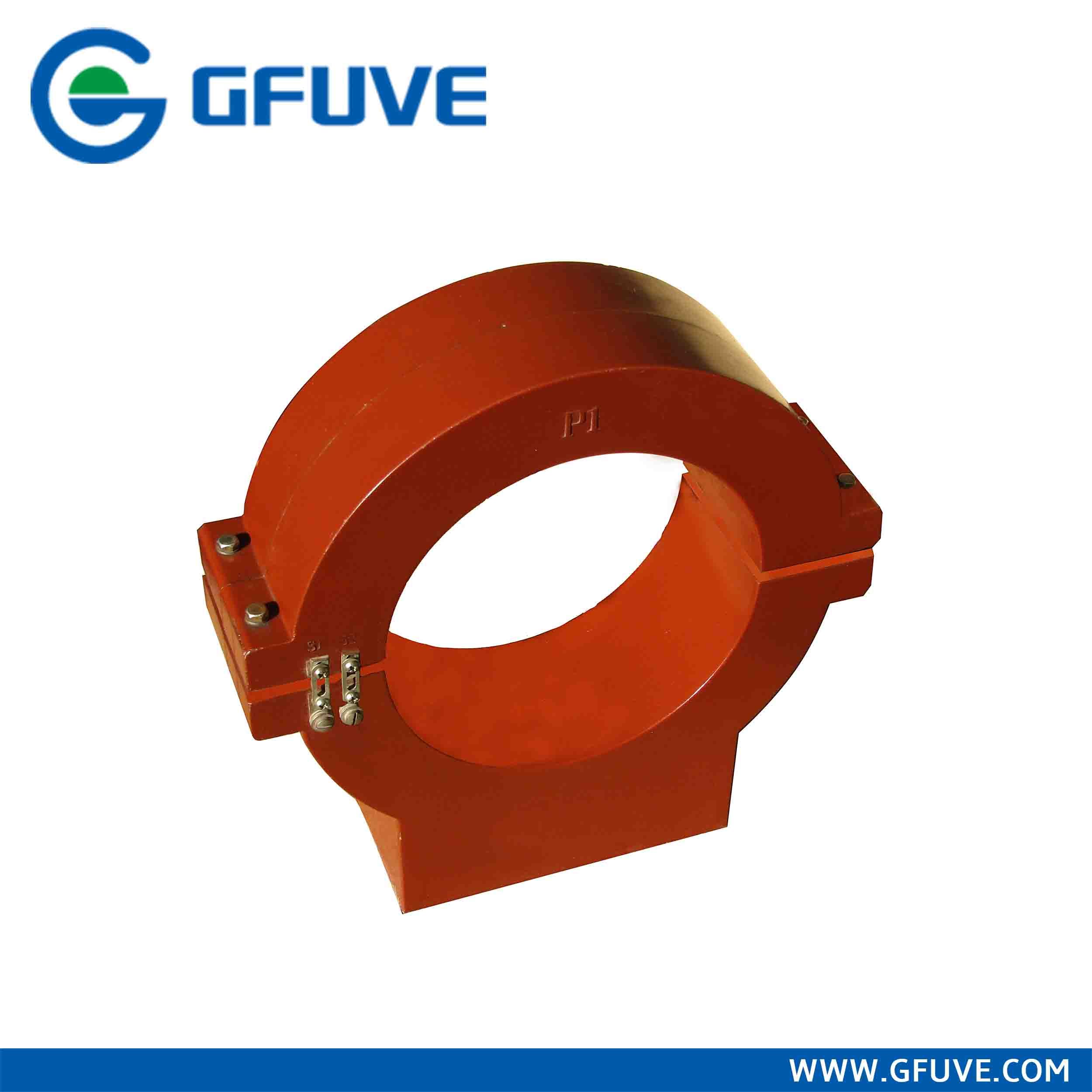

GFLXZK0656-Φ200 split core toroidal current transformers
Product Description
GFLXZK0656-Φ200 split core toroidal current transformers is suitable for current measurement and microcomputer protection of electrical equipment. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The current transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
Parameters

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated primary current	50-600A
Rated load	≤30VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated dynamic current	63kA
Rated insulation level	12/42/75KV
FS	≤10
Mechanical parameters
Material	Epoxy resin
Weight (kg)	25
Operating conditions
Operating temperature	-10°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive andradioactive gas in the air. Permission of long-term operation under rated current.

Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
