Gflzz0956-10c4 Gfuve Top Typt of Current Transformer Manufacturer

Name: Gflzz0956-10c4 Gfuve Top Typt of Current Transformer Manufacturer
Brand: all-electronics-online.com
SKU: 722461012
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 100-500/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFLZZ0956-10C4
Key Words:	Type of Current Transformer
Rated Primary Current:	10-4000A
Rated Load:	≤40va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Key Word:	Type of Current Transformers
Model:	Top Current Transformer Manufacturer
Rated Dynamic Current:	200ka
Rated Short-Time Thermal Current:	100ka, 1s
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

Product Name

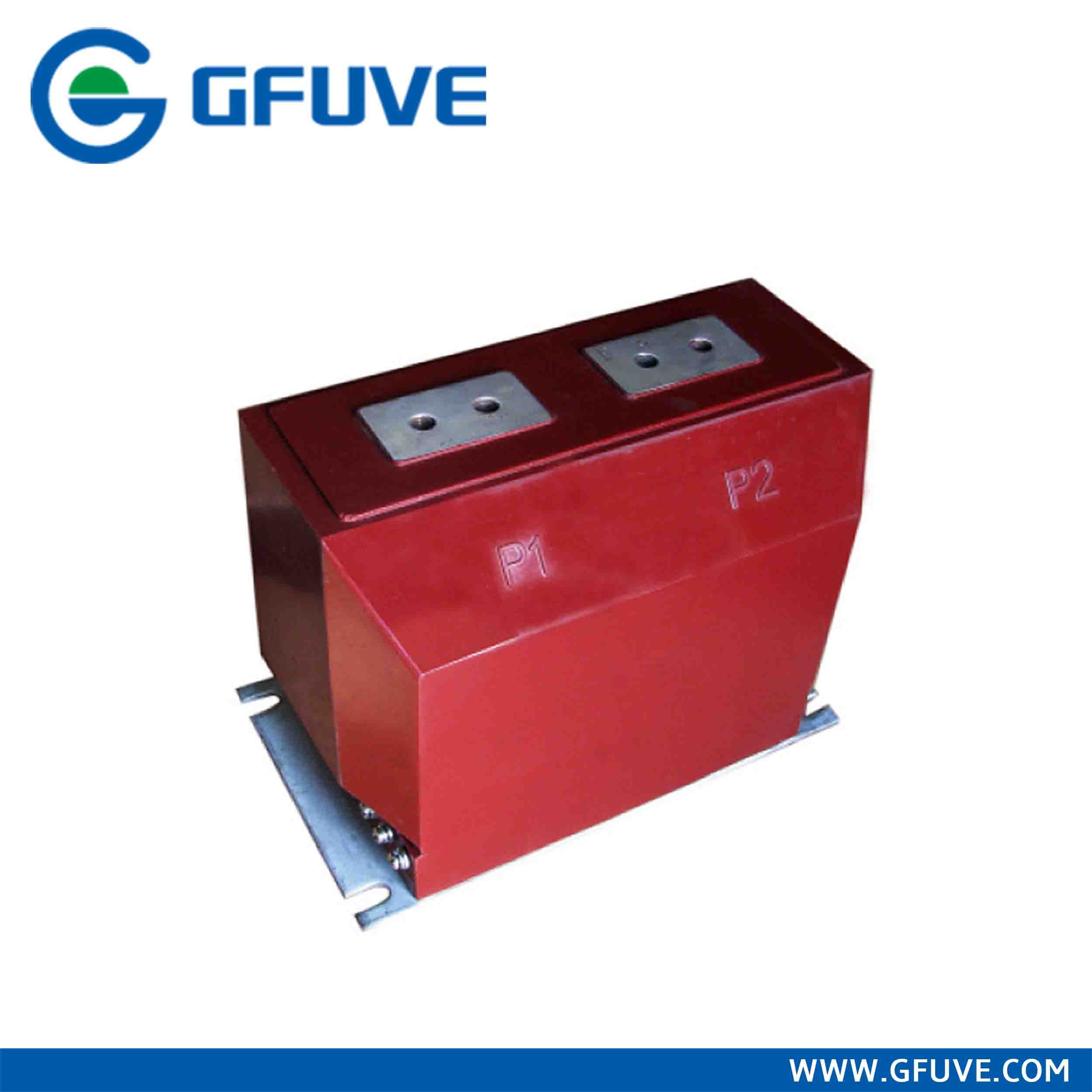

GFLZZ0956-10C4 GFUVE Top Typt Of Current Transformer Manufacturer
GFUVE Top Typt Of Current Transformer Manufacturer,The dry type current transformersGFLZZ0956-10C4 are cast in epoxy resin insulated with big surface creepage distance and are excellent in anti-pollution and humidity protection. With high grade accuracy, it is suitable for protection against large short-circuit current, secondary current output 1A or 5A. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13.
Parameters

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated primary current	10-4000A
Rated load	≤40VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	100kA, 1S
Rated dynamic current	200KA
Rated insulation level	12/42/75KV
FS	≤10
Mechanical parameters
Material	Epoxy resin
Weight (kg)	28
Operating conditions
Operating temperature	-25°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
