| Prod Model: |
GGD |
| Frequency: |
50Hz |
| Rated Veltage: |
380V |
| Rated Current: |
3150A |
| Phase: |
Three |
| Protection Degree: |
IP30 |
| Application: |
Industrial,High-Rise Buildings |
Product Description
Product discription

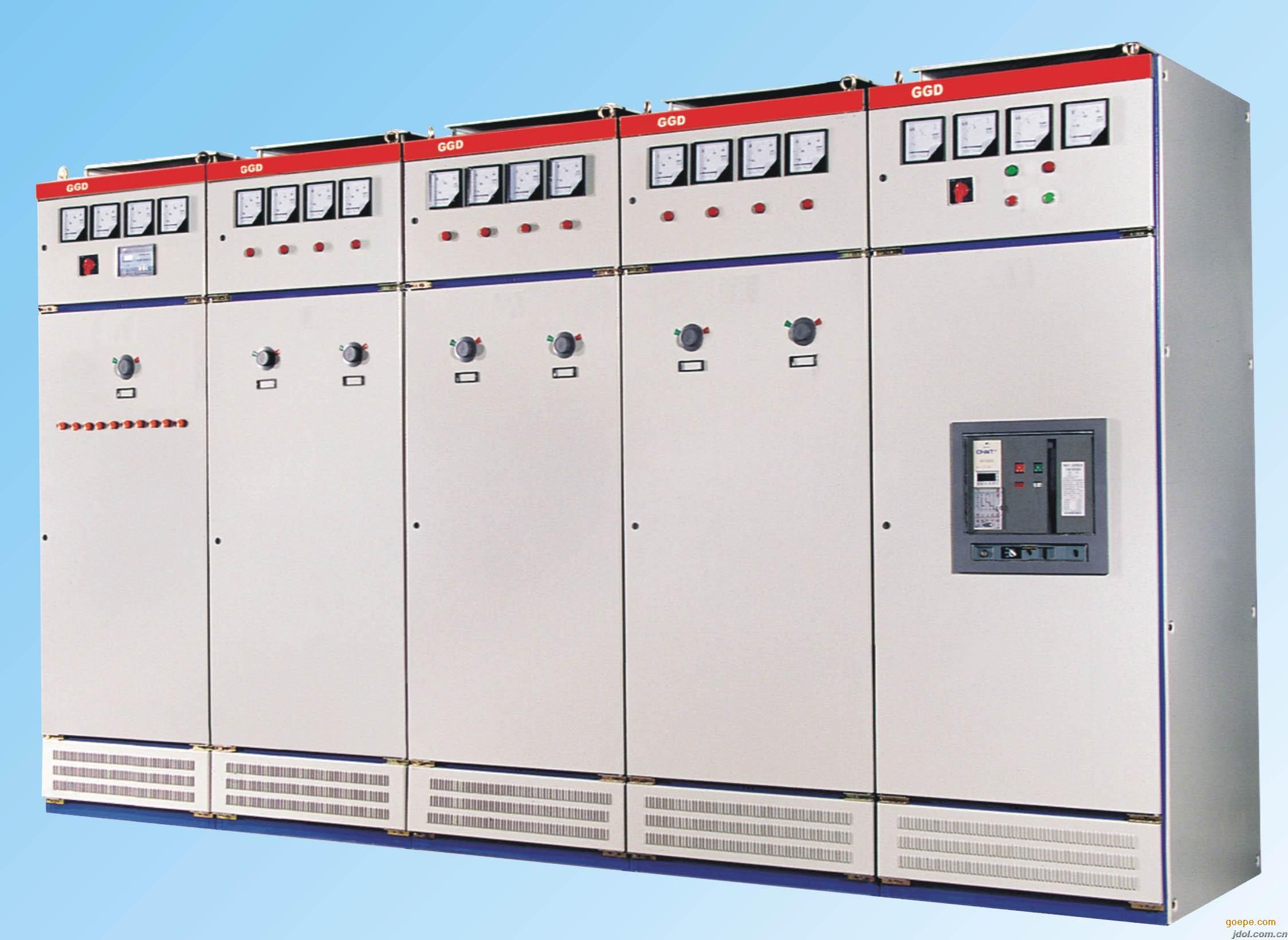

GGD low voltage electrical distribution box has special features of high breaking capacity, dynamic thermal stability
GGD Low-voltage fixed switch equipment can be widely used in the substations, factories, mines, enterprises and the exchange of electricity users 50Hz rated voltage 400KV rated current up to 3150A power distribution system, as power, lighting and power distribution equipment for power conversion, distribution and control purposes.

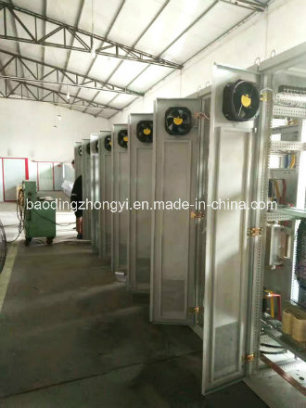

GGD cabinet broke through the old structure of the product , the basic framework for the combination of assembly-type structure, framework, all the structural parts are connected using screw fastening, frame and door panels were treated by the phosphate-coated polyester orange-peel BAKING, All painted parts are not galvanized and after passivation. Shell protection grade IP30, can be installed according to the user premises requirements, IP20 ~ IP40 between the choices of the design of this cabinet has a good natural ventilation system.
GGD cabinet into line methods are commonly used in the upper and lower side of the way into the line, but also designed by the Roof, left, middle, and right position into the line of approach to meet the different types of engineering design into the-line needs, At the same time leaving a fixed position to the cabinet power plants and other special users to install relay protection and automatic devices.
GGD cabinet has special features of high breaking capacity, dynamic thermal stability, and electrical portfolio flexibility and so on.
GG cabinet exercises IEC60439-1 and GB7251.1-1997 standards.
| type | rated voltage(v) | rated current(A) | rated short-circuit breaking current lcs(kA) | rated short-circuit withstand current lcw(kA) | rated peak withstand current lcw(kA) |
| GGD1 | 400 | 1000/630/400 | 15 | 15 | 15 |
| GGD2 | 400 | 1600/1000/800 | 30 | 30 | 30 |
Company Information

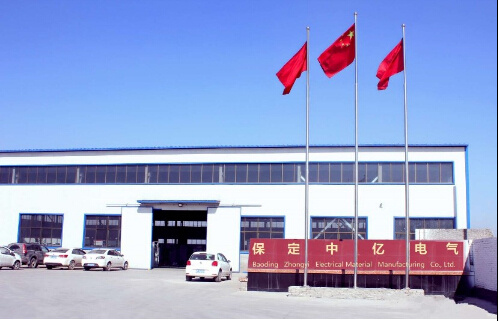

Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.
certification:
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
