Ggd Low Voltage Electrical Capacitor Bank Cubicle Switchgear
| Price: |
US $ 2500-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Rated Voltage: |
380V |
| Rated Current: |
2500A/2000A/1000A/600A/400A |
| Rated Short Circuit Breaking Current: |
15ka/30ka/50ka |
| Rated Peak Tolerant Current: |
30ka/65ka/105ka |
Product Description

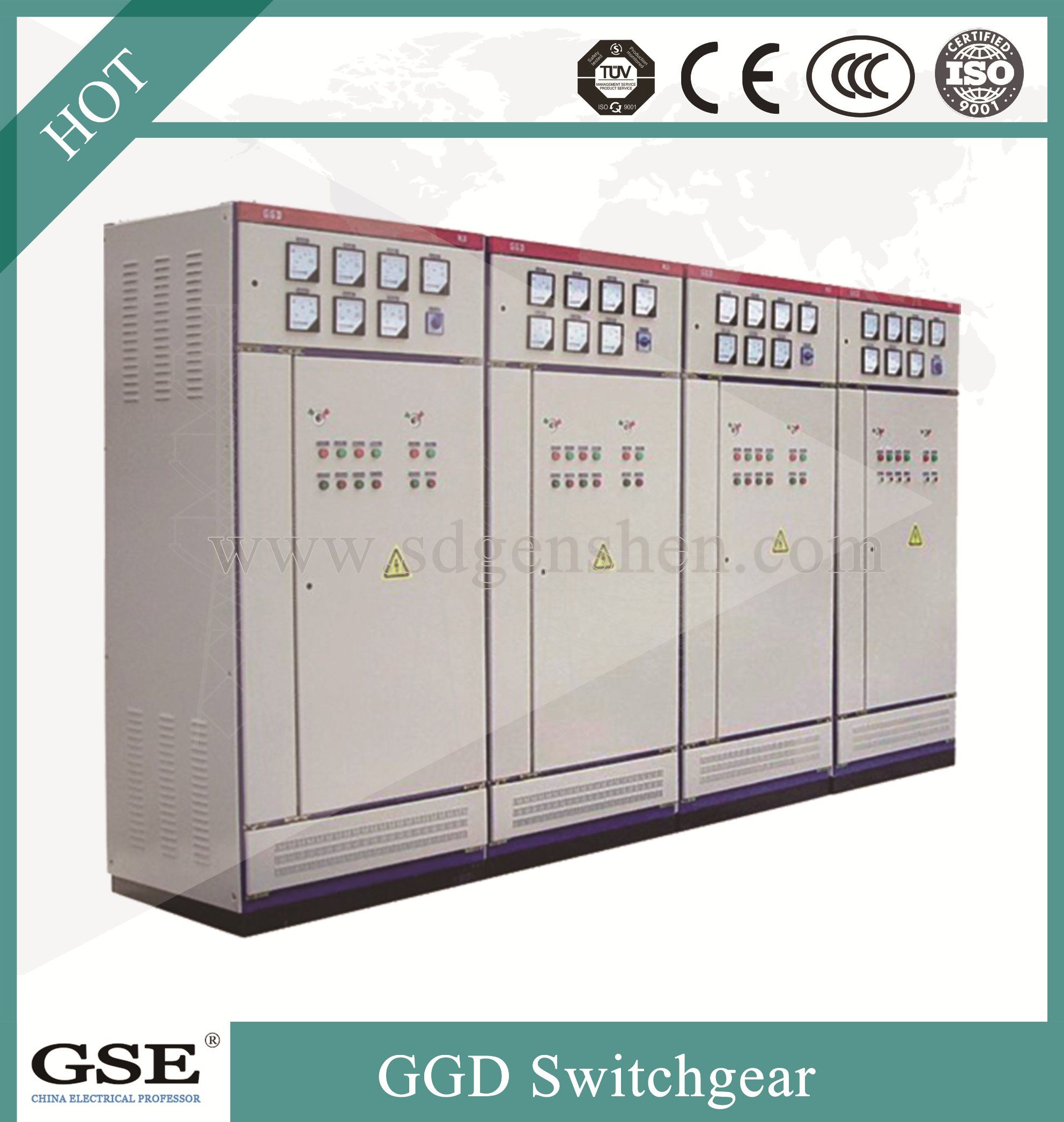

GGD Low Voltage Electrical Capacitor Bank Cubicle Switchgear
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.Product Overview
GGD AC low-voltage distribution cabinet is suitable for power distribution system of AC 50 Hz, rated working voltage 380 V and rated working current 3150 A in power plants, substations, and industrial enterprises, etc. It is used as lighting, electric energy conversion, distribution and controlling of distribution equipment.
GGD AC low-voltage distribution cabinet is designed according to senior management of energy ministry, general electric power users and requirements of design department. The device is a innovative type of low-voltage distribution cabinet that is in line with the safety, economic, reasonable and reliable principles. The product has high capability of breaking, high thermal stability, flexible electrical scheme, convenient combination, seriation, high practicability, innovative structure, high protection grade, etc. It can be used as the upgraded replacement of the low-voltage complete switchgears.
The device conforms to IE439 < Low-voltage complete switchgear and control equipment >, GB7251 < Low-voltage complete switchgear> standards.
2.Normal working environment:| Air temperature around | No higher than 40ºC and lower than -5ºC |
| Average temperature | No more than +35ºC within 24 hrs. Needs to drop the capacity according to actual conditions; |
| Altitude | No more than 2000 m |
| Highest temperature | +40ºC |
| Relative air humidity | No more than 50%.Larger relative humidity is allowed when the temperature is relatively low: ex. +20ºC 90%. Consider the frost effect due to temperature change accidentally; |
| the inclination of the device to the vertical of the ground is no more than 5 degrees, and the whole cabinets are in relatively same level (conforms to GBJ232-82 standard) |
| The device should be installed in a place without violent vibration and impact, and no corrosion to its electric components |
| | |
3.Electric basic parameters| Model | Rated voltage (V) | Rated current (A) | Rated short circuit breaking current (KA) | Rated short-term tolerant current (1s) (KA)
| Rated peak tolerant current (KA) |
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) |
| C | 400 |
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 65 |
| B | 1000 |
| C | 600 |
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 |
| B | 2500 |
| C | 2000 |

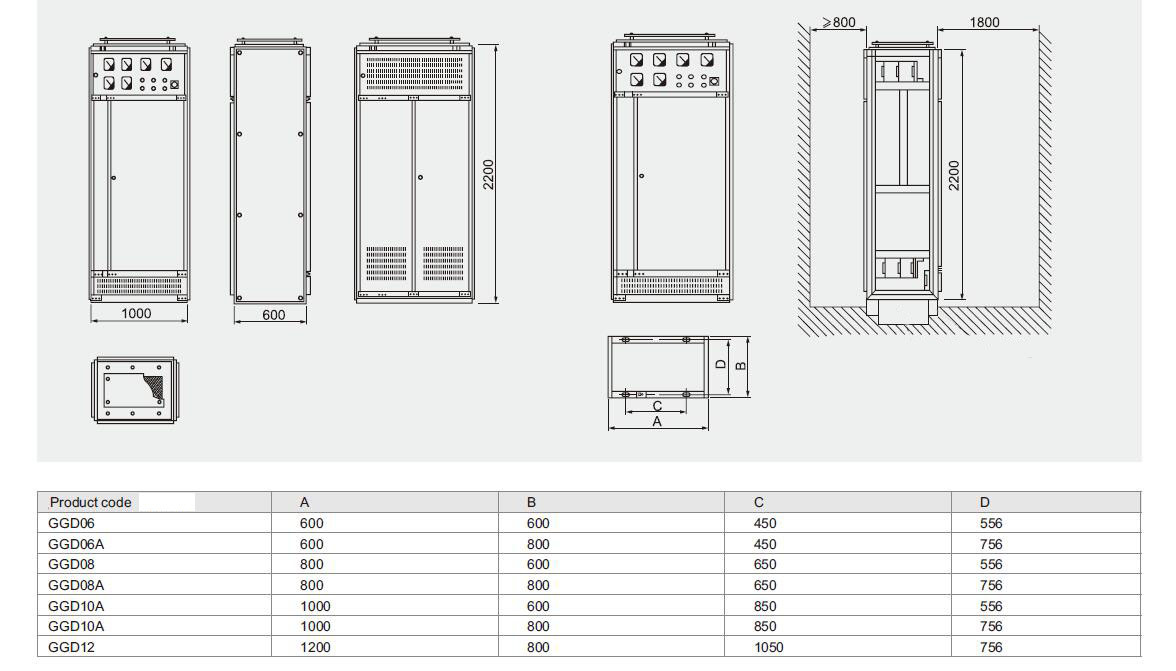

4.Drawn
5.Package

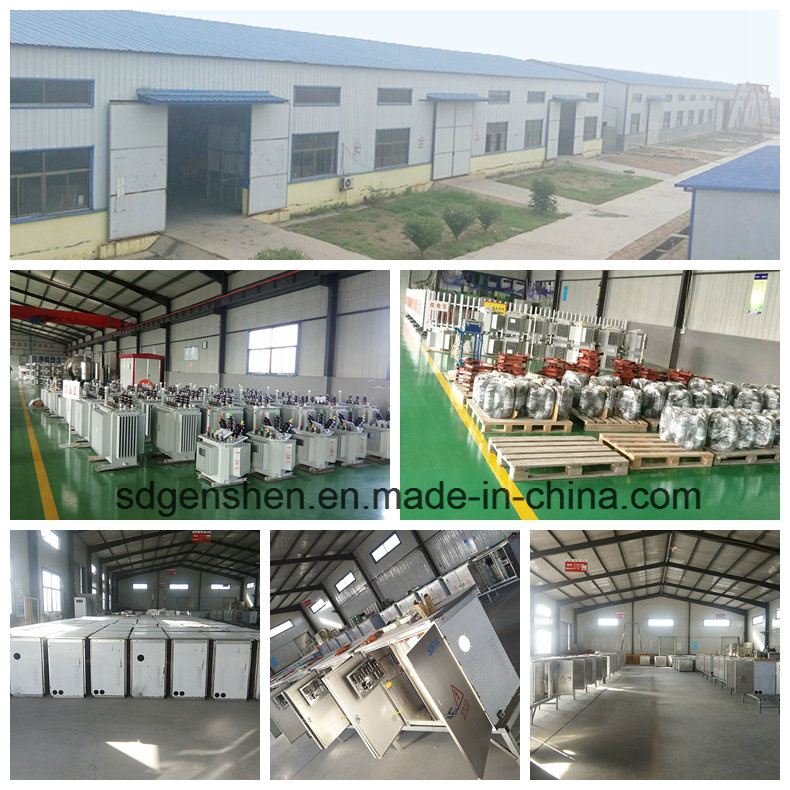

6.Our Company
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
7.Certificate
8.RFQ 8.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
8.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
8.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
8.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
8.5.Q: How can I pay you?
A: T/T, L/C is very well used.
8.6.Q: What about the production?
A: Produce time is 4~6weeks.
8.7.Q: Could you offer some spare parts?
A: Yes, no problem.
8.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
9.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.
The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
The company spirit of "technology and development, quality of survival" principle, adhere to the "customer first, quality first" purpose; Follow the "from the society and serving the society" the principle of "service above all, responsibility weightier than Mount Tai" for the purpose. We are committed to the prosperity and development of electric power and security. We sincerely welcome customers both at home and abroad to come and visit us.
