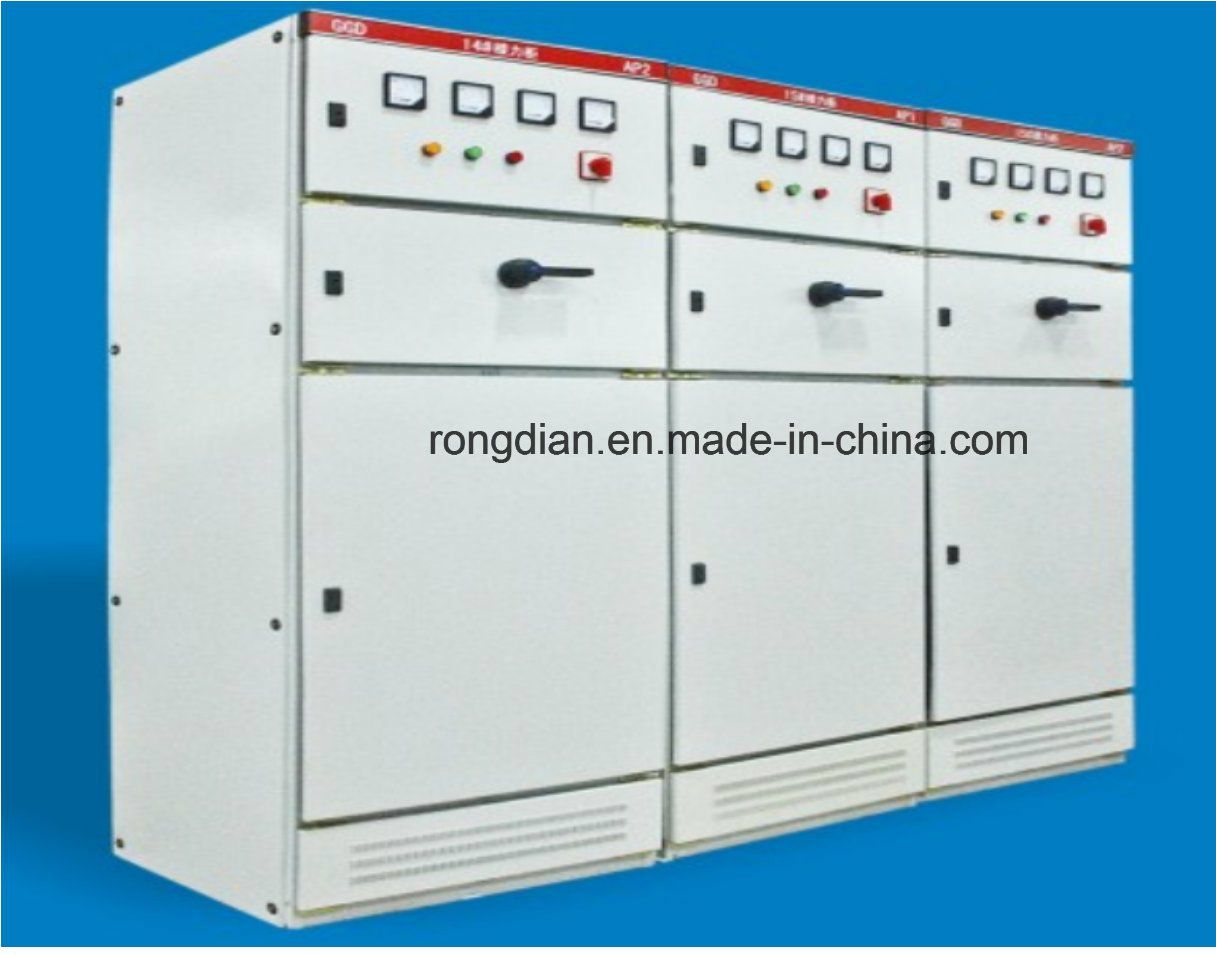

Ggd Model Low Voltage Fixed Switchgear Equipment
| Price: |
US $ 500-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
GGD Model Low Voltage Fixed Switchgear Equipment |
Product Description
1. Product Name:
GGD Model Low Voltage Fixed Switchgear Equipment
2. Product Description
GGD Model Low Voltage Fixed Switch Equipment conform to IEC439 <
> standard, GB7251-97 <> national standard and ZBK36001-89 <> professional standard.
GGD cabinet adopt general cabinet shape. The product has those features of high breaking ability, dynamic thermal stability, flexible electric solution, convenient combination, series, strong practicability, novel structure and high protection level, which contribute to have shorten production cycle, improved efficiency and saved society resource. Also it can be used as upgraded product of low voltage full set switch equipment.

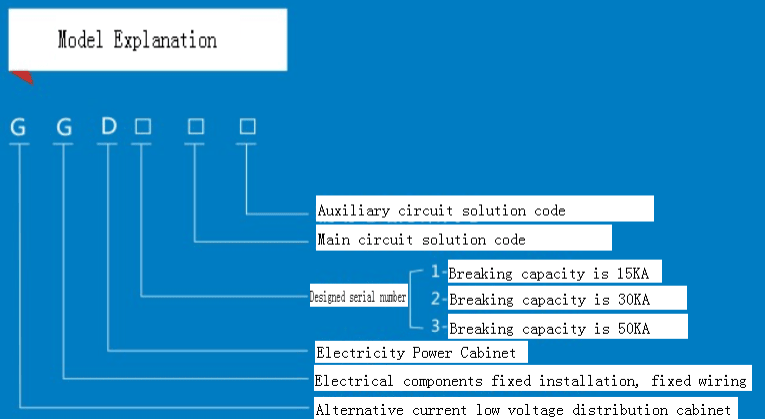

3. Model explanation
4. Performance features:
(1) The cabinet adopt universal type and framework is assembled by partial welded 8MF type steel. Framwork components and special equipped components are supplied by appointed factory, which can ensure cabinet's accuracy and quality.
(2) When the cabinet is designed, the thermal issue is taken into consideration fully. Up and down of cabinet body has designed different quantities scattered heat slot holes, which make the sealed cabinet to form a nature ventilation from bottom to top and it can achieve heat scattered purpose.
(3) The cabinet shape and each parts cut size is adopted by gold ratio method according to demand of industrial product shape designation, which make the cabinet appearance beautiful and fresh new one.
(4) The cabinet door use movable spindle hinge and framwork connected together, which is easy for assmbly and uninstallation.
(5) The head cover of cabinet can be uninstalled when required, which make the main bus line more convenient assembly and adjustment in scene. There are flying rings installed in the four corners of cabinet head cover, which is used for slinging and loading.
(6) It has locking function, self-throwing function and checking status function.
(7) It can support various operating patterns(selectable);
(8) Having communication function: the system can have SR485 or RS232 communicating interface, which can support MODBUS cpmmunication regulation(selectable);
(9) It has intelligentized monitoring function(selectable);
5. Main application:
GGD Model low voltage fixed switch equipment is applied in alternative current frequency 50Hz, rated current 3150A and below distribution power system of power station, transformer substation, industrial and mining enterprises, and other electricity users. It is used as distribution, control and electricity power converted of power, illumination, reactive power compensation and distribution power equipment.
6. Technology parameters| Technology Parameters | | |
| Item | Unit | Parameters |
| Rated Working Voltage | V | 400 |
| Rated Frequency | Hz | 50/60 |
| Rated Current | Horizontal bus line | A | ≤400 |
| Vertical bus line | A | ≤1000 |
| Rated short-time tolerant current(1s) | kA | 50 |
| Rated peak tolerant current | kA | 105 |
| Dielectric Strength | V/1min | 2500 |
| Rated Insulation Voltage | V | 660 |
| Out shell protection level | | IP30/IP40 |
| Shape dimension(Width×Length×Thickness) | MM | (600-1000)×1000×2200 |
Rongdian provide perfect convoy for cities' construction. We are power integration service provider. Great Value, High Efficiency, Building Green Life.
Established in 1995, Shenzhen Rongdian Enterprise Co., Ltd is professional international electronic power equipments manufacturing entity, engaged in all production works inculding R&D and mainly focusing on engineering project contracting, integrated electricity equipments supply at abroad, in the field of power sector including electricity substation, high voltage switchgear, low voltage switchgear, cable tray products and so on. Our factory is located in Shenzhen, Guangdong, China.
Shenzhen Rongdian Enterprise Co., Ltd mainly produce low and high voltage full electric equipment sets. Rongdian have changed fundamentally through around twenty five years developing since the company was established in 1995. Rongdian have realized transformation of scientific service of high tech, high value-added, more kinds full electric equipment sets' design, manufacturing, debugging, installing from single switchgear cabinet production.
Presently, Rongdian is built with modern standard of factory room more 12, 000 square meters, advanced processing machine, elaborate testing device, excellent technical team, and skilled workers. Rongdian is a specialized research and development production and marketing company that establish enterprise management system gradually and improve management level continuously. In order to get perfect quality products, Rongdian carry out developing strategy of powerful combination, absorbing advanced management experience, applying international technology standard to produce our products. Also Rongdian get production certification of full switchgear sets from Guangdong Electronic Machinery Industry Hall and Guangdong Power Industry Bureau two departments.
Rongdian have passed ISO9001 Quality Management System Certification in 1999. Rongdian have become qualified company firstly by CCC certification of low voltage full equipment set in 2003. Rongdian have got the title of Excellent Products Of Chinese Industry many annual years and times.
Our company main products are GCK, CGS, MNS, BFC, GGD, PGL series low voltage full electronic equipment sets, KYN28A, XGN15-12, HXGN15-12, SRC-12 series medium high voltage full electronic equipment sets, YBM-12/0.4 model mobile box-type substation, electric generator compound cabinet, double-power automatic switching device, XL, JX(F), DCX(R), XM(R) series three box products and CMC-3A, CCX series busway products.
Rongdian abide by the spirit of customer first, efficient and pragmatic, innovation and improvement, insisting the policy of quality first, credibility first, forwarding ahead superior service. Basing on the business ideas of people foremost, servicing the society and reasonable price, Rongdian devote first-class products, superior service to customer and repay society with it.
