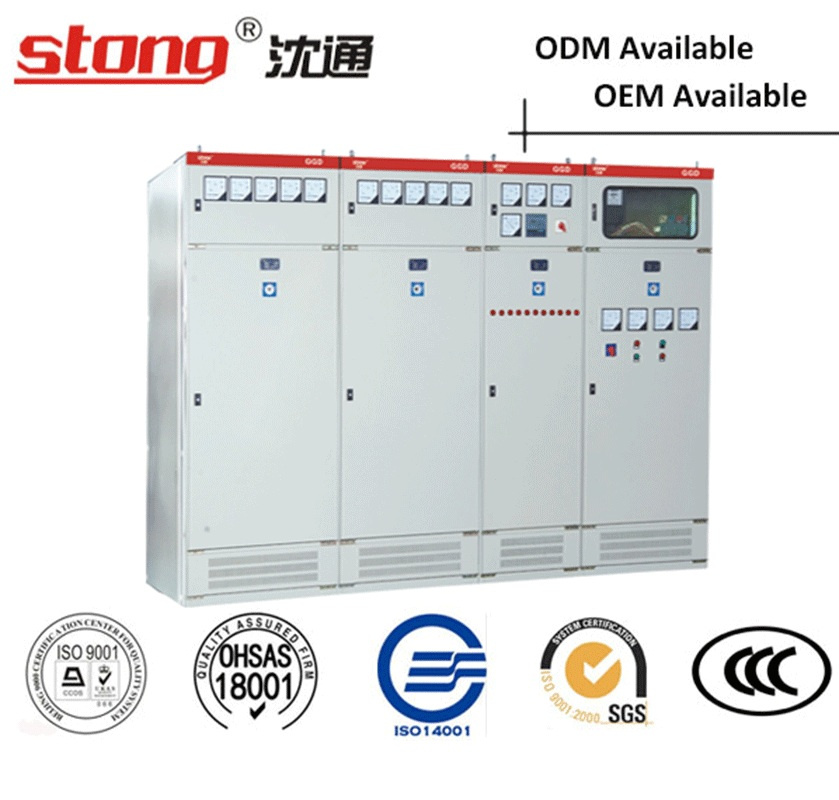

Ggd Series Low-Voltage Withdrawable Switchgear

Name: Ggd Series Low-Voltage Withdrawable Switchgear
Brand: all-electronics-online.com
SKU: 825108605
Availability: InStock
Rating: 4.4 (99 reviews)

Price:	US $ 8000-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GGD
Rated Frequency:	50Hz
Customized:	Available
Attribute:	Electric Cabinet
Function:	Power Transmission
Main Accessory:	Vacuum Circuit Breaker Vcb
Position:	Indoor
Effect:	Transformer
Rated Operating Voltage:	380V
Rated Current:	3150A
Type:	Prefabricated
Structure:	Box
Brand:	Shentong

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Scope of application
GGD Low-voltage withdrawable switchgear is applicable to power plants, power transformer substations, industrial and mining enterprises and other power users as in the AC 50Hz, rated operating voltage 380V, rated current up to 3150A distribution system with the use of electrical energy conversion, distribution and control for power, lighting and power distribution equipment. The breaking capacity of the product is high, rated short-time withstand current is up to 50kA. It has the advantages of flexible circuit scheme, convenient combination, strong practicability, novel structure, etc.
This product is one of the representative products of assembled and fixed panel switch cabinet in our country.
This product is in line with: GB7251 ,IEG439 standards.

CERTIFICATES:

Main technical parameters

Model	Rated voltage(V)	Rated current(A)	Rated short circuit breaking current(kA)	Rated short-circuit withstand current	Rated peak withstand current(kA)
GGD-1000-15	38	A 1000	15	15	30
		B 600(630)
		C 400
GGD-1600-30	38	A 1500(1600)	30	30	63
		B 1000
		C 600
GGD-3150-50	38	A 3150	50	50	105

PLEASE FOLLOW MY LINKEDIN

Guanchu Tao /Joimmy Chow

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
