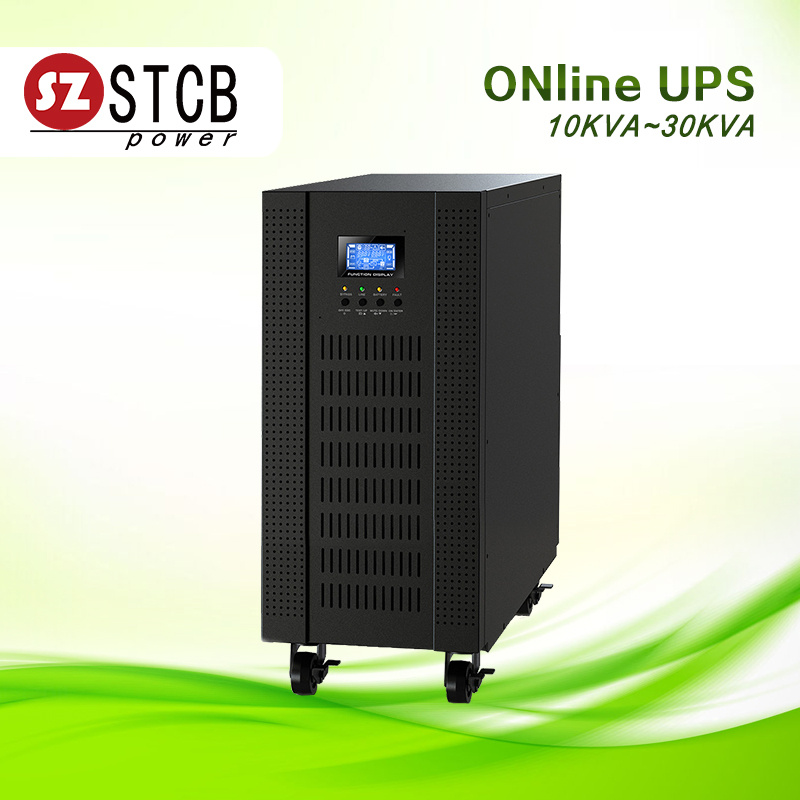

Gh31 20kVA Online UPS with Long-Time Mode and Standard Mode
| Price: |
US $ 650-1800/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GH31 20KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Time: |
0 Ms |
| Power Efficiency: |
0.8 |
| Phase Type: |
3 Phase Input Single Phase Output |
| Battery Type: |
Sealed Lead Acid Maintenance-Free Battery |
| Input Voltage: |
3*380V AC |
| Output Voltage: |
220V AC |
| Warranty: |
12 Months |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Classification: |
Procision Equipment |
Product Description
Gh31 20kVA Online UPS with Long-Time Mode and Standard Mode
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range
5. 50Hz/60Hz frequency converter mode
6. ECO mode operation for energy saving (ECO)
7. Emergency power off function (EPO)
8. Generator compatible
9. SNMP+USB+RS-232 multiple communications
10. 3-stage extendable charging design for optimized battery performance
11. Optional maintenance bypass switch
Specification:
| MODEL | GH 31 10K(L) | GH 31 15K(L) | GH 31 20K(L) | GH 31 30K(L) |
| PHASE | 3 phase in / 1 phase out |
| CAPACITY | 10000VA
8000W | 15000 VA
12000W | 20000 VA
16000W | 30000VA
24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 190-520 VAC (3-phase) @ 50% load
305-520 VAC (3-phase) @ 100% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | ≥ 0.8 @ 100% |
| OUTPUT |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range | 46~54Hz or 56~64Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤ 3 % THD (Linear Load)
≤ 5 % THD (Non-linear Load) |
| Transfer Time | zero |
| Waveform | Pure Sine wave |
| EFFICIENCY |
| AC Mode | 91% | 89% | 89% | 90% |
| Battery Mode | 91% | 88% | 87% | 88% |
| BATTERY |
Standard
Model | Battery Type | 12 V / 9 AH |
| Numbers | 20 pcs | 2*20 pcs | 3*20 pcs |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1A Default, 1A/2A/4A/6A (Adjustable) |
| Charging Voltage | 273 VDC ± 1% |
Long-run
Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 18/20 ajustable |
| Charging Current | 2A Default, 1A/2A/4A/6A (Adjustable) |
| Charging Voltage | 273 VDC ± 1% |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level,
Input/Output voltage, Discharge timer,
and Fault conditions |
| PHYSICAL |
Standard
Model | Dimension | 419*190*688mm | 815*250*826mm | 815*300*1000mm |
| Net Weight | 83kg | 164kg | 164kg | 234kg |
Long-run
Model | Dimension | 419*190*318mm | 815*250*826mm |
| Net Weight | 28kg | 40kg | 40kg | 64kg |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP
manager and web browser |
* Product specifications are subject to change without further notice
