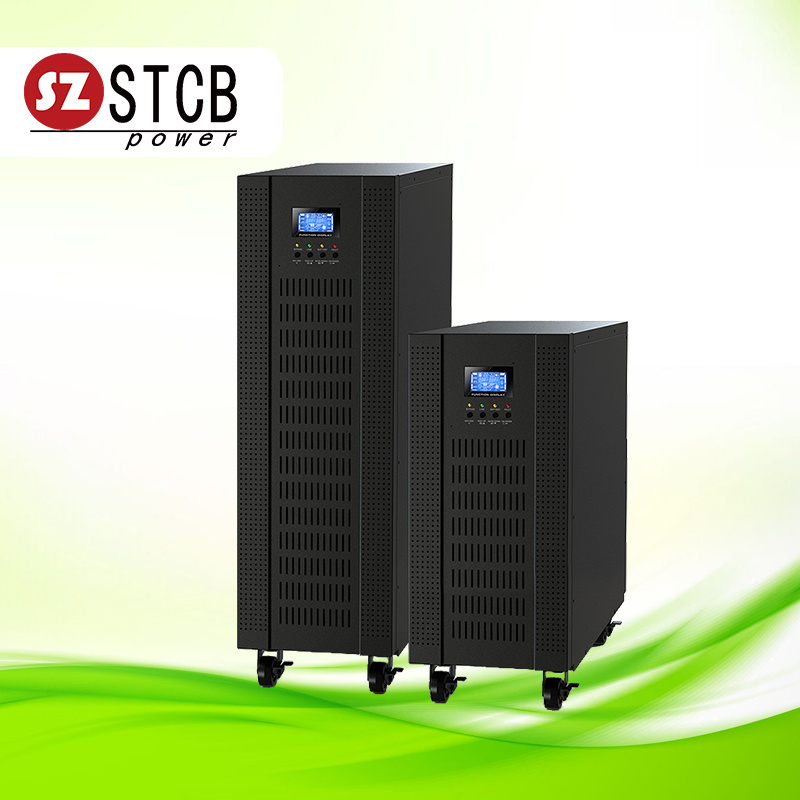

GH33 3 phase ups 380v 10kva~120kva
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. Eco mode operation for energy saving (ECO)
8. Accepts dual power inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Specification:
| MODEL | GH33 10K(L) | GH33 15K (L) | GH33 20K (L) | GH33 30K (L) |
| PHASE | 3 phase in & 3 phase out |
| CAPACITY | 10000VA
8000W | 15000VA
12000W | 20000VA
16000W | 30000VA
24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 3 x 400 VAC (3Ph+N) |
| Frequency Range | 46~54Hz or 56~64Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤2 % THD (Linear Load)
≤5 % THD (Non-linear Load) |
| Transfer Time | zero |
| Waveform | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
Standard
Model | Battery Type | 12 V / 9 AH |
| Numbers | 18/20 pcs | 2* 18/20 pcs | 3* 18/20 pcs |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1A | 2A | 2A | 4A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
Long-run
Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output
voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
Standard
Model | Dimension | 815*250*826 | 815*250*826 | 815*250*826 | 815*300*1000 |
| Net Weight | 109kg | 164kg | 164kg | 234kg |
Long-run
Model | Dimension | 592*250*826 | 592*250*826 | 592*250*826 | 815*250*826 |
| Net Weight | 38kg | 40kg | 40kg | 64kg |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB | Less than 65dB |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web
browser |
| Model | GH 3/3 30K (L) | GH 3/3 40K (L) | GH 3/3 60KL | GH 3/3 80KL |
| PHASE | 3-phase in/3-phase out |
| CAPACITY | 30KVA/27KW | 40KVA/36KW | 60KVA/54KW | 80KVA/72KW |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3 Ph+N) |
| Voltage Range | 190-520 VAC (3-Phase) @ 50% Load;
305-478 VAC (3-Phase) @ 100% Load |
| Frequency Range | 46~54 Hz or 56~64 Hz |
| Power Factor | >= 0.99 @ 100% Load |
| OUTPUT |
| Output Voltage | 3 x 360*/380/400/415 VAC (3 Ph+N) |
AC Voltage Regulation
(Batt. Mode) | ± 1% |
Frequency Range
(Synchronized Range) | 46~54 Hz or 56~64 Hz |
Frequency Range
(Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 2 % THD (Linear Load); <= 5 % THD (Non-linear Load) |
Transfer
Time | AC Mode
to Batt. Mode | Zero |
| Inverter to Bypass | Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| Overload | AC Mode | 100-110% for 10 min, 110-130% for 1 min, >130% for 1 second |
| Battery Mode | 100-110% for 30 seconds, 110-130% for 10 seconds,
>130% for 1 second |
| Parallel Capacity | up to 3 units in parellel |
| EFFICIENCY |
| AC Mode | 95.00% |
| ECO Mode | 98.00% |
| Battery Mode | 92.00% | 92.00% | 92.00% | 92.00% |
| BATTERY |
Standard
Model | Battery Type | 12 V / 7 Ah | 12 V / 9 Ah | N/A |
| Numbers | (16+16) pcs x 2 strings | (16+16) pcs x 2 strings |
| Recharge Time | 9 hours recover to 90% capacity |
Charging
Current (Max.) | 2A |
| Charging Voltage | ± 218 VDC |
Long-run
Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 32~40 pcs (Adjustable) |
Charging
Current (Max.) | 4A | 8A |
| Charging Voltage | ± 13.65V x N (N=16~20) |
| INDICATORS |
| LCD Display | UPS status, Load level, Battery level,
Input/Output voltage, Discharge timer, and Fault |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension | 815 x 300 x 1000mm | N/A |
| Net Weight (kgs) | 205 | 230 |
| Long-run Model | Dimension | 815 x 300 x1000mm | 790 x 360 x 1010mm |
| Net Weight (kgs) | 60 | 61 | 108 | 113 |
| ENVIRONMENT13 |
| Operation Temperature | 0-40 °C |
| Operation Humidity | < 95% and non-condensing |
| Noise Level | Less than 75dB @1Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008,
Windows 7/8/10, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
