Gir-12 Gas Insulated Metal Sealed Electrical Switchgear
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GIR-12 |
| Annual Leakage Rate: |
<0.05% |
| Protection Level: |
IP67 |
| Sf6 Rated Pressure: |
0.04 |
| Mechanical Service Life: |
10000 Times |
Product Description
Company Introduction
New Concept Electric Inc. was founded in October 2001, with a rigistered capital of 57 million Yuan. The company now covers an area of 77601 square meters (116 acres), and has a plant area of 20000 square meters. It is a national high-tech enterprise that specializes in the research and development, manufacturing, sales and service of intelligent medium & high voltage switchgear. Also the company is a leading manufacturer for solid insulated switchgear in China.
Certifications shown below:
The GIR-12 type intelligent switchgear is manufactured by our company with independent intellectual property rights, which is based on the development demands of smart grid and adopts the design concept of being "intelligent, energy-saving, environmentally-friendly and maintenance-free". It integrates such functions as measurement, control, protection and communication etc, with high intelligent degree. This product is suitable for 50Hz, 12kV electric power systems, extensively applied to industrial and civil cable ring networks and power supply terminal projects; it is a top choice to guarantee safe, reliable, economical and efficient operation of the power network.
This product conforms to IEC60298, GB3906-2006, GB/T 11022-1999, DL/T 593-2006, GB 1984-2003 standards, etc.Major Technical Parameters are shown below: | Rated voltage | 12kV |
| Rated current | 630A |
| Rated frequency | 50Hz |
| Rated short-duration (1 min) power frequency withstand voltage | 42/48kV |
| Rated short-circuit breaking current | 20kA |
| Rated short-duration withstand current (4s) | 20kA |
| Rated lightning impluse withstand voltage(to earth/break) | 75/85kV |
| Rated short-circuit making current (peak value) | 50/63kA |
| Rated peak withstand current | 50kA |
| Rated load breaking current | 630A |
| Mechanical service life of vacuum circuit breaker | 10000Times |
| Rated close circle breaking current | 630A |
| 5% rated load open current | 31.5A |
| Rated transfer current | 1700A |
Using Environment | Description | Unit | Using Environment Value |
| Surrounding Air | Max Temperature | ºC | +50 |
| Min Temperature | -50 |
| Max Daily Temperature Difference | K | 30 |
| Altitude | m | ≤2000 |
| Solar Radiation Intensity | W/cm2 | 0.1 |
| Pullution Class | | IV |
| Icing-Thickness | mm | 10 |
| Humidity | Average Value of Daily Relative Humidity | % | ≤100 |
| Average Value of Monthly Relative Humidity | ≤95 |
| Earthquake Torelance Ability | | Degree | ≤8 |

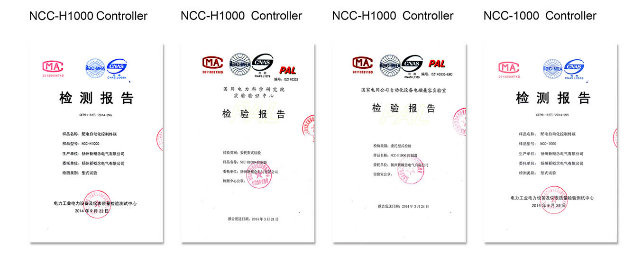

Test reports
Main Functions:Protective Function - It will indentify fault current automatically; realize instantaneous current cutoff, time limited current break, regular flow, directional flow, overvoltage, under-voltage, single phase ground protection of small current ground system, and cooling load start and inhibition of open circuit, and other functions.
Measurement Function - Measure three-phase current, three-phase voltage, active power, reactive power, active energy, reactive energy, peak/valley electricity, power factor and frequency, ect.
Controlling Function - It can realize on-site operation and remote control. Meanwhile, achive fault location of circuit, fault isolation automatically, resume power supply for the circuit without fault rapidly by requirement; realize automatic load shedding under low frequency, capacitor automatic cutting, automatic cutting of backup power, and other controlling functions.
Communication Function - It can report fault, operation and controlling information to appointed personnel through wireless public network or special communication network; support various kinds of communication ways and agreement; realize setting parameters modification by handhold PDA. The controller releases the instruction of self-inspection from PDA and feedback the self-inspection information to PDA terminal.
Data Record Function - Record, save and run operation and fault information automatically.
Synchronous Switching On/Off Function - According to the features of load, it searches zero crossing point automatically; adapt itself to the discreteness of switch parameter and impact of environment factors; realize synchronous switching on/off; restrain over voltage of operation and inrush phenomenon effectively, especially suitable for switching capacitor and transformer.
Intelligence Function - It can carry out on-line conprehensive analysis of power network parameters, on-line performance parameter measurement of circuit breaker, and on-line programming; cooperate with the main station pf power distribution automatic system; realize the function of remote control management of switch device, and on-site, remote or hierarchical control type power distribution automation system.
Load Management Function - Load management terminal cooperates with AVR series intelligent compact solid insulation switch equipment. It is able to realize load management function, solve the electricity fees issue effectively for scattered residents customer, temporary customers, and the customers who fail to pay the fee frequently.
Main Features:1. The main switch and grounding switch has the mechanical locking function.
2. Operate on the switch by special operation handle. The action speed and strength of contact shall be confirmed by operation spring. It will not change because of different operator. When the switch goes from switch-on to switch-off, the electric arc is extinguished by the speed of contact and arc chute. Cut off electric arc current immediately.
3. The switch operation hole can be locked by obvious lock so as to prevent wrong operation.
4. For the critical parts, it uses alumium alloy and other non-ferrous material. For the other parts, it uses high carbon steel through 8 steps processing and high adhesive baking of outdoor military plastic powder so as to ensure mechanism performance.
5. The interlocking is fised directly on the main driving axle of main structure and grounding structure. It ensures consistent location of interlocking indicator and switch so as to avoud wrong operation.
6. Electric operation structure on the base of manual operation mechanism, it adds a set of motor and attachment, i.e. it can be extended as electric operating mechanism.
7. Foreign technology is used for the switch. It uses imported products for the critical parts, special arc high conductive contact with silver process for dynamic and static contacts. It improves its comprehensive conductivity greatly. In the meantime, the temperature rise is lower than similar imported products.
8. There is 105mm effective distance for dynamic and static contacts, which take the leading position of the country. It makes maximum guarantee on insulating property of the product under zero gage pressure.
9. It can install FTU so as to realize instantaneous current cutoff, time-limited current curoff, regular flow, and other protection function, and achieve remote control of ring network switch equipment.Invention patents
The New Concept Electric Inc. (NCE) was founded in October 2001, with a registered capital of 57 million Yuan. The company now covers an area of 77, 601 square meters (116 acres), and has a building area of 80, 451 square meters. It is a state-level and high-tech company that specializes in the research and development, manufacturing, sales and service of intelligent medium & high voltage switchgear. Our main products include 12kV & 24kV outdoor permanent magnetic vacuum flash intelligent breaker & recloser, 40.5kV & 72.5kV outdoor digital permanent magnetic vacuum breaker, 126kV outdoor digital modular permanent magnetic vacuum breaker, 12kV, 24kV & 40.5kV permanent magnetic vacuum compact intelligent solid-insulated switchgear and management system of distribution automation, etc.
Our company attracts a pool of talents and has a strong technical force. More than 60% employees have junior college degree or above. We are widely recognized by the industry and the society in the research and innovation of digitization and intelligence of the outdoor breaker, automation and intelligence of power distribution network as well as solid-insulated switch, etc, so that we also participate in the formulation of industry standards.
Our company has a sound organization and standard management practices. We have General Manager's Office, Chief Engineer Office, Departments of Finance, Marketing, Sales, Technology, R & D, Production, Quality Control Customer Service, Supply, Planning, Human Resources, Legal Supervision, Asset Management and Construction, and Department of Audit. In addition, we have CPC branch, trade unions, and the Communist Youth League branch. The company has passed ISO9001: 2008 quality management system, ISO14001: 2004 environmental management system, OHSAS18001: 2007 Occupational Health and Safety Management System Certification. We have complete and standardized systems and processes, and improve them timely in accordance with the actual situation.
Our company has a complete set of production testing equipments, hence the reliable products. We manufacture key components and outsource common components. We are equipped with Green Intelligent Solid-insulated Ring Main Unit Production Line, Intelligent Permanent Magnetic Vacuum Breaker Production Line and SMT Automation Production Line. Our equipments include AOI System, X-ray Test Lab for Insulating Parts, Temperature-rise Test Lab, High Voltage Endurance Test Lab, Partial Discharge Test Lab, EMC Test Lab, Temperature & Humidity Test Lab, Vibration Test Lab, Advanced Relay Protection Tester, Mechanical Properties Tester for Switches, CNC Hydraulic Press Brake, CNC Turret Punch Press, CNC Swing Shear and AGP Epoxy Forming Machine. By far, our products have reached 26 provinces, autonomous regions and the overseas market. Having withstood more than 10 years harsh test of low and high temperature, humidity, high altitude and heavy pollution, our products have been widely acclaimed by our customers.
We place customer satisfaction in the paramount position. Therefore, we have established our customer service network covering the whole country, with hard-working and professional team that is very responsive to customer needs.
The company insists that innovation is the motivation and source of development, and constantly upgrades ideas, updates thoughts, improves systems and mechanisms as well as innovative products.
The company is open and transparent to the outside. We keep exchanges and cooperation with higher institutions home and abroad, actively absorb and apply advanced ideas and technologies.
We will always pursue the principle of "people first, service foremost" and the spirit of "Innovation, Honesty, Excellence and Excelsior". We are confident to be the top-notch company with state-of-the-art products, and make a contribution to the development of smart grid.
