Gis Ring Type LV Cable CT or Current Transformer (30~600)

Name: Gis Ring Type LV Cable CT or Current Transformer (30~600)
Brand: all-electronics-online.com
SKU: 757675495
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	US $ 58-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDZC-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LV:	Low-Voltage Transformers
Current Transformer:	CT
Gis Ring Type:	Cable CT
China:	Factory
Indoor:	5 ~ 40 Oc
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

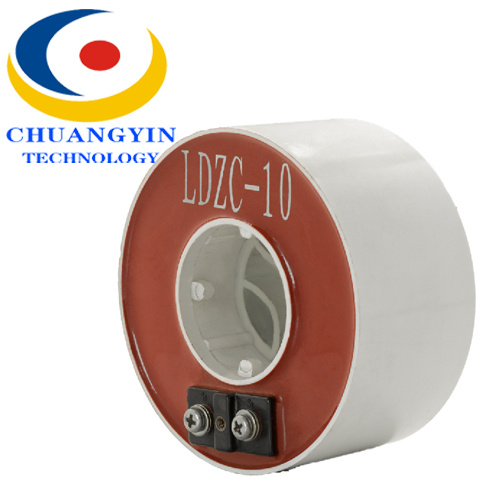

LDZC - 10c current transformer (CT),adopts the new type of high permeability core, has the high accuracy of measurement.Transformer secondary windings are fully enclosed vacuum pouring in flame retardant plastic shell, a cable through the hole, at the bottom of the mounting bracket for fixed, convenient and quick, especially suitable for ring network cabinet is rated voltage 10kv cable for current measurement, signal acquisition, relay protection.

Technical Data:
1. 5 ~ 40 ºC ambient temperature
2. The installation place: indoor

Specification

1. LDZC1-11

Model	LDZC1-11C			LDZC1-11P		LDZC1-11CP
Purpose	Measuring Current Transformer			Protective Current Transformer		Double winding Current Transformer
Ratio current ratio	Accuracy class and rated burden (VA) COS=0.8
Ratio current ratio	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
30
50			1
75		1	1.5
100		2.5	5		2		1
200		5	5	1.5	2.5		2.5
300	2.5	5		2.5		1.5	2.5		2.5
400	5	7.5		3.75		2.5	5		2.5
500	5	10		5		2.5	5	2	3.75
600	5	10		5		3.75	7.5	2.5	5

2. LDZC2-11

Model	LDZC2-11C			LDZC2-11P		LDZC2-11CP
Purpose	Measuring Current Transformer			Protective Current Transformer		Double winding Current Transformer
Ratio current ratio	Accuracy class and rated burden (VA) COS=0.8
Ratio current ratio	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
30			1.5
50		1.5	2.5		1.5
75		2.5	5		2.5		1.5
100		2.5	5		3.75		2.5
200	2.5	5	7.5	3.75	5		3.75	1.5	2.5
300	5	7.5		5		2.5	2.5	2.5
400	7.5	10		7.5		5	7.5	3.75
500	10	15		10		5	10	5
600	10	15		10		5	10	5

Note: Upon requset we are glad to offer transformers according to other technical specs.
