GJFJBV Indoor 2 Cores Flat Twin Duplex Fiber Optic Cable

Name: GJFJBV Indoor 2 Cores Flat Twin Duplex Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 824006365
Availability: InStock
Rating: 4.4 (128 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-500
Length:	According to Requirement
Color:	According to Requirement
Trade Term:	Fob Shenzhen
Application:	Communication
Certification:	ISO9001
Type:	SM&mm
Sheath Material:	PE,PVC,LSZH

Product Description

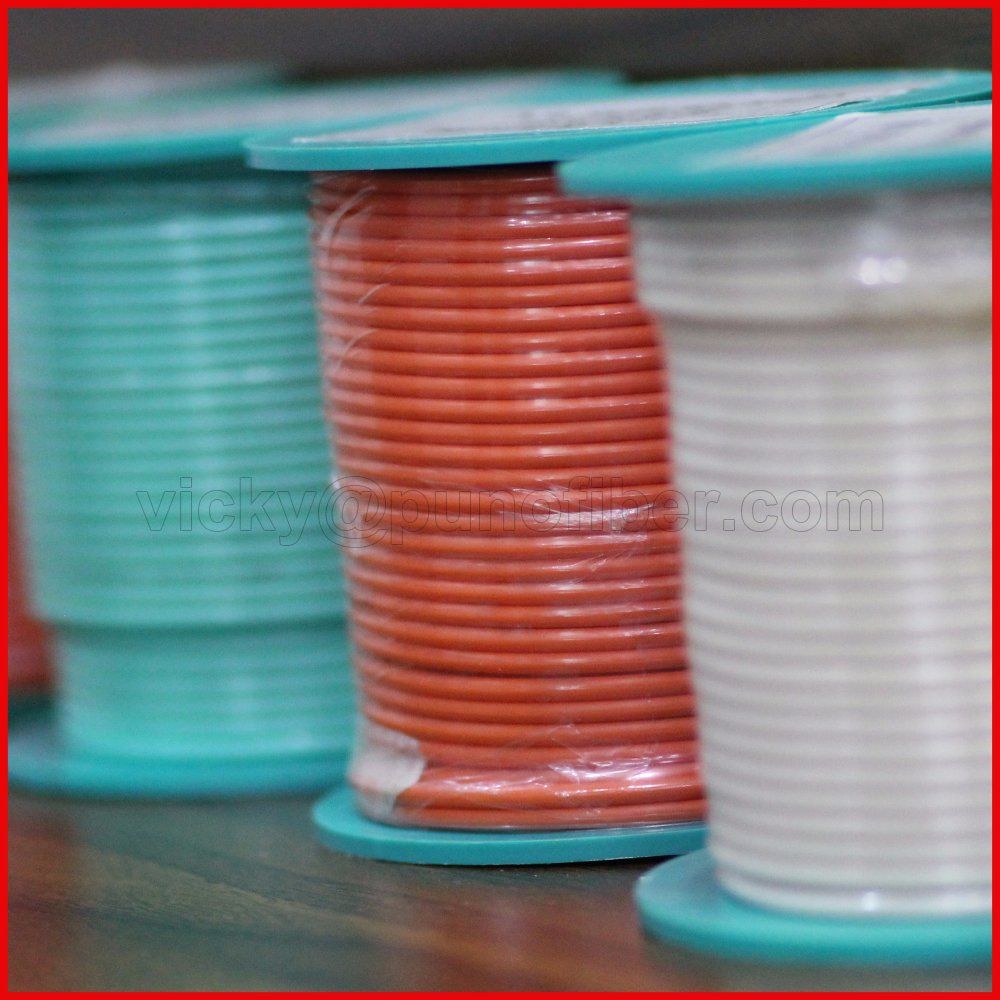

GJFJBV Indoor 2 Cores Flat Twin Duplex Fiber Optic Cable
Application:
√ Duplex optical cable jumper or pigtail;
√ Indoor riser level and plenum level cable distribution;
√ Interconnect between instruments,communication equipments.

Characteristic:
√ 1 or 2 cable,soft flame-retardant jacket;
√ Excellent stripping performance of tight buffer fiber;
√ Suited to SM fiber and MM fiber;
√ Tight buffer(900μm or 600μm );
√ Aramid yarn as strength member makes cable have excellent tensile strength;
√ All dielectric structure protect it from electromagnetic influence;
√ Scientific design with serious processing art.

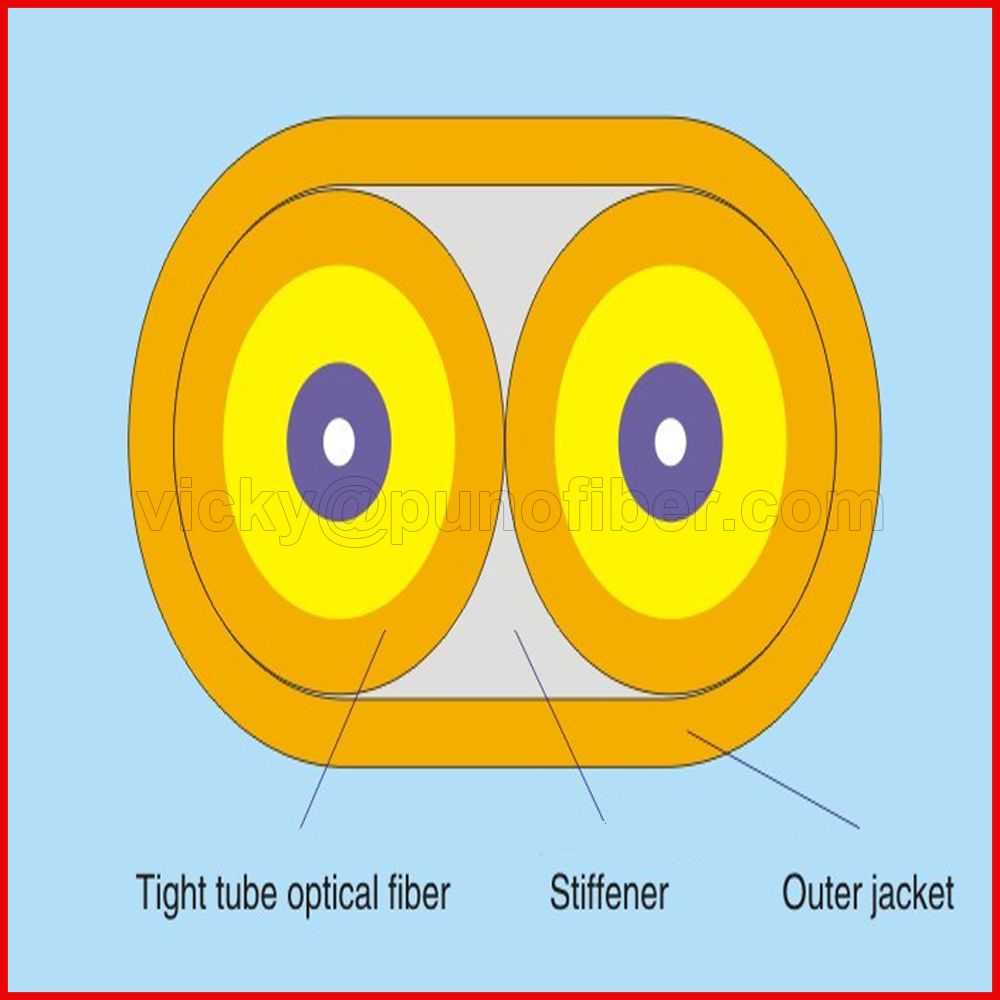

Geometrical Characteristics

Cable Type	φ3.0	φ2.4	φ2.0	φ1.8
Cable Dimension (mm)	4.00±0.1/6.60±0.2	3.6±0.1/6.0±0.2	3.1±0.1/5.0±0.2	2.8±0.1/4.6±0.2
Cable Weight(kg/km)	17	12	9	8
TBF Diameter(μm)	900±50			600±50
Fiber Type(core/cladding dimension)	8.3/125, 50/125, 62.5/125

Mechanical Characteristics

Tensile strength (N)	Long Term	100
	Short Term	200
Crush resistance(N/100)	Long Term	100

	Short Term	500
Bending Radius(CM)	Dynamic	20×H (H: Cable Axis)

	Static	10×H (H: Cable Axis)
