GJFJV Indoor Distribution Fiber Optic Cable

Name: GJFJV Indoor Distribution Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 668767101
Availability: InStock
Rating: 5 (120 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Indoor
Type:	G.652D/G.657/Om1/Om2/Om3
Connection Structure:	GJFJV
Certification:	ISO9001:2008,Ce,SGS,RoHS
Brand:	Horizon/OEM
Sheath Material:	PE/LSZH

Product Description

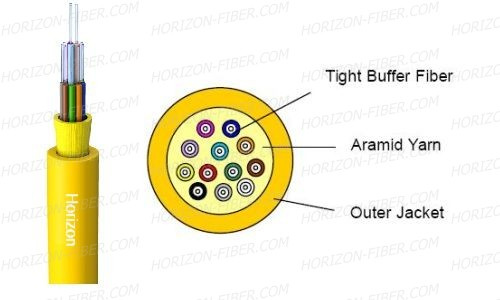

Mulit-purpose distribution fiber optic cables use several diameter 900μ M flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of agamid yarn as strength member units, and the cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant ) jacket.

Features:
1. Tight buffer fiber ease of stripping
2. The jacket anti-corrosion, anti-water, anti-alltraviolet retardations, flame retardant and harmless to environment etc;
3. Excellent flame retardants jacket and anti-torsion
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Excellent performance of anti-torsion
6. All dielectric structure protect it from electromagnetic influence
7. Scientific design with serious processing art.

Application:
1. Multi optical fiber jumper;
2. Indoor any purpose cable distribution;
3. Backbone distribution cable in building.

Fiber count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile (N) Long/ Short term	Crush (N/100mm) Long/ Short term	Min. Bend Radius (mm) Dynamic/ Static
4	5.0	19.0	130/440	200/1000	20D/10D
6	5.2	23.0	130/440	200/1000
8	5.5	26.0	130/440	200/1000
12	6.5	36.5	200/660	200/1000
16	7.5	44.5	200/660	200/1000
24	8.2	54.5	200/660	200/1000
Note: 1. The min. bend radius (static) is 15mm when G657 fiber is used. 2. Range of temperature: -20~+6 0 C, Installation Temperature: -5°c ~ +60 °c 3. D is outer diameter of the round cable 4. Tight-buffered fiber is 0.9mm
