| Prod Model: |
GJFJV indoor cable |
| Item Name: |
96 Core GJFJV Indoor Cable |
| Keywords: |
Fiber Optic Cable/Fiber Optics |
| Core Qty: |
1/2/4//6/8/12/24/48/96/144 Core Is Available |
| Outside Jacket: |
PVC or LSZH |
| Tube Type: |
Tight or Loose |
| Connector Available: |
Yes |
| Package: |

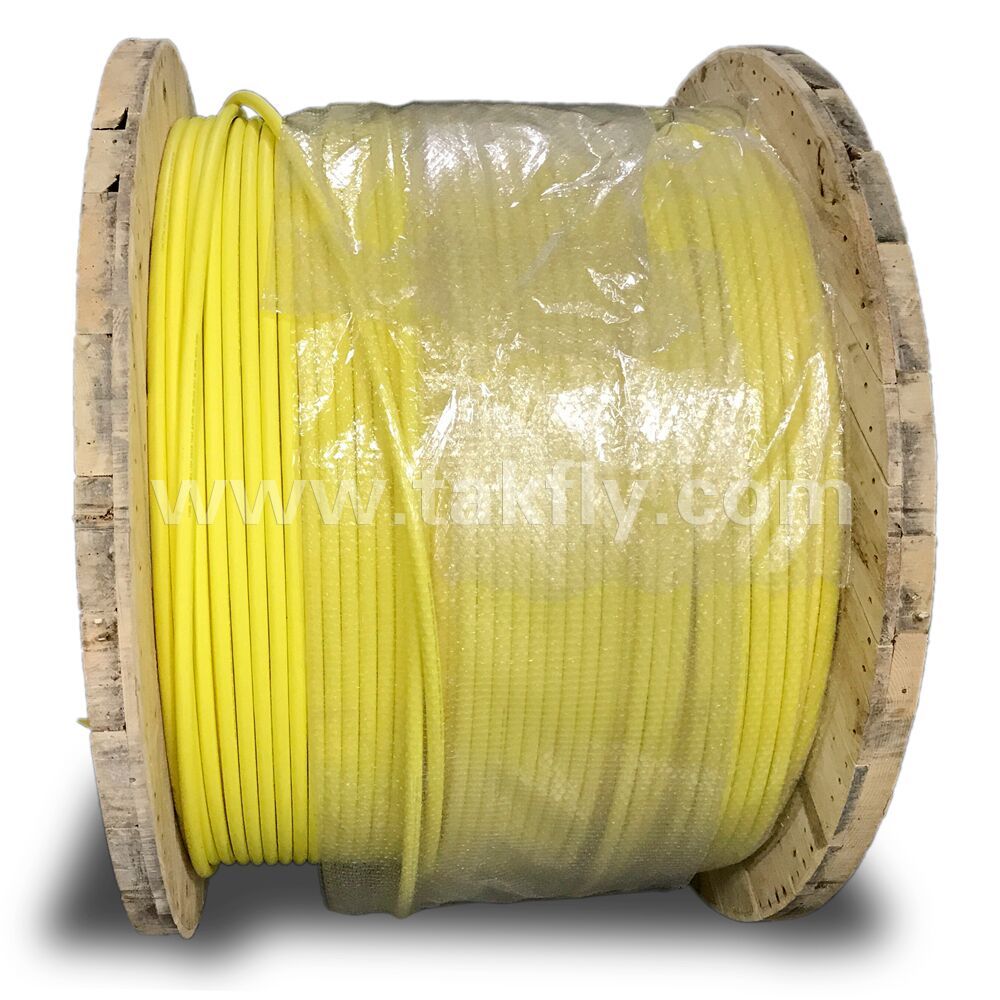

2000m in Wooden Drum |
| OEM: |
Acceptable |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description
GJFJV Single mode indoor 96 core fiber optic cable G652dGJFJV Multi-Purpose Distribution fiber optic cable cable use several 900um flame-retardant tight buffer fiber as optical
communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable
is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

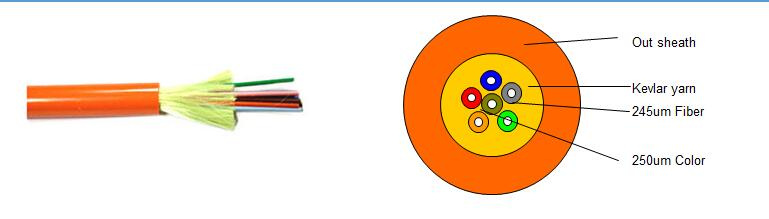

Below is the structure
Product Construction:
Fiber type
900um tight buffer fibers
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.
Strength Member:
Kevlar yarns
Outer Jacket:
PVC or LSZH
Features:
- Tight buffer fiber easy of stripping.
- Tight buffer fiber have excellent flame-retardant performance.
- Aramid yarn as strength member make cable have excellent tensile strength.
- The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Applications:
- Indoor any purpose cable distribution.
- Backbone distribution cable in a building.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Note :This datasheet can only be a referance,but not a supplement to the contract.

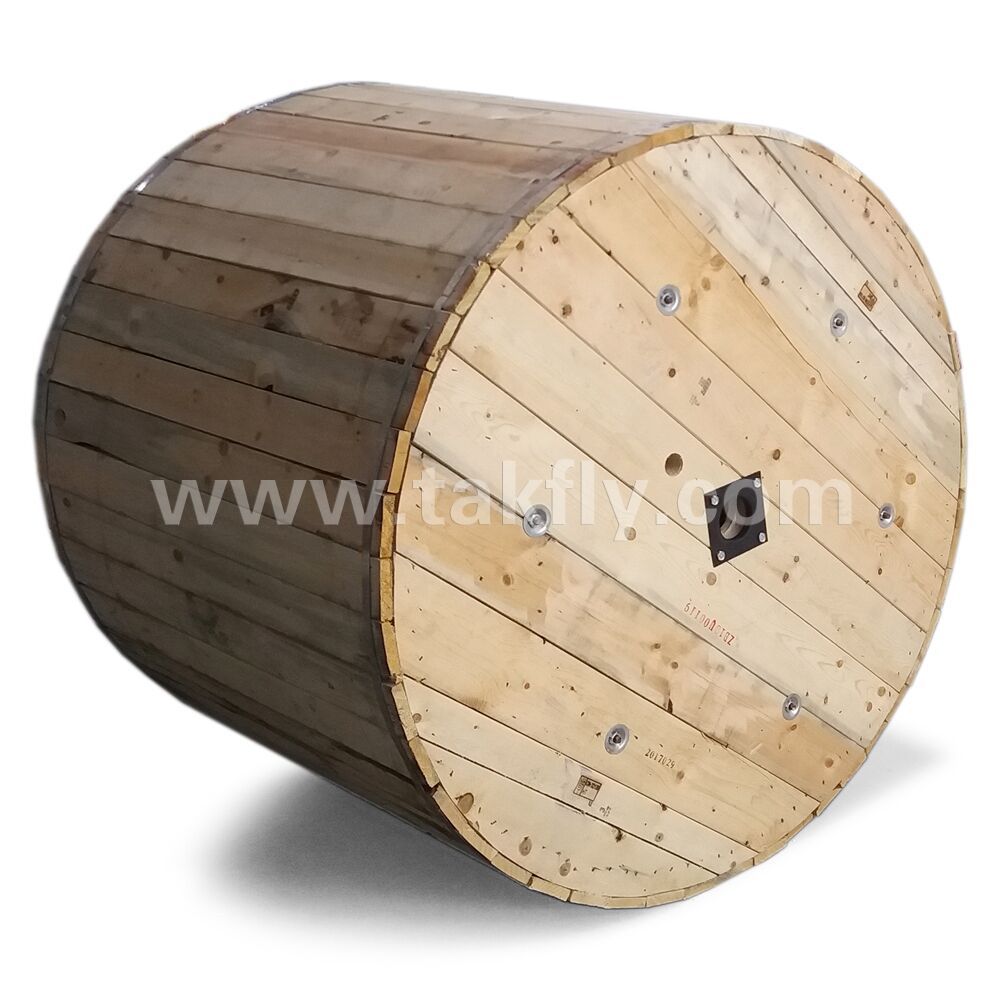

Package
Why choose Takfly.
1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Any question about this fiber optic cable,please leave me an inquiry or contact me directly.

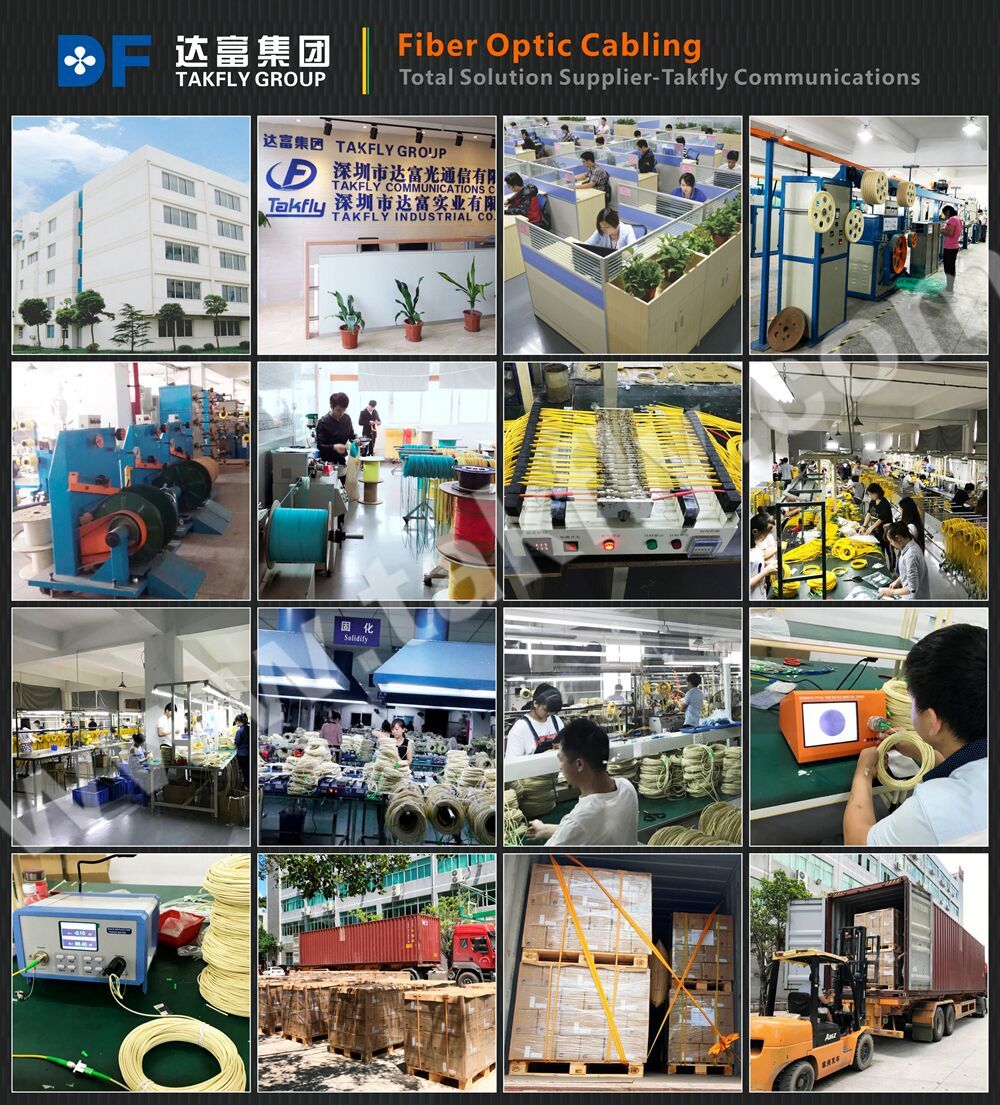

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
