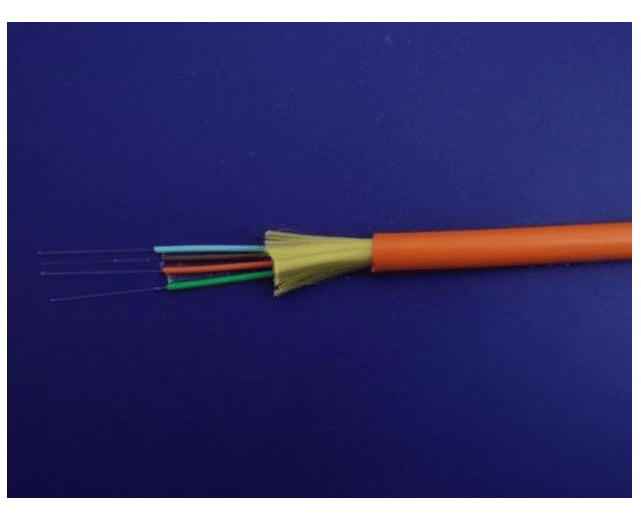

Gjpfjh 4 Core Indoor Sm Distribution Fiber Optic Cable

Name: Gjpfjh 4 Core Indoor Sm Distribution Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 694239122
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 0.29-0.35/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV-4B1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	5 mm
Strength:	Kevlar
Jacket:	PVC
Fiber:	Sm
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Hello, This NINGBO GEYIDA Cable Technology Co., Ltd from China. Feel free to contact me if you have any needs of Fiber Optic Cable.

Packaging & Delivery

Packaging Detail: Wooden drum or plastic drum
Delivery Detail: Within 12 days after we get the full payment

Specifications
Multi core fiber optical cable GJPFJV
1. UL, CE, RoHS, ISO9001 psaaed
2. G652D fiber
3. Large scale professional manufacturer

FEATURES:
Product Model: GJPFJV
Construction features: 2-12 core single mold or Multimode tight buffer fiber, Aramid yarn stiffener, jacket could adopt PVC or LSOH material
Applicable Temperature: -20° C~+60° C
Performance and Features:
2-12cores tight tube optical fiber cable, high modulus aramid fiber strength member, and high-performance outer sheath material

Applications
1. Access Network
2. Telecom/CATV Systems
3. FTTX

Why choose us:
1. Competitive price
2. Fast delivery
3. Free sample provided
4. Longtime warranty
5. Reliable quality, OEM service available
6. Professional product and technical support
7. Prompt answer for any question or inquiry
8. Value-added service: Except good products, we can provide good services on logistic and other help you may need

Fiber Count	Cable Dimension(mm)		Cable Weight(kg/km)		Tensile(N)		Crush(N)		Min.Bend Radius(mm)		Range of Tem(degree)
	Cable Dimension(mm)		Cable Weight(kg/km)		Tensile(N)		Crush(N)		Min.Bend Radius(mm)
	250μm Coating Layer	450μm Coating Layer	250μm Coating Layer	450μm Coating Layer	Long Term	Short Term	Long Term	Short Term	Dynamic	Static
1	2.0	2.0	3.5	3.6	40	80	100	500	50	30	-20~+60
2	2.0	2.0	3.7	3.8	40	80	100	500	50	30
4	2.0	2.4	3.9	5.2	40	80	100	500	50	30
6	2.4	3.5	5.2	10.2	60	100	100	500	60	30
8	2.8	4.0	7.4	12.4	60	100	100	500	60	30
12	3.0	4.5	8.2	14.4	60	100	100	500	60	30
Note:	All the values in the table, which are for reference only, are subject to change without notice;
Note:	The minimun bend radius(static) is 5D when G.657 fiber is used.

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
