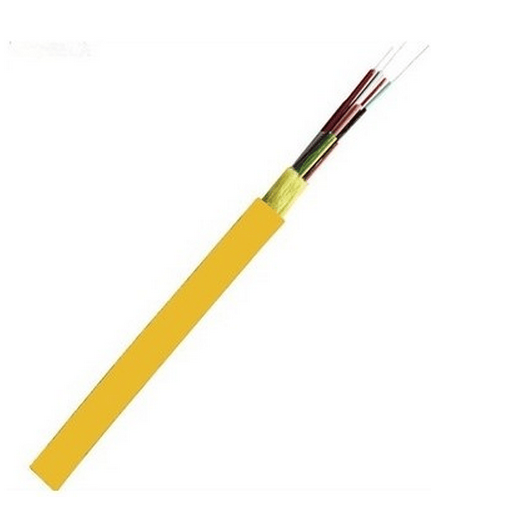

Gjpfjv-12 Core Indoor Distribution Fiber Optic Cable

Name: Gjpfjv-12 Core Indoor Distribution Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 694239832
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 1.0-1.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV-12A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	6.2 mm
Jacket:	PVC
Strength:	Kevlar
Fiber:	Sm
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Packaging & Delivery

Packaging Detail: Wooden drum or plastic drum
Delivery Detail: Within 12 days after we get the full payment

Specifications
Multi core fiber optical cable GJPFJV
1. UL, CE, RoHS, ISO9001 psaaed
2. G652D fiber
3. Large scale professional manufacturer

FEATURES:
Product Model: GJPFJV
Construction features: 2-12 core single mold or Multimode tight buffer fiber, Aramid yarn stiffener, jacket could adopt PVC or LSOH material
Applicable Temperature: -20° C~+60° C
Performance and Features:
2-12cores tight tube optical fiber cable, high modulus aramid fiber strength member, and high-performance outer sheath material

Applications
1. Access Network
2. Telecom/CATV Systems
3. FTTX

Why choose us:
1. Competitive price
2. Fast delivery
3. Free sample provided
4. Longtime warranty
5. Reliable quality, OEM service available
6. Professional product and technical support
7. Prompt answer for any question or inquiry
8. Value-added service: Except good products, we can provide good services on logistic and other help you may need

Options:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Cable Dimension: The nominal cable dimension, or other contracted dimension;

Fiber Count	Cable Dimension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Tem(ºC)
			Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
4	5.0	19.0	130	440	200	1000	20D	10D	-20~+60
6	5.2	23.0	130	440	200	1000
8	5.5	26.0	130	440	200	1000
12	6.5	36.5	200	660	200	1000
16	7.5	44.5	200	660	200	1000
24	8.2	54.5	200	660	200	1000
36	9.0	72.0	200	660	200	1000
48	10.5	90.0	200	660	200	1000
Note:	All the values in the table, which are for reference only, are subject to change without notice;
Note:	The minimun bend radius(static) is 5D when G.657 fiber is used.
