Shenzhen Superb Heater Technology Co., Limited >> Glass Fiber Thread Screws K Type E Screws Thermocouple M6 / M5 / M8 Threads

Glass Fiber Thread Screws K Type E Screws Thermocouple M6 / M5 / M8 Threads

Glass Fiber Thread Screws K Type E Screws Thermocouple M6 / M5 / M8 Threads
Price: Negotiable/Piece
Min Order: 20/Piece
Pay Type: T/T,Western Union
Prod Model: K Type E

Product Description

  • Product Details

  • Product Description



    Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

    A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.



    MODEL:



    Thermocouple & rtd
    Ref No.WRTemp
    Thermal element materialsB: PtRh30-Pt6
    R: PtRh13-Pt
    S: PtRh10-Pt
    N: NiCrSi-NiSi
    K: NiCr-NiSi
    E: NiCr-CuNi
    J: Fe-CuNi
    T: Cu-CuNi
    0~1600C
    0~1300C
    0~1300C
    0~1000C
    0~900C
    0~600C
    0~500C
    0~350C
    Ref No.WZPTemp
     PT100
    PT1000
    CU50
    -200~+650C
    -200~+650C
    -200~+650C
    Pairs quantity of sensor wireSimplex
    Duplex
    Ways of Mounting & Fixing1:without fixing device
    2:fixed thread
    3: movable flange
    4: fixed flange
    5: right-angle movable flange
    6:fixed thread in wimble shape protection tube
    Types of connections box2: anti-spray (Protection class: IP65)
    3: water-proof (Protection class: IP55)
    Types of sensor endG: variable section
    K: sheathed elements
    T: flexible sheathed elements
    Diameter of protection tube0:¢16
    1:¢20
    2:¢16 high aluminum material
    3:¢20high aluminum material
    Measuring range0~1600 degree Celsius
    ShippingBy air, sea, express
    Sample time2~7 days
    Manufacture time7~30 days depending on order quantity

    Detailed Images:

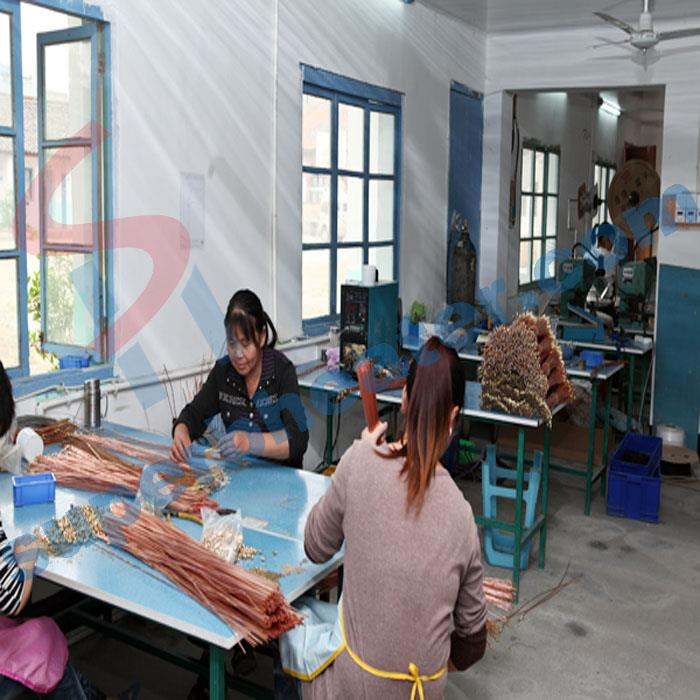

    Work shop:

    Raw material:


    Packing and shipment:


Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
