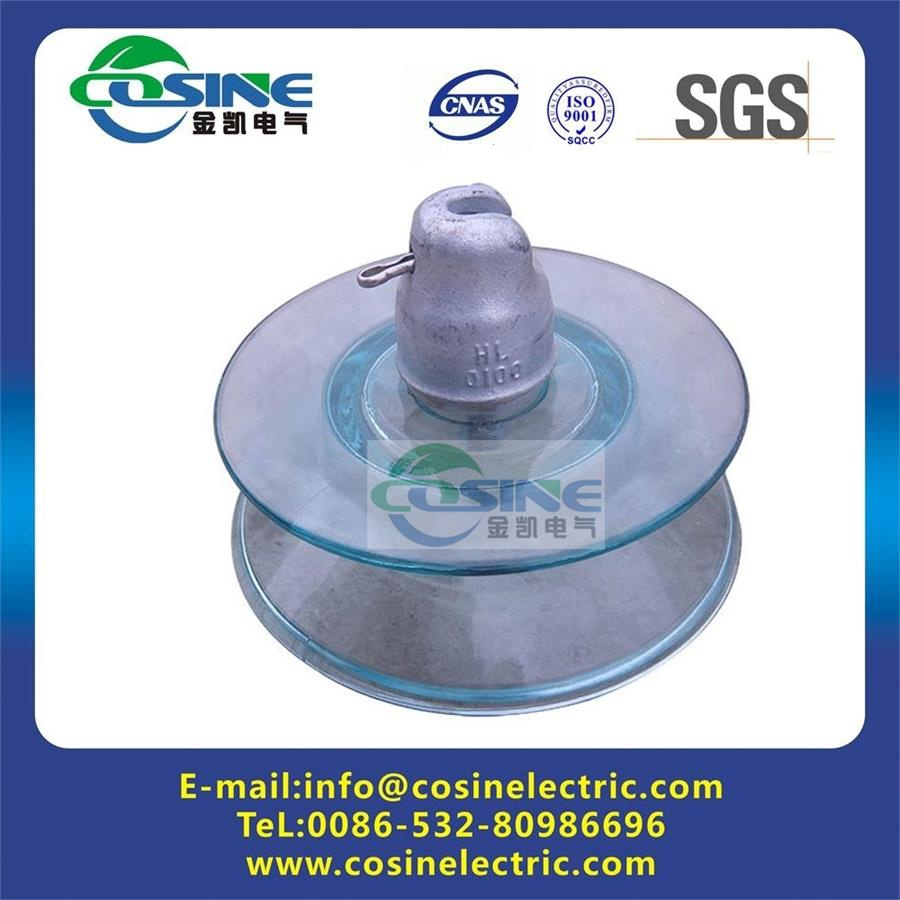

Glass Insulator U100bp-Anti-Fog

Name: Glass Insulator U100bp-Anti-Fog
Brand: all-electronics-online.com
SKU: 716417002
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U70BP, U120BP, U160BP, U210BP, U240BP
Toughened Glass Insulator:	Anti-Fog
Application:	High-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Toughened Glass
Color:	Light Green
Brand:	Cie or OEM

Product Description

Standard glass insulator, Anti-Fog/Anti-Pollution glass insulator, Aerodynamic glass insulator all could be supplied in our company, if you have any demand for the Anti-fog/Anti-Pollution toughened glass insulator, pls contact us freely.

1. Name: Anti-fog/Anti-Pollution Toughened Glass Insulator

2. Standard of the Anti-fog/Anti-Pollution Toughened Glass Insulator: IEC & ANSI &BS standard

3. Mechanical strength range of the Anti-fog/Anti-Pollution Toughened Glass Insulator: From 70KN to 550KN

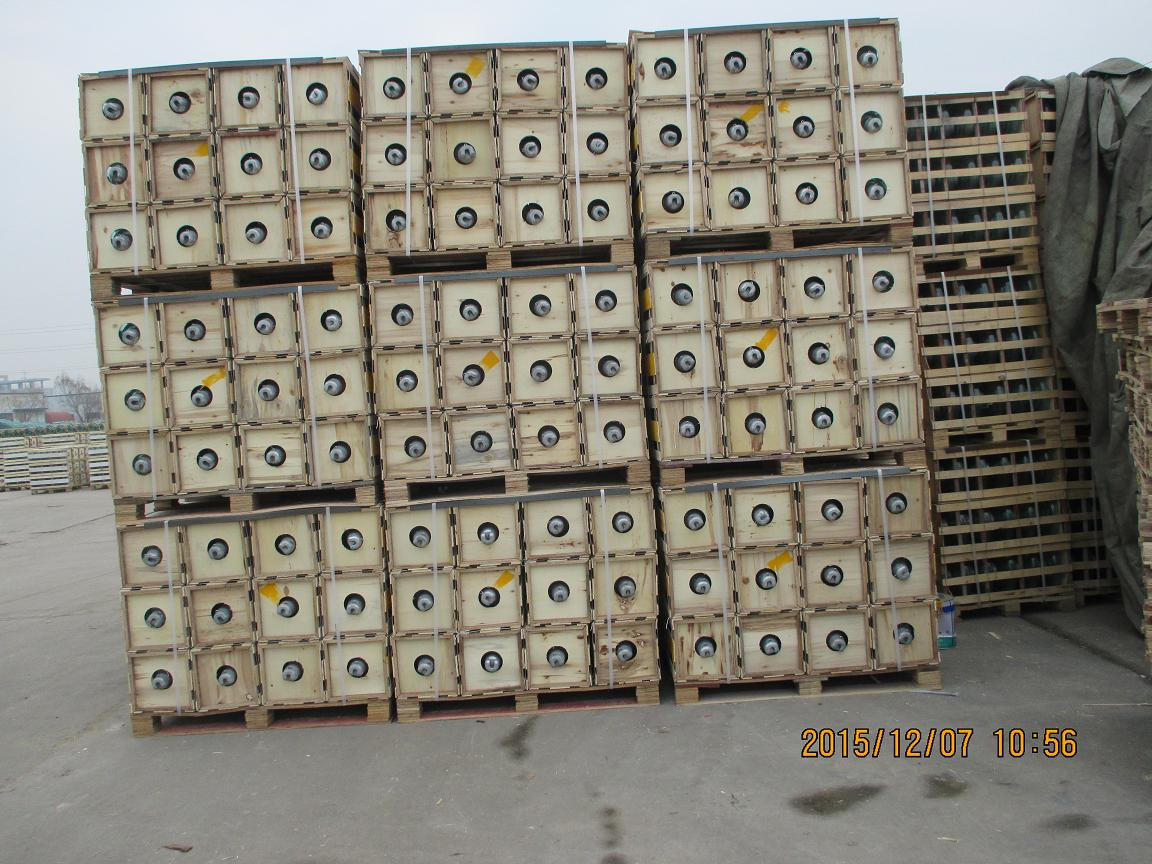

4. Package of the Anti-fog/Anti-Pollution Toughened Glass Insulator: 6Pcs in one ply-wood case or by customer's requirements.

Product Range
(1)10KV-500KV Polymer Insulator,
(2)40KN-420KN Porcelain Insulator
(3)40KN-530KN Toughened Glass Insulator
(4)Various kinds' Pole Line Hardware

Fitting and Material Range
(1) forged-steel metal fitting
(2)casting steel metal fitting
(3) ducitle cast iron metal fitting
(4) Aluminum fitting
(5) copper fitting
(6)stainless steel fitting
(7)Stamping Steel Fitting

The above fitting will be used in polymer insualtor, drop fust-cut, cermaic and glass insulator, line hardware, etc

IEC Standard insulators	U70BP	U70BLP	U120BP	U160BP	U160BLP
Designation	LXWP4-70	LXWP5-70	LXWP4-120	LXWP3-160	LXWP4-160
( mm ) Diameter D	255	255	280	280	280
( mm ) Spacing H	146	146	146	155	170
( mm ) Creepage L	400	450	450	450	450
( mm ) Ball and Socket soupling	16	16	16	20	20
( kN ) Mechanical failing load	70	70	120	160	160
( kN ) Mechanical routine test	35	35	60	80	80
( kV ) Wet power frequency withstand voltage	45	50	50	50	50
( kV ) Dry lightning impulse withstand voltage	110	125	125	125	125
( P.U ) Impulse puncture voltage	2.8	2.8	2.8	2.8	2.8
( kV ) Power frequency puncture voltage	130	130	130	130	130
( µV ) Rodio influence voltage	50	50	50	50	50
( kV ) Corona visual test	18/22	18/22	18/22	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	4.7	5.5	5.5	7.0	7.2

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
