Glass Insulator U210b

Name: Glass Insulator U210b
Brand: all-electronics-online.com
SKU: 694893912
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 8.2-8.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U210B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spl:	210kn
Application:	High-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Glass
Color:	Light Green
Brand:	Cie

Product Description

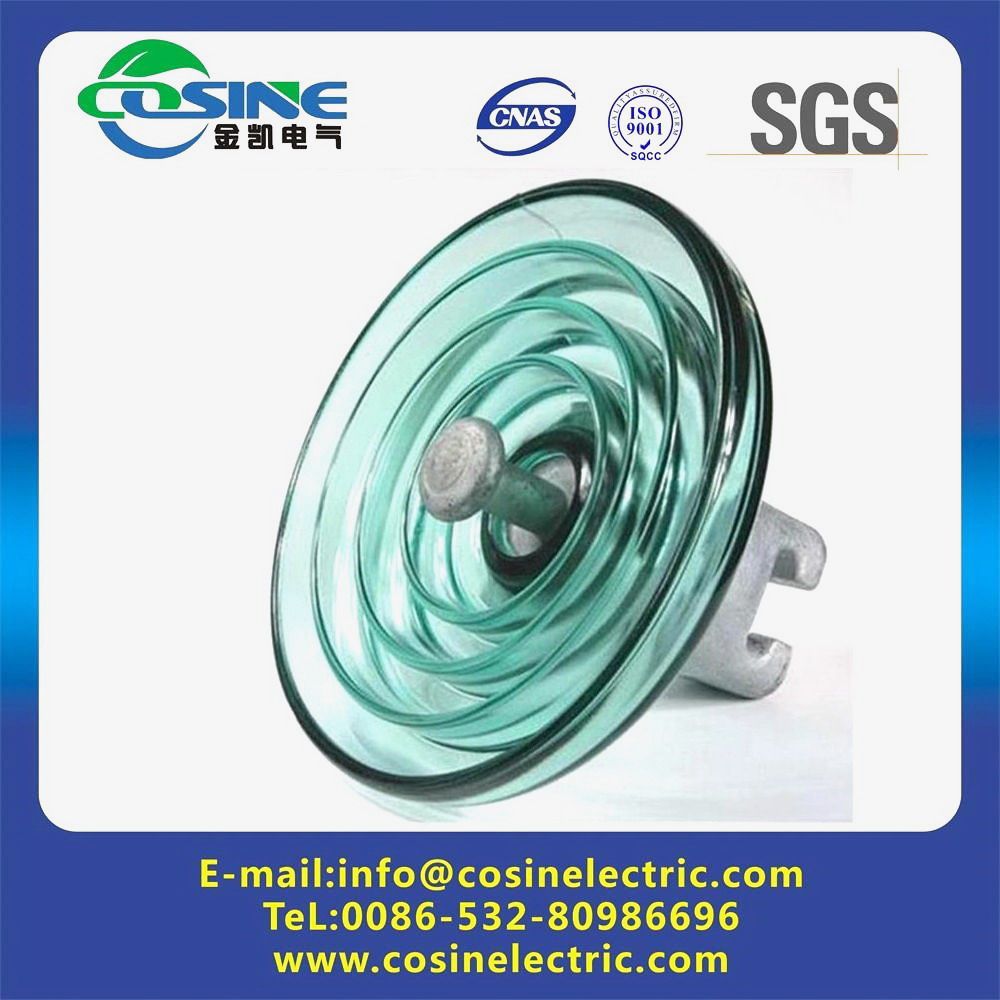

1. Item Name: U210B Toughed Glass Insulator

2. U210B toughed glass insulator is our normal products. We also could produce 40KN, 70KN, 120KN, 210KN, 300KN toughed glass insulator.

3. Package for U120B toughed glass insulator: Export Package. This also could be base on client's requirement.

4. Toughed glass insulator have been exported to Vietnam, Zhile, Iran, Poland, Ukraine and etc.

5. Please contact us freely if you have any interest on toughed glass insulators.

	U210B/170	U210B/170
Diameter D	280mm	280mm
Spacing H	170mm	170mm
Creepage L	400mm	450mm
Socket soupling	20R	20R
Specified mechanical load	210KN	210KN
Power Frequency withstand voltage for Unit	190KV/45KV	190KV/50KV
Lightning impulse withstand voltage for Unit	510KV/110KV	510KV/125KV
Power Frequency Puncture voltage	130KV	130KV
Radio influence voltage	50µV	50µV
Electrical Iron visual test	18KV/22KV	18KV/22KV
Impulse puncture voltage	2.8p.u	2.8p.u
Power Frequency electric arc voltage	0.12s/20kA	0.12s/20kA

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
