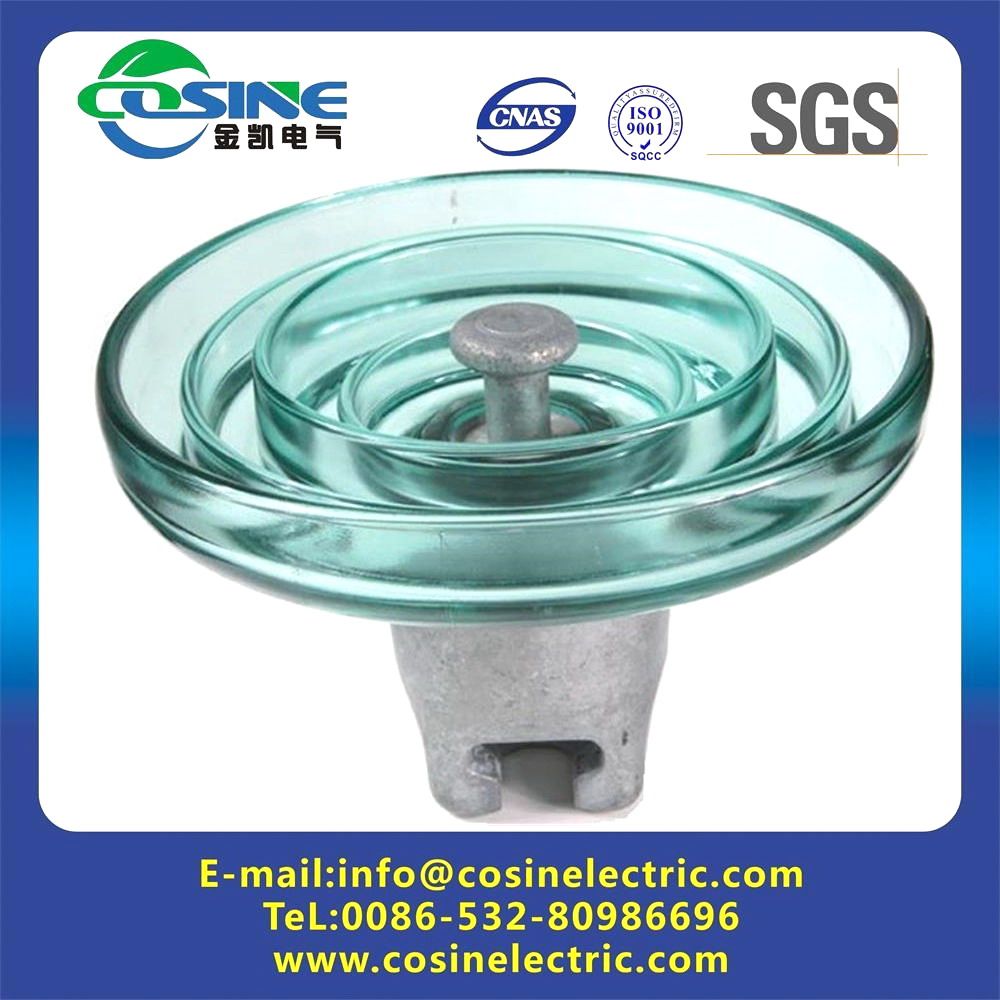

Glass Insulator U70-U300

Name: Glass Insulator U70-U300
Brand: all-electronics-online.com
SKU: 699367892
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	US $ 1-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U40B U70BL U120B U160BL U210B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tests In Accordance With IEC 60383 Stand:	High Voltage Toughened Glass Insulator
Exported Countries:	Vietnam, Iran, Poland,
Packages:	Export Package, Pallet
Application:	Low-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Toughened Glass Insulator
Brand:	Cie or OEM

Product Description

Glass Insulator in accordance with IEC 60383 standard.

1. Name: Glass Insulator

2. Standard of the Glass Insulator: IEC & ANSI &BS standard

3. Mechanical strength range of the Glass Insulator: From 40KN to 550KN

4. Package of the Glass Insulator: 6Pcs in one ply-wood case or by customer's requirements.

5. Technical Data of Glass insulator are as below:

IEC Standard insulators	U70BS	U70BL	U120B	U160B	U160BL	U210BL	U300B	U420B
Designation	LXP2-70	LXP1-70	LXP-120	LXP4-160	LXP-160	LXP4-210	LXP-300	LXP-420
( mm ) Diameter D	255	255	255	280	280	280	320	360
( mm ) Spacing H	127	146	146	146	170	170	198	205
( mm ) Creepage L	320	320	320	400	400	450	485	550
( mm ) Ball and Socket soupling	16	16	16	20	20	20	24	28
( kN ) Mechanical failing load	70	70	120	160	160	210	300	420
( kN ) Mechanical routine test	35	35	60	80	80	105	150	210
( kV ) Wet power frequency withstand voltage	40	40	40	45	50	50	50	50
( kV ) Dry lightning impulse withstand voltage	100	100	100	110	110	125	130	140
( P.U ) Impulse puncture voltage	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8
( kV ) Power frequency puncture voltage	130	130	130	130	130	130	130	130
( µV ) Rodio influence voltage	50	50	50	50	50	50	50	50
( kV ) Corona visual test	18/22	18/22	18/22	18/22	18/22	18/22	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	3.5	3.6	4.2	6.1	6.5	7.3	10.6	16

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

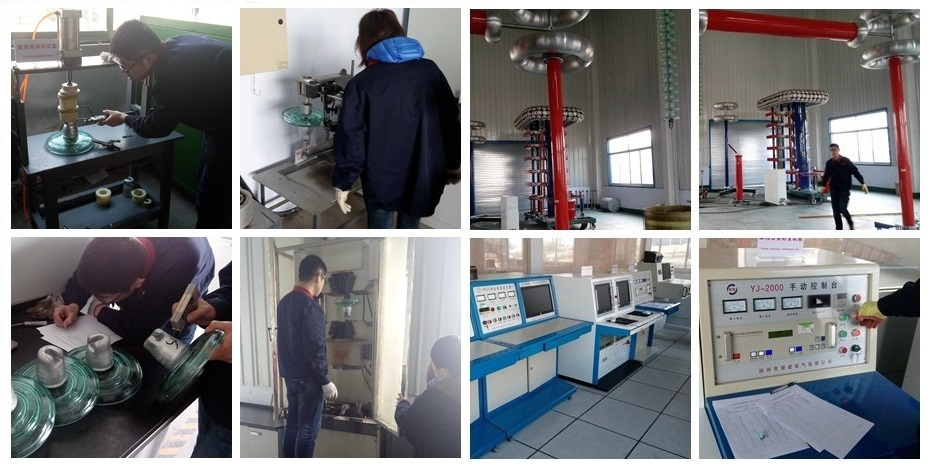

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
