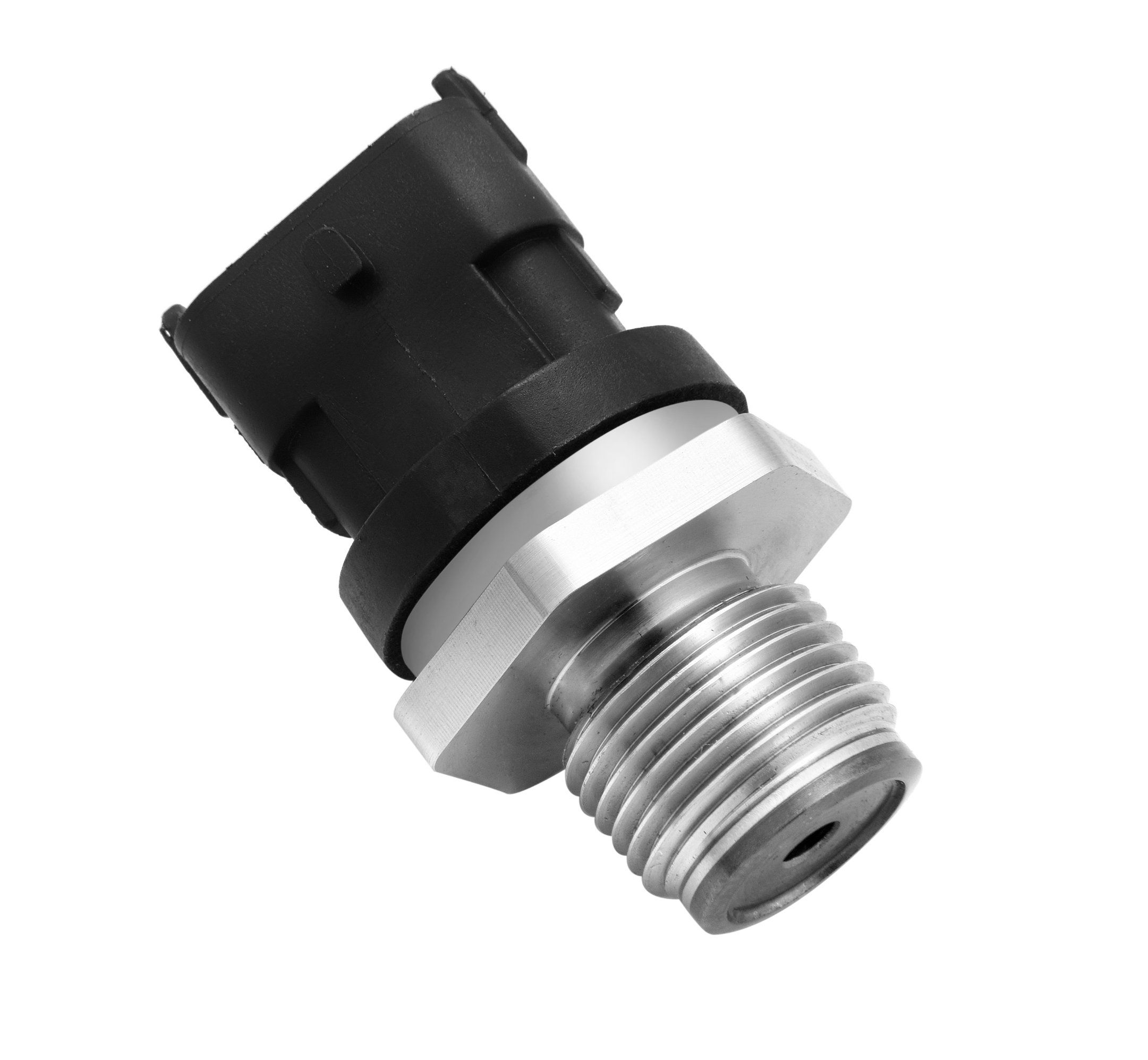

Glass Micro Fused High Pressure Common Rail Pressure Transmitter

Glass Micro Fused High Pressure Common Rail Pressure Transmitter
Price: Negotiable/Piece
Min Order: 2000/Piece
Pay Type: T/T,Western Union
Prod Model: PCM3601
Pressure Reference: Gauge Pressure
Full Scale Error: ±2%F.S.(-40ºC~140ºC)
Output And Supply: 0.5~4.5VDC R/M (5±0.25VDC Supply)
Operating Temp.: -40ºC~140ºC
Storage Temp.: -40ºC~140ºC
Overpressure: 200%F.S.
Burst Pressure: 400%F.S.
Sensing Element Material: 17-4pH
Housing Material: 304
Service Life: ≥5000000 Full-Scale Pressure Cycles
Accuracy Grade: ±1%F.S.
Pressure Range: 0~150MPa, 180MPa, 200MPa
Certification: RoHS, Reach

Product Description

Features

Product overview

PCM3601 series pressure transmitters are applicable to automotive customers. The series uses mature design and technology of mass production and a variety of mechanical connections. It is a cost-effective pressure transmitter to meet different customer needs.

Applications

Diesel ECU control system


Performance parameters

Pressure range0~150MPa, 180MPa, 200MPa
Pressure referenceGauge Pressure
Accuracy±1%F.S. (linearity, hysteresis, repeatability, calibration) @25ºC
Full scale error±2%F.S.(-40ºC~140ºC)
Operating temp.-40ºC~140ºC
Storage temp.-40ºC~140ºC
Overpressure200%F.S.
Burst pressure400%F.S.
Service life≥5000000 full-scale pressure cycles
Vibration resistance10g(50-2000Hz)
Output and supply0.5~4.5VDC R/M (5±0.25VDC supply)
Output response time≤10mS
Reverser voltage-14VDC(voltage output type)
ProtectionIP65
EMC(512MHz-1GHz)100V/m
EMC(1MHz-512MHz)50V/m
Sensing element material17-4PH
Housing materialStainless steel 304
CertificateRoHS, REACH

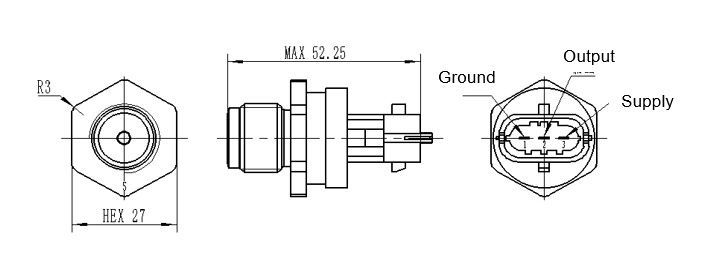

Typical drawing

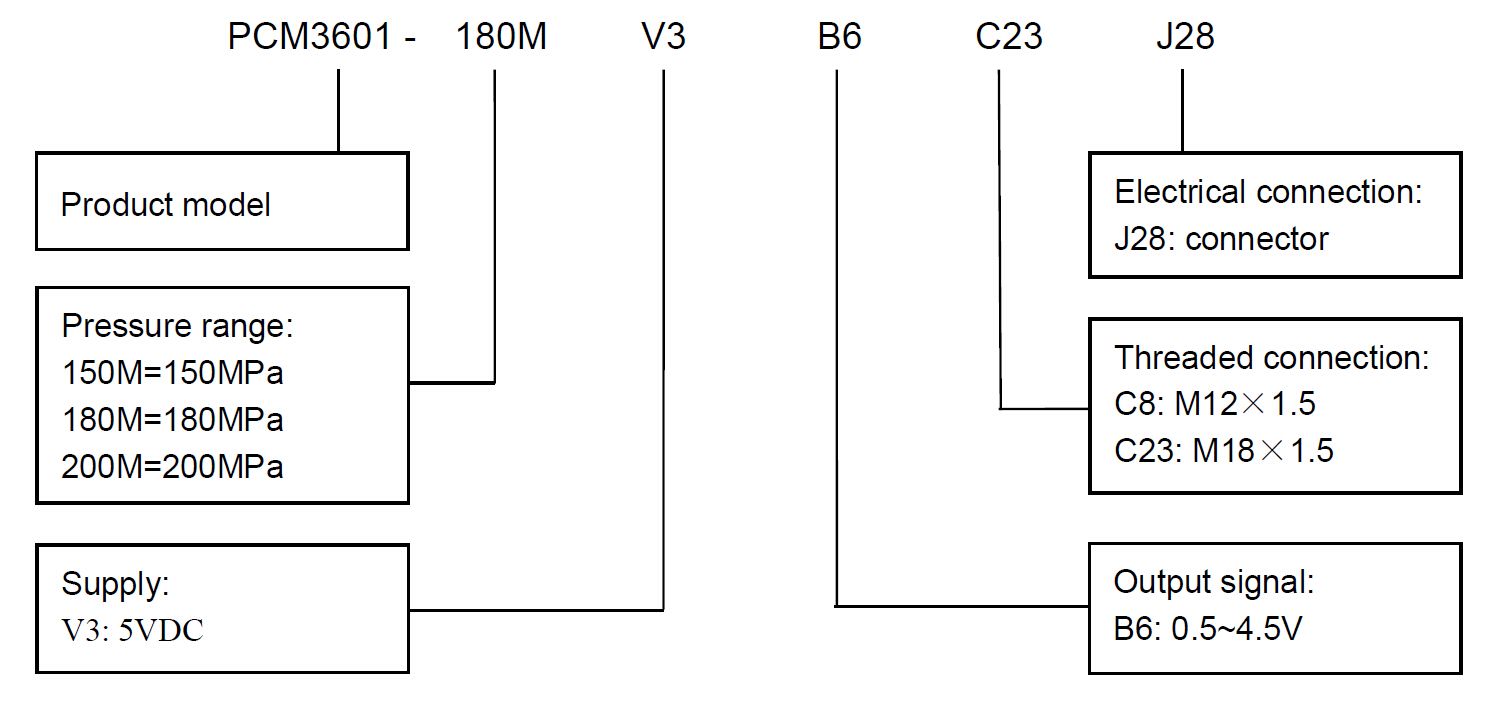

How to order
