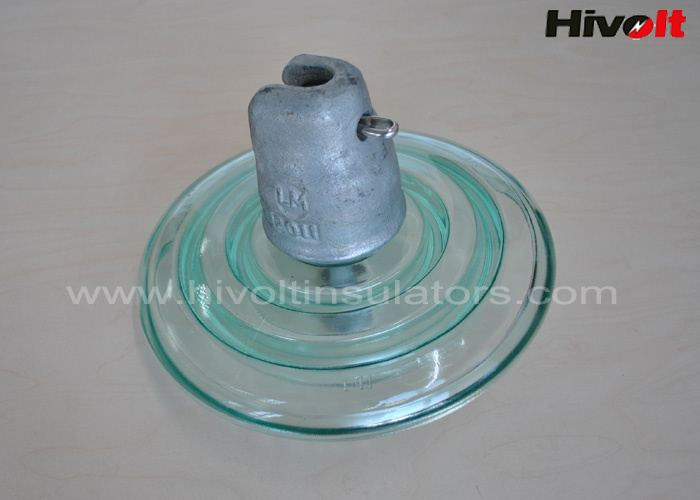

Glass Suspension Disc Insulators

Name: Glass Suspension Disc Insulators
Brand: all-electronics-online.com
SKU: 834682265
Availability: InStock
Rating: 5 (139 reviews)

Price:	US $ 5-15/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U160BS
Unit Spacing:	146mm
Nominal Diameter:	255mm
Creepage Distance:	320mm
Coupling Size:	16b
Application:	Low-voltage
Structure:	Suspension Insulator
Type:	B Type Insulator
Material:	Glass
Color:	Light Green
Brand:	Hivolt

Product Description

We have supplied high quality glass insulators for transmission lines up to 500kV for domestic National Power Grid and overseas market due to high quality and competive price. we exported to UK, South Africa, South America, Ireland etc. If you are interested in this type of Insuators, please feel free to contact with us

Toughened Glass Insulators

Type : fog type & normal type

Class: up to 300 kN (E& M faliing load value)

Standard: we can supply those insulators in IEC, ANSI, AU standards.

we can design insulators according to customers requirements.

Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.

We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
