Global Auto GPS Truck Tracking Device with Free Platform

Prod Model:	X1
Dimension:	85mm*40mm*23mm
GSM:	Quad Bands (850/900/1800/1900MHz)
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	GSM/GPS
Screen Size:	No Screen
Brand:	7-24telematics

Product Description

1. Key Features:

- Web, IOS/Android App Real Time Tracking
- Dual GPS antenna design with internal antenna built-in and MCX connector for external antenna
- Slim and compact design for easy hide inside motorbikes
- Wide Power range: 9-100V DC/1.5A
- I/O Ports: Ignition, Immobilizer, Alarm Siren Output
- Arm/Disarm Operation
- Motor Battery Anti-kill Design
- Alarm alerts: Movement alert, Speed over, Power tamper and Vibration alert,Low battery alert
- OTA

2. Description:

X1 is an IP67 Rated GSM/GPRS/GPS alarm tracking kit for mobile assets with power supply from 9V-100V DC.This small unit is equipped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver, Internal GSM/GPS antenna, vibration sensor and external antenna connector for signal enlarge when necessary.

X1 can be a work alone system, or to be connected with 7-24Telematics platform for different applications.

What's most special for this tracker is Battery Anti-kill design and super low power consumption.

3. Technical Specifications:

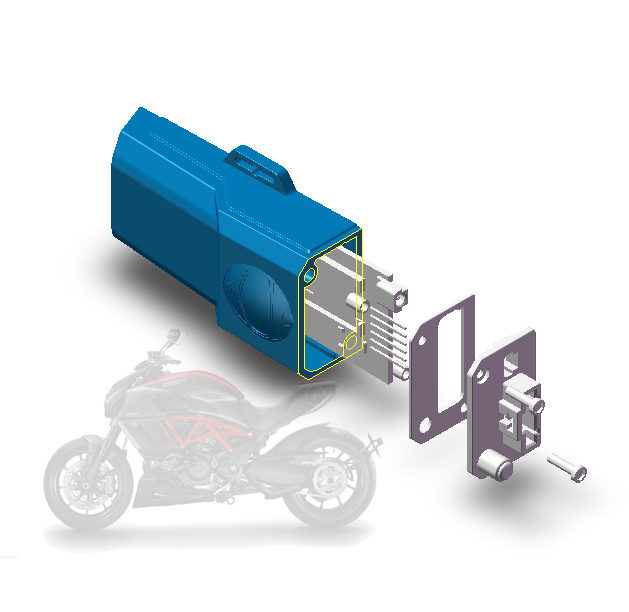

1) Physical Specification:
- Dimension: 40*85*23mm
- Enclosure: ABS
- IP Rating: IP67
- Connector:6PIN

2) Power Supply:
- Voltage: 9-100V DC
- Power Consumption:
70-150mA(All active)
Simple Sleep:<20mA (GSM ON, GPS Off, Alarm trigger active)
Deep Sleep: <5mA (GSM Off, GPS Off, Alarm trigger active)
- Internal Battery:250mAH, 3.7V

3) GPS:
- Antenna: Internal and External Integrated
- Receiver: uBlox chip
- Sensitivity: -162dBm
- TTFF: Cold Starts: 29s/Aided Starts: <1S/ Hot Starts: <1S

4) GSM:
- Antenna: Internal, Quad Bands
- Modem: QUECTEL M26/Quad Bands:850/900/1800/1900MHz

5) Environmental:
- Working Temp.: -20ºC~ +75ºC
- Humidity: 20-95%

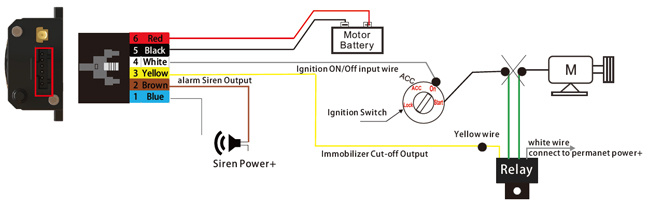

4. Installation Diagram:

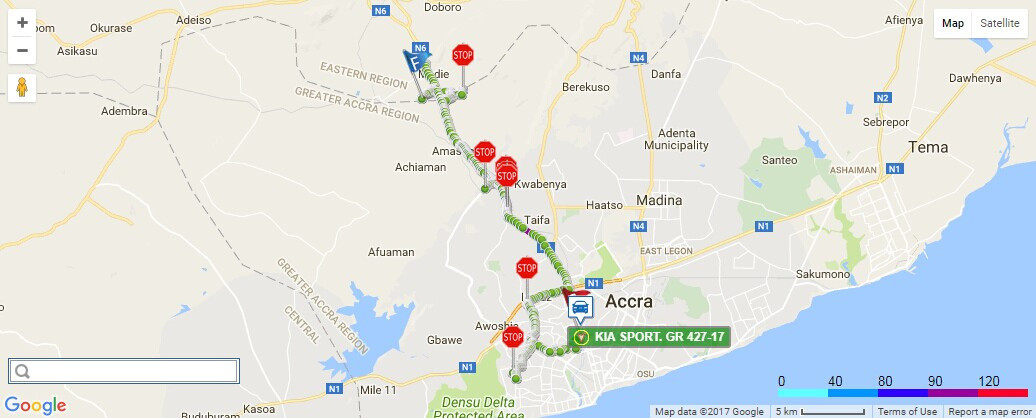

5. History Tracking Trace on Vehicle:
