| Prod Model: |
tk103a |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Size: |
83*54*26mm |
| Weight: |
120g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Voltage: |
12 V -24V |
| Backup Battery: |
Chargeable 3.7V500mAh Polymer Li-Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Model: |
103A |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description

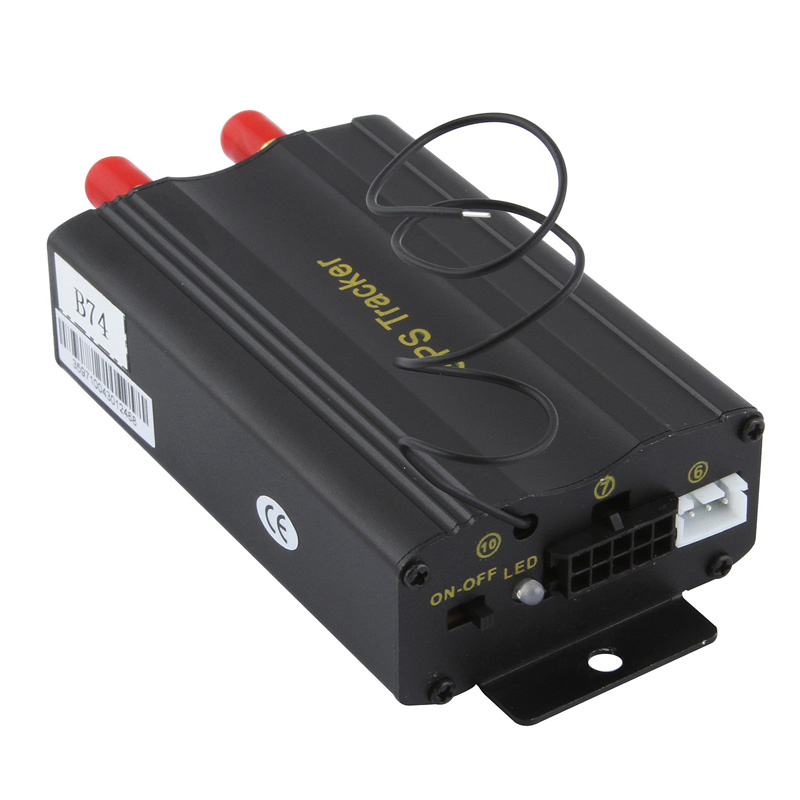

Global Hot Selling Coban GPS Tracker TK103A With Ultra-sonic Fuel Sensor For Fleet Management- It is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
Features:
Automatic Tracking - GPS Tracking Device can be programmed to automatically send a location update in various time Intervals.
Manual Locate - Allows you to manually request the current location of the GPS Device at any time.
Speeding Alert - Automatically marks the date, time, and location if the vehicle travels over the pre-set Speed Limit.
Internal Backup Battery-Power Interrupt Alarm - Automatically sends notification if the main power is cut or disconnected.
Store and Forward - When the GPS Device cannot lock onto a cellular signal, it will store update GPS information and forward the data when it reconnects. The device can store 2000 messages with its internal memory.
Movement Alert- Send all the authorized phone number TXT alerts when the vehicle moves out of the preset area(ie.200m radio).
Stop and resume the vehicle- If your car has any unexpected movement, you can stop the car remotely with your phone and resume it when threats is solved.
Fuel Monitoring- Support normal fuel sensor(drilling needed) and Ultra-sonic fuel sensor( no drilling), prevent any kind of fuel theft or abnormal fuel comsumption(fuel leak).
Voice monitoring- With standard microphone for the GPS tracker, you can voice monitor your vehicle whenever you want, keep your car safe.
LBS Tracking- When the device can not lock up to the GPS signal, for example, entered an underground parking lot, it can track with LBS(local based service) automatically and reconnect to GPS singal when it's found.
ACC working alert- Have a clue when your vehicle is on the move and take action to stop it if it's unexpected.
Door open alarm
Five tracking solutions:
-Manual tracking
-PDA cell phone map tracking
By sending command "address+password", you will get a SMS return with the real street name like "zhiheng industries park, nantou guankou 2nd Rd, nanshan, shenzhen, guangdong, china."

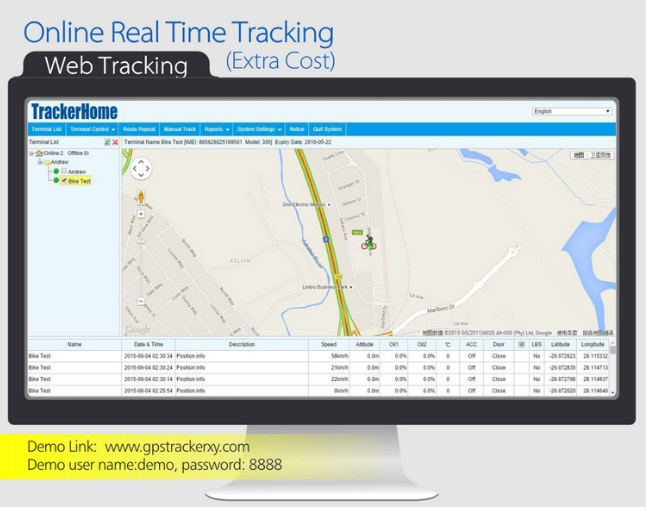

-Web server online tracking www.gpstrackerxy.com
we also supply multi-language(English,Spain,German,Italian.Portuguese,etc) web tracking platform for our customer to realize real-time tracking.
-Local based service(LBS) tracking
Note: This feature can be used normally in most areas according to the signal of GSMnetwork. It may not be available in some areas.
To have more details information about this GPS tracker device, please contact Grace freely.
Facebook: https://www.facebook.com/gpstrackingcoban
Specifications
Content | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Applications
Live Fleet Tracking Systems, engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
Tracking platform: tracker home
Web server: www.gpstrackerxy.com
Mobile App: please search for "tracker home" from the app store.
Faults & the Solutions
Faults | Solutions |
Fail to turn it on | Please check if built-in battery is charged, and power wires connected well. |
No GSM signal | Please check if SIM card installed correctly. Please check if SIM card is GSM network. Don't turn on the PIN code no calls can be diverted Please check if voltage of the power is normal |
No GPS | Please check if GPS antenna connected well, and recommend GPS antenna be installed near the window glass, no metal parts can cover it to make sure better GPS signal reception. |
No reply to SMS command | Password wrong or the format is wrong. |
No reply to calling | Authorized / admin phone number is incorrect |
No alarm message | Authorized / admin phone number has not setup |
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.

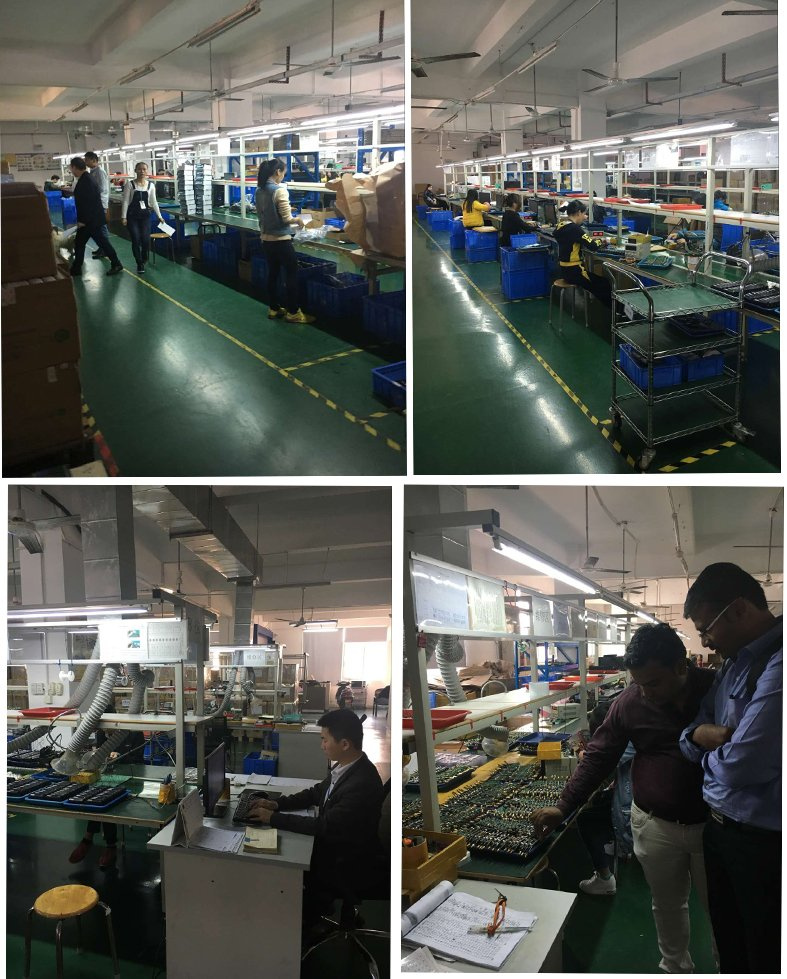

Factory Tour:
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
