Prod Model: |
TK102-B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
64*46*17mm |
Warranty Time: |
1 Year |
Weight: |
50g |
Certificate: |
CE FCC |
Net Work: |
GPS/GSM//GPRS Tracking System/Software |
Standby Time: |
80 Hours |
Shipment: |
DHL/UPS/ FedEx |
Factory Location: |
Shenzhen, China GPS Tracker Supplier |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Mixed Type |
Port Number: |
Multichannel |
Carrier Frequency: |
Dual-Frequency |
Chip: |
SiRF |
Certification: |
ISO14001 |
Model: |
GPS102 |
Screen Size: |
No Screen |
Brand: |
Coban / Baanool |
Product Description
Global Smallest GPS Tracker for Cars, Personal Trackers Tk102-B,car gps tracker with powerful magnetic waterproofTK102 gps trackers features:1, Mini size ( Dimension: 46*64*17mm, Weight: 50g ).
2. Waterproof + Magnetic Shell.
3. Built-in antenna, built-in MIC for voice monitoring.
4. Can setup 5 authorized numbers.
5. SOS panic button.
6. Geofence, movement/over speed/low battery alarm/Shock alarm.
7. Built-in 1MB memory, store 16, 000 Tracking info.
8. Support 8GB MicroSD card memory.
9. Auto track at time interval.
10. Get absolute address with street name by SMS.
11. Free pc-based tracking software.
12. Online web-based tracking platform www.gpstrackerxy.com.

Advanced Functions:1. Support up to 8GB SDcard.
2. Configure Parameters/GPRS via USB directly
3. Multiple sleeping modes to save power: Sleep by time, Sleep by shock, Deep sleep function, wake up at specific time, etc.
5. Forward the third parties' message
6. Checking sim card balance.
7. Setup monitor center number
8. TCP/UDP switch
9. Less GPRS traffic
10. GPS drift suppression
Applying directions:1. Car/vehicle/motorcycle ( optional wire charger )
2. Protect kids / the elderly / the disabled / pets etc
3. Manage personnel

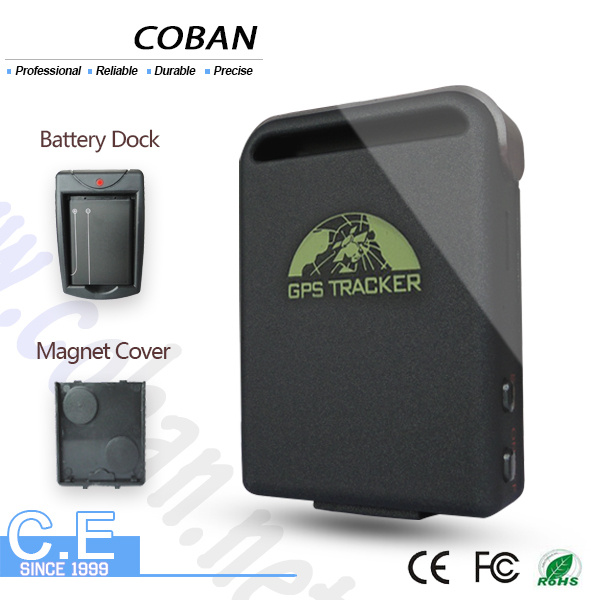

GPS102 Standard Package Content:1 x GPS unit
2 x batteries
1 x AC adapter
1 x battery dock
1 x magnetic battery cover
1 x water proof bag
1 x user manual
1 X USB cable
Content | Specs. |
Dim. | 64mmx 46mmx 17mm(1.8" *2.5" *0.65" ) |
Weight | 50g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS chip | SIRF3 chip |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
Car charger | 12_ 24V input 5V output |
Wall charger | 110-220V input 5V output |
Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
Standby | 80hours |
Storage Temp. | -40° C to +85° C |
Operation Temp. | -20° C to +55° C |
Humidity | 5%--95% non-condensing |

Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
