Global Wholesale High Precision AC Measurement Clamp on Current Probe

Name: Global Wholesale High Precision AC Measurement Clamp on Current Probe
Brand: all-electronics-online.com
SKU: 721505872
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 200/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8A1
Ratio:	1000:1 or 2000:1 (Customized)
Accuracy Class:	0.1%
Primary Current:	0 - 10A AC
Secondary Current:	0 - 10mA AC (Customized)
Output:	2.5 Meter Cable with D01 Connector
Max. Cont. Input Current:	12A
Max. Voltage Not Insulated Conductors:	600 V
Frequency Range:	40Hz-2000Hz
Holding Wire Diameter (mm):	8
Over Voltage Category:	Cat III 600V
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

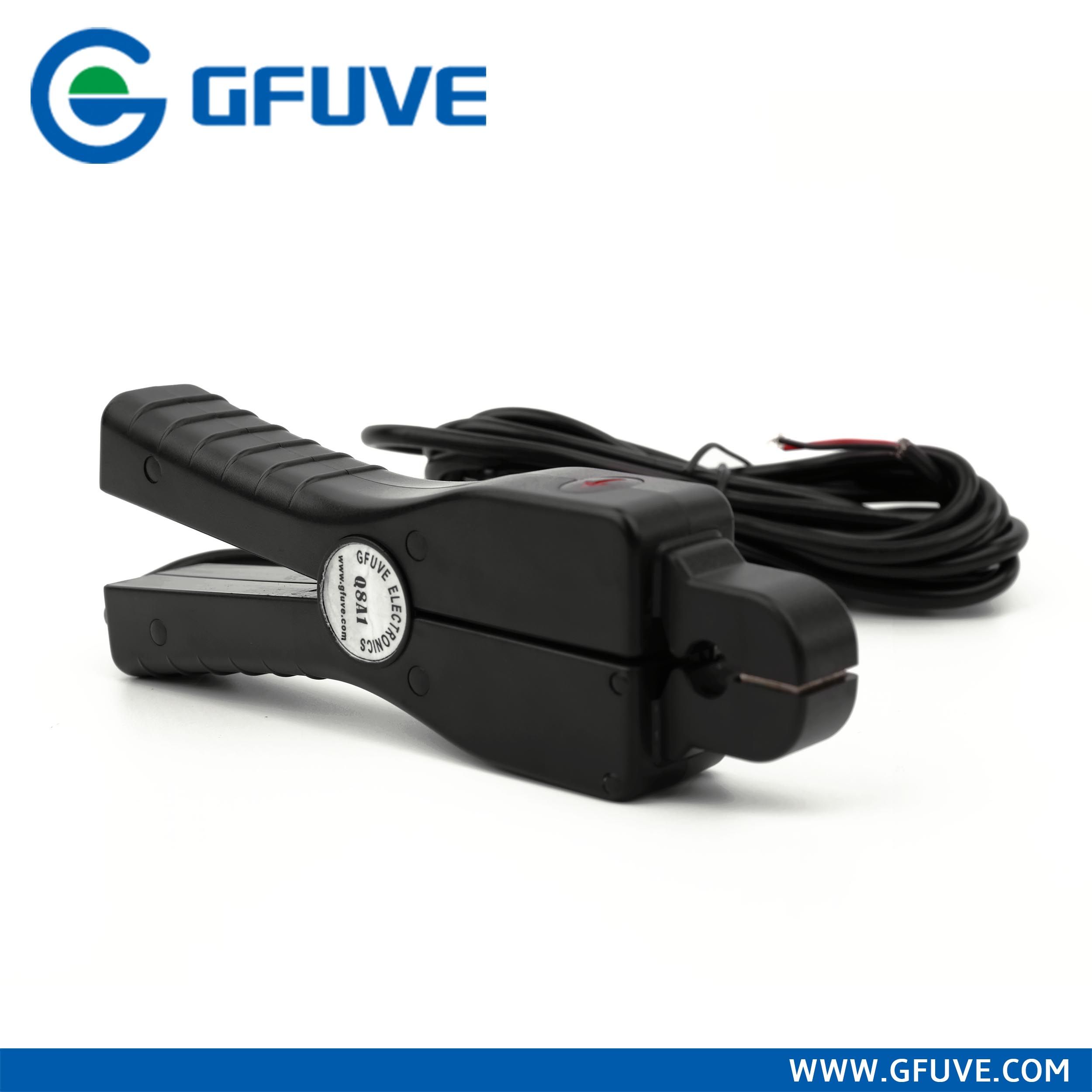

The model Q8A1 current probe is based on AC transformer technology for use in measurement of AC current, it is suitable for 5A, 10A cable online measurement.

Applications	Features
1. Electric energy meter calibrator (on site) 2. Double clamp type ground resistance tester 3. Double clamp type phase volt-ampere meter 4. Digital multi-meter 5. Multi-function energy meter 6. Oscilloscope 7. Power quality analyzer 8. Matched instruments 9. Calibration instrument on site	1. Measurement range of 1mA to 10A AC 2. Small, compact size 3. Improved ergonomic design and easy operation 4. Low phase shift for power measurement 5. With load capacity ≤4Ω 6. Output model: Lead output(2.5m)

More informaction of the high quality products, please click Our company website:
http://gfuve.com/

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
