| Prod Model: |
FU-32 |
| Fu-32: |
Ndoor Split Core Current Transformer |
| Standards: |
IEC/En60044-1 & IEC61010-1 & IEC61869-2&ANSI C57. |
| Ratio: |
400: 5 or 200:5 , Customized |
| Overload Withstand: |
1.2 Times Rated Current Continuously |
| Accuracy: |
0.2%, 0.5 %, 1% |
| System Voltage: |
720V(0.72kv) |
| Burden: |
2.5va |
| Frequency Range: |
40 Hz-500 Hz |
| Dielectric Strength: |
3kv 50Hz/60Hz at 1 Minute |
| Weight (G): |
700 |
| Application: |
Position Sensor |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

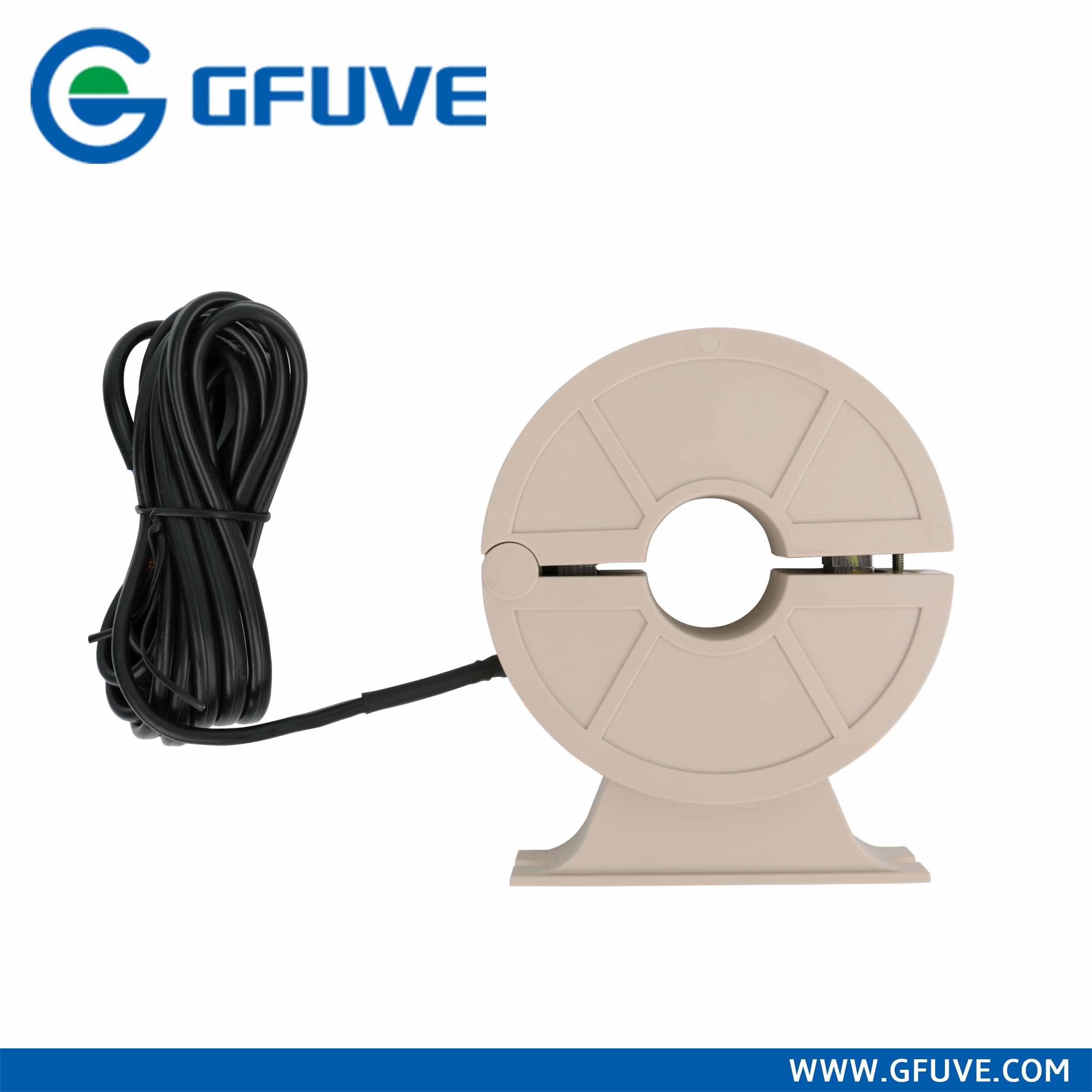

FU-32 200/5a Indoor Clamp on Split Core Current Transformer ct
The GFUVE FU-series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.
Features
Most cost-effective
Faster installation
Safe and easy installations
High accuracy 0.5
Holding wire diameter: φ32mm
Ratio's ranging from 60/1A to 600/5A
CE, UL
Parameters
| Technical parameters |
|---|
| Standards | IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13 |
| Ratio | 400: 5 or 200:5 , customized |
| Nominal input current(Primary current) | 100A/150A/200A/300A/400A/500A/600A |
| Overload withstand | 1.2 times rated current continuously |
| Accuracy | 0.2%, 0.5 %, 1%/60Hz |
| System Voltage | 720V(0.72kV) |
| Output signal | 1A or 5A
333mV AC or 100mV-2V optional |
| Burden | 2.5VA |
| Frequency range | 40 Hz-500 Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Output | Standard 2.5 meter cable |
| Max. jaw opening | 32 mm |
| Mechanical parameters |
|---|
| Dimensions (W×D×H) (mm) | 110mm×130mm×41mm |
| Weight(g) | 700 |
| Operating conditions |
|---|
| Operating temperature | -25°C to +55°C |
| Relative Humidity | 0-85% non-condensing |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and
radioactive gas in the air. Permission of long-term
operation under rated current. |
