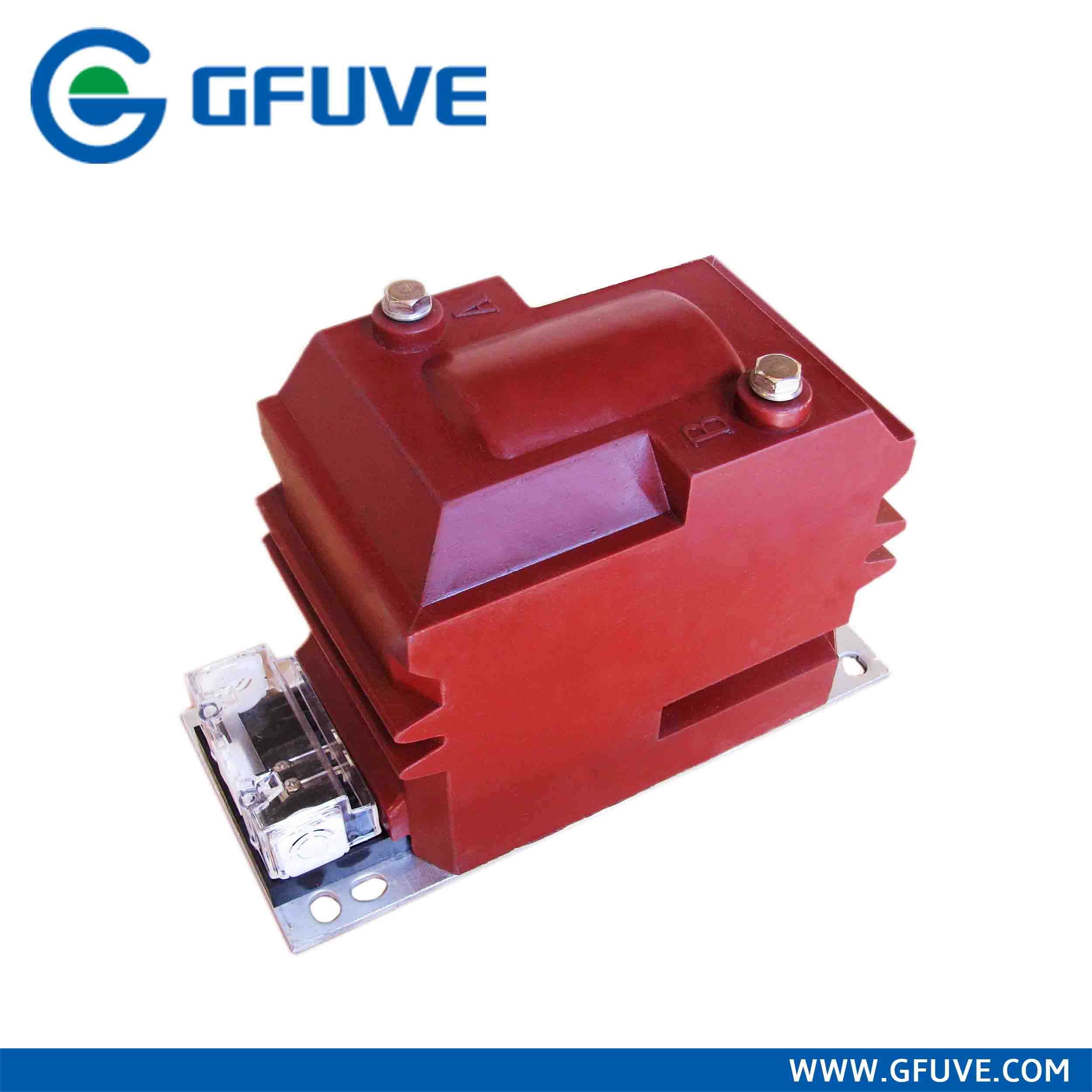

Globle Wholesale Gfjdz1055-10A1 Voltage Transformer

Prod Model:	GFJDZ1055-10A1
Gfjdz1055-10A1:	Best Voltage Transformer
Rated Voltage:	10kv, 6kv
Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Load:	≤150va
Rated Frequency:	50Hz or 60Hz
Cosø:	0.8 (Lag)
Phase Number:	Single
Material:	Epoxy Resin
Operating Temperature:	-25°c to +55°c
Daily Average Temp:	<+40°c
Application:	Position Sensor
Type:	Voltage Transformer
Phase:	Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

PRODUCT INTRODUCTION
Globle wholesale GFJDZ1055-10A1 Voltage Transformer
This model GFJDZ1055-10A1 potential instrument transformers are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 36kV and below. They are used in indoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

Parameters

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Voltage	10KV,6KV
Rated load	≤150VA
Rated frequency	50Hz or 60Hz
Cosø	0.8 (lag)
Phase number	Single
Rated insulation level	12/42/75KV, 7.2/32/60KV
Class of pollution	II
Mechanical parameters
Material	Epoxy resin
Weight (kg)	25
Operating conditions
Operating temperature	-25°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
